1976 Yamaha LB802A (LB802AC) Crank-Piston Diagram

← All diagrams

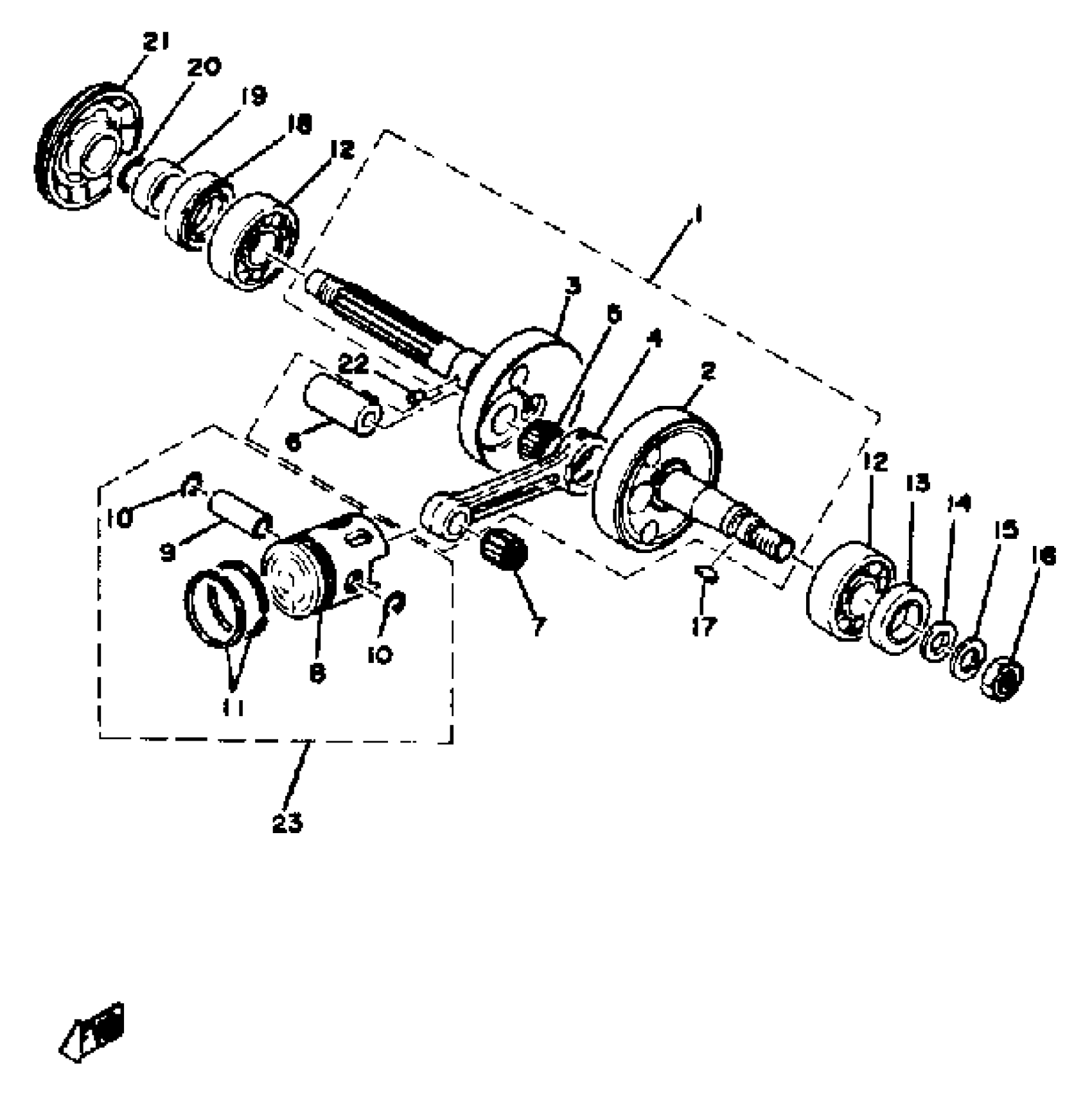

Find the part on the Crank-Piston diagram for your 1976 Yamaha LB802A (LB802AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha LB802A (LB802AC) Crank-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(530-11400-02-00)

1
Out of stock

2

CRANK 1

(527-11412-03-00)

1
Out of stock

3

CRANK 2

(530-11422-01-00)

1
Out of stock

4

ROD, CONNECTING

3R1-11651-01-00

1
Out of stock

5

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

1
Out of stock

6

PIN, CRANK 1

257-11681-10-00

1
Out of stock

7

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

1

$30.25

In stock

8

PISTON STD

(2F7-11631-00-96)

1
Out of stock

8

PISTON 1 O/S 0.25

(2F7-11635-00-00)

1
Out of stock

8

PISTON 2 O/S 0.50

(2F7-11636-00-00)

1
Out of stock

8

PISTON 3 O/S 0.75

(2F7-11637-00-00)

1
Out of stock

8

PISTON 4 O/S 1.00

(2F7-11638-00-00)

1
Out of stock

8

PISTON (STD) 0.96MM

367-11631-11-96

—

$124.97

In stock

8

PISTON (1ST O/S)

367-11635-11-00

—

$128.06

In stock

8

PISTON (STD) 2ND O/S

367-11636-11-00

—

$124.40

In stock

8

PISTON 3 O/S 0.75

367-11637-11-00

1
Out of stock

8

PISTON 4 O/S 1.00

367-11638-11-00

1
Out of stock

9

PIN, PISTON

527-11633-00-00

—
Out of stock

10

CIRCLIP 132116340000

93450-13022-00

—
Out of stock

11

PISTON RING SET (STD)

367-11610-00-00

—

$55.88

In stock

11

PISTON RINGSET 1ST

367-11610-10-00

1
Out of stock

11

PISTON RING SET (2NDO/S)

367-11610-20-00

—

$51.49

In stock

11

PISTON RINGSET 3RD

367-11610-30-00

1
Out of stock

11

PISTON RINGSET 4TH

367-11610-40-00

1
Out of stock

12

BEARING(1GJ)

93306-20458-00

—

$36.19

In stock

13

OIL SEAL (20X35X7-136)

93102-20009-00

—

$9.10

In stock

14

WASHER (492)

90201-12535-00

—
Out of stock

15

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

16

NUT, HEXAGON 98801-12200

90170-12175-00

—

$7.69

In stock

17

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock

18

OIL SEAL (28X40X8-132)

93103-28011-00

—

$12.05

In stock

19

COLLAR (132-16136-01)

90387-20345-00

1
Out of stock

20

O-RING(3KX)

93210-180A6-00

—

$4.78

In stock

21

GEAR, DRIVE

296-13178-02-00

—

$34.83

In stock

22

. PIN, DOWEL

93603-08072-00

1
Out of stock

23

PISTON KIT 1ST

367-11630-61-00

1
Out of stock

23

PISTON KIT 2ND

367-11630-71-00

1
Out of stock

23

PISTON (STD) 0.96MM

367-11631-11-96

—

$124.97

In stock
← Crank-Piston Crankcase Cover →
