1976 Yamaha LB802A (LB802AC) Kick - Starter Diagram

← All diagrams

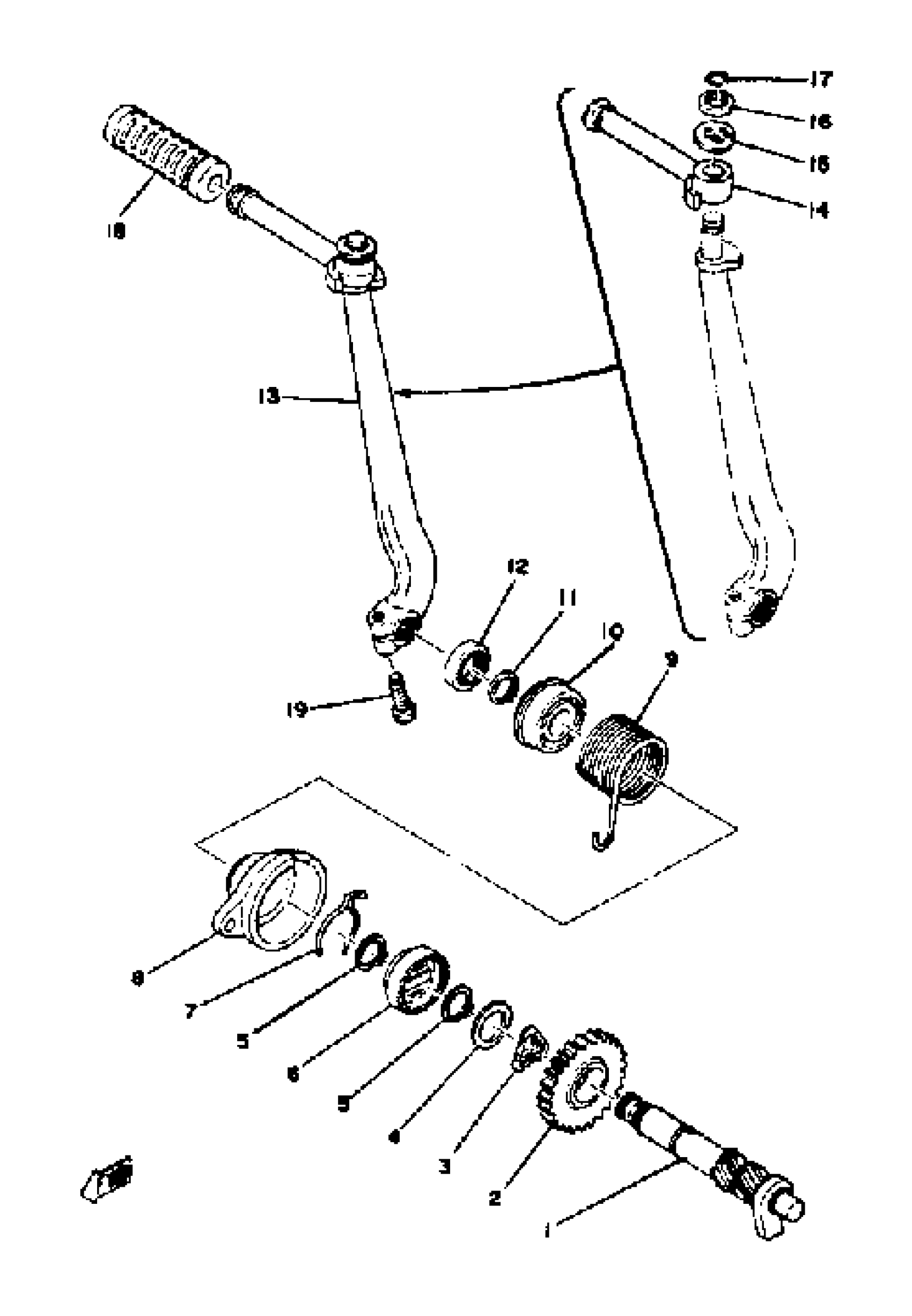

Find the part on the Kick - Starter diagram for your 1976 Yamaha LB802A (LB802AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha LB802A (LB802AC) Kick - Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSY

296-15660-00-00

—

$212.11

In stock

2

GEAR, KICK

384-15641-00-00

1
Out of stock

3

WASHER WAVE 296156430000

90206-19027-00

1

$5.78

In stock

4

SHIM

296-15644-00-00

1

$5.43

In stock

5

CIRCLIP(1EY)

99009-19400-00

1

$6.17

In stock

6

WHEEL, RATCHET

296-15671-00-00

—

$47.12

In stock

7

CLIP 296156870000

90468-26046-00

1
Out of stock

8

GUIDE, SPRING

1W7-15664-01-00

—

$10.00

In stock

9

SPRING TORSION 304156650000

90508-26136-00

—
Out of stock

10

COVER, KICK SPRING

132-15676-01-00

—

$9.02

In stock

10

COVER, SPRING

1W7-15676-00-00

1
Out of stock

11

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

12

OIL SEAL (15X26X6-102)

93109-15001-00

1

$7.42

In stock

13

KICK CRANK ASSY

439-15620-04-00

1

$111.86

In stock

14

LEVER, KICK

(214-15612-09-00)

1
Out of stock

15

SPRING, COMPRESSION (5L1)

90504-18031-00

—

$7.66

In stock

16

WASHER,SPEC'L SHAPE

90209-10210-00

1
Out of stock

17

. CIRCLIP, OUTER

93440-10028-00

1
Out of stock

18

COVER, KICK LEVER

156-15618-01-00

—

$6.43

In stock

19

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

19

BOLT(3DM)

97024-06020-00

—

$6.17

In stock
