1976 Yamaha LB802A (LB802AC) Exhaust Diagram

← All diagrams

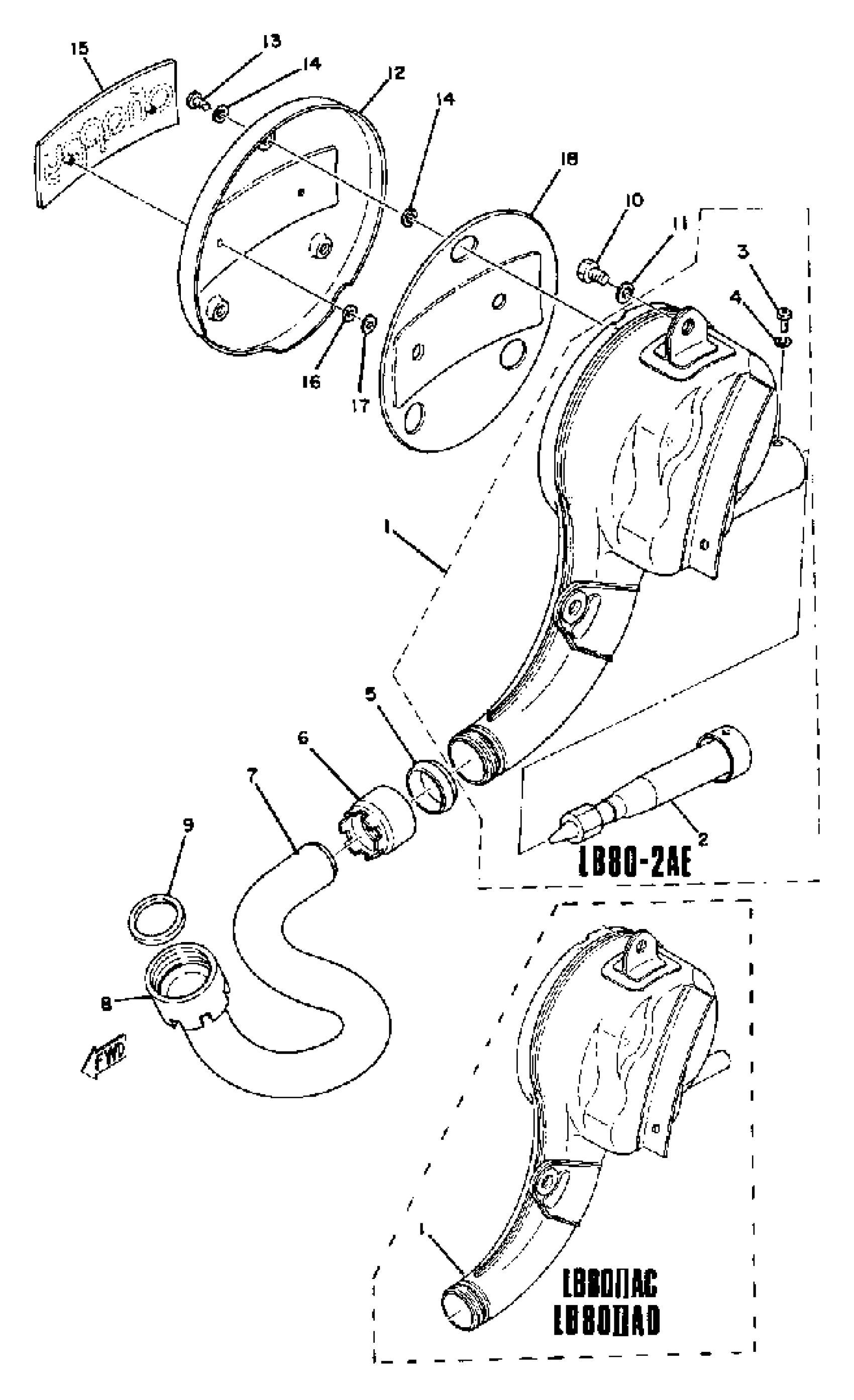

Find the part on the Exhaust diagram for your 1976 Yamaha LB802A (LB802AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha LB802A (LB802AC) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MUFFLER ASSEMBLY L

1F7-14710-00-00

1
Out of stock

1

MUFFLER ASSEMBLY L

439-14710-01-00

1
Out of stock

2

PIPE, OUTLET

(1F7-14752-00-00)

1
Out of stock

3

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

GASKET, MUFFLER

3NA-14714-01-00

—

$21.72

In stock

6

NUT, MUFFLER JOINT

395-14713-00-00

—
Out of stock

7

PIPE, EXHAUST L

439-14611-03-00

1
Out of stock

8

UNAVAILABLE IN PRICE BOOK

164-14612-00-00

1
Out of stock

8

NUT, RING

1L4-14612-00-00

1
Out of stock

9

GASKET, EXHAUST PIPE

3MT-14613-00-00

1
Out of stock

10

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

11

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

11

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

12

PROTECTOR, MUFFLER

439-14718-01-00

1

$56.57

In stock

13

SCREW, BIND(1JK)

98980-06010-00

—
Out of stock

14

WASHER, PLATE(3MB)

90202-05187-00

—

$1.32

In stock

15

EMBLEM, PROTECTOR

439-14729-00-00

—

$51.86

In stock

16

WASHER PLATE 174283160000

90202-04003-00

—

$6.69

In stock
