1978 Yamaha LB50P (LB50PE) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1978 Yamaha LB50P (LB50PE), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

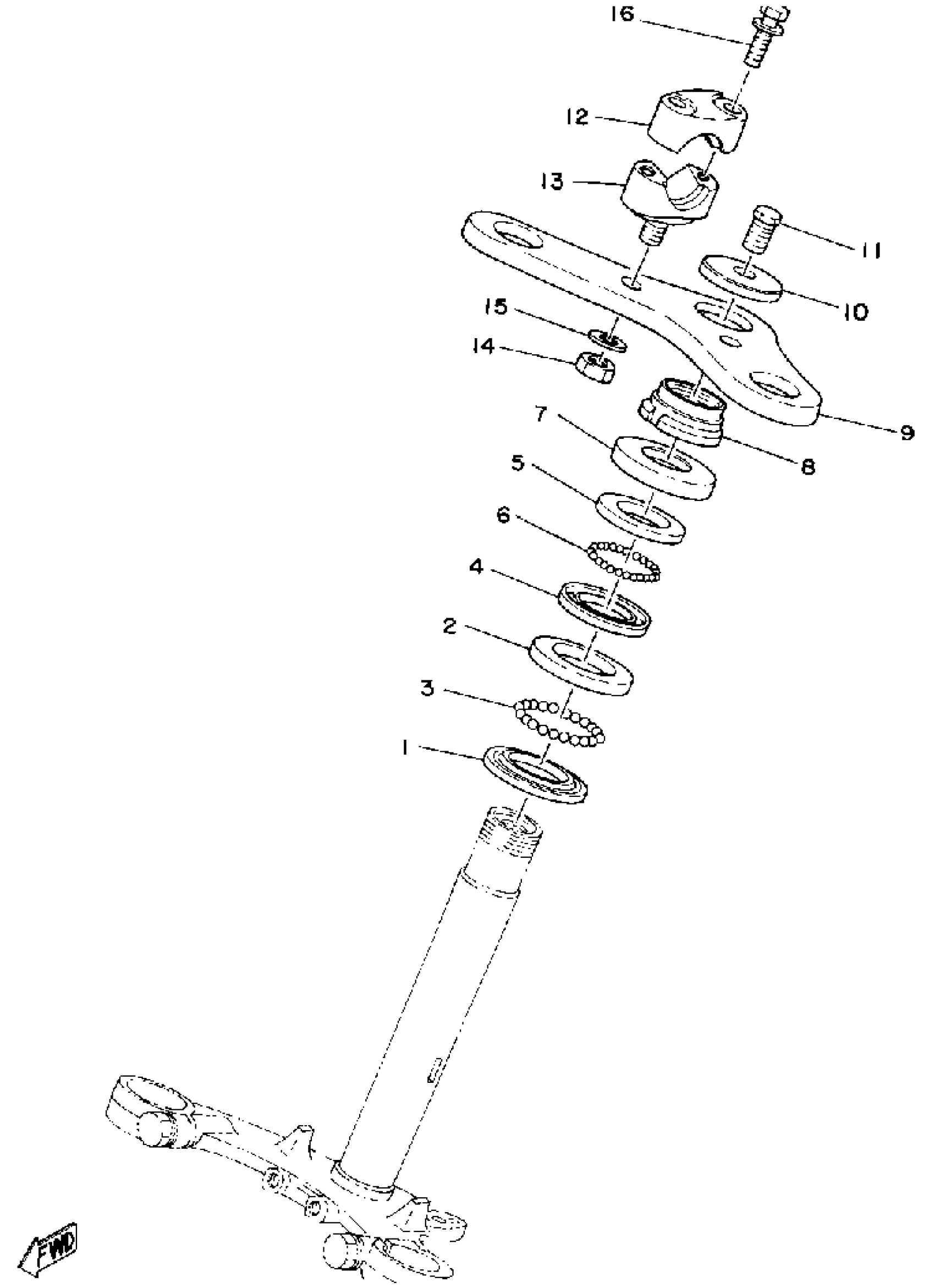

1978 Yamaha LB50P (LB50PE) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

3

BALL

93501-04011-00

1
Out of stock

4

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

5

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

6

BALL

93503-16003-00

1

$2.14

In stock

7

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

8

NUT (122-23453-00)

90179-25051-00

1
Out of stock

9

CROWN, HANDLE

(439-23435-01-93)

1
Out of stock

10

WASHER (1YJ)

90209-10160-00

1

$5.68

In stock

11

BOLT 1222345100

90105-10006-00

1

$9.17

In stock

12

HOLDER, HANDLE UPPER

462-23441-01-00

—
Out of stock

13

HOLDER, HANDLE UNDER

462-23442-00-98

—
Out of stock

14

NUT(3BM)

95314-10600-00

1

$1.74

In stock

15

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

16

BOLT(3RV)

97014-06035-00

—

$1.54

In stock
