1978 Yamaha LB50P (LB50PE) Rear Wheel Diagram

← All diagrams

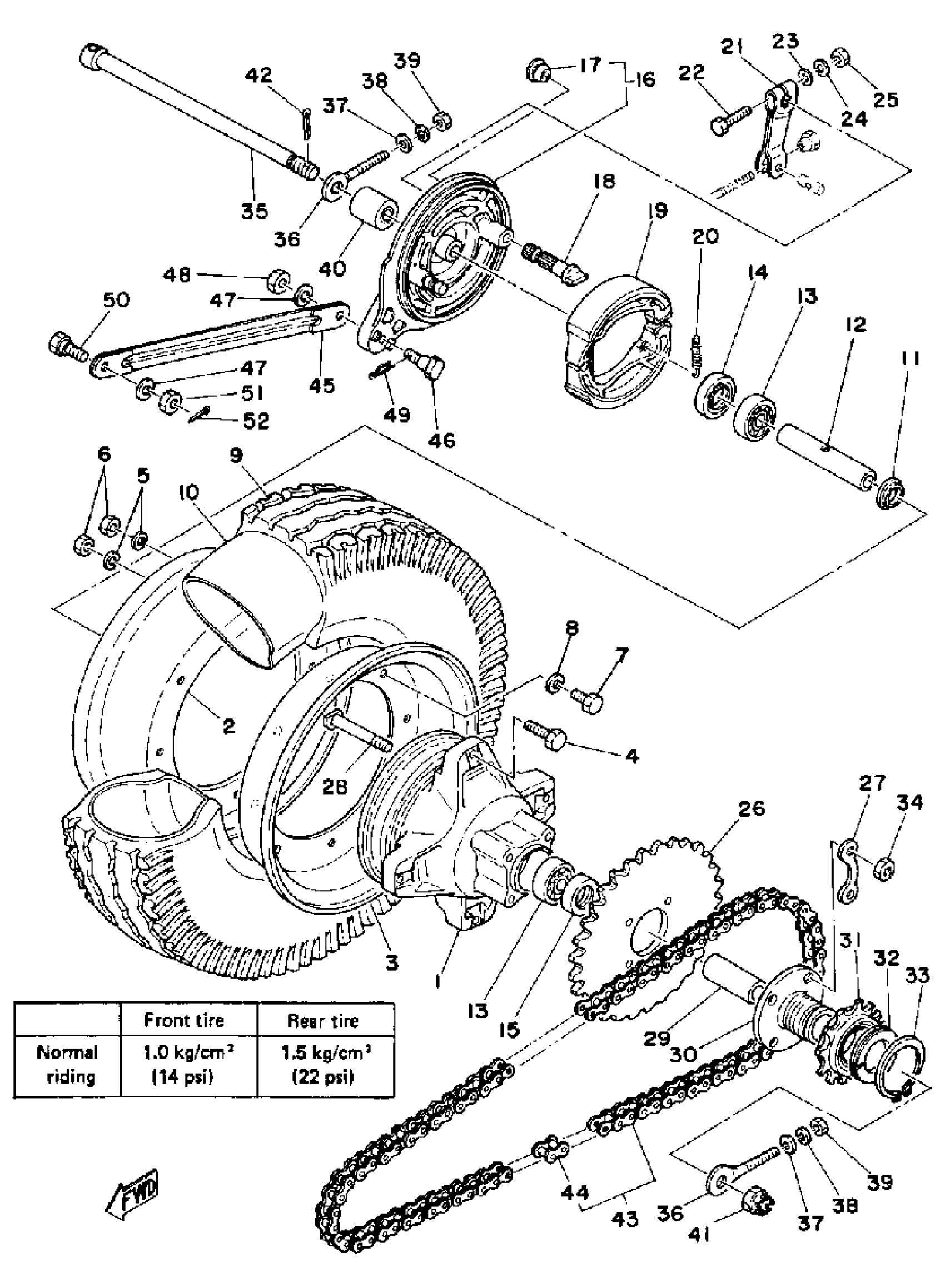

Find the part on the Rear Wheel diagram for your 1978 Yamaha LB50P (LB50PE), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha LB50P (LB50PE) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(439-25311-00-00)

1
Out of stock

2

PANEL, WHEEL 1

1L4-25337-00-00

—

$41.85

In stock

3

PANEL, WHEEL 2

1L4-25347-00-00

—

$41.85

In stock

4

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

NUT(6L2)

95333-08600-00

1

$3.20

In stock

7

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

8

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

9

TIRE (5F5)

94140-08747-00

1

$144.49

In stock

10

TUBE

94240-08136-00

1
Out of stock

11

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

12

SPACER (439-25317-00)

90560-12110-00

1
Out of stock

13

BEARING

93306-30102-00

1
Out of stock

14

OIL SEAL (21X37X7-102)

93104-21016-00

1
Out of stock

15

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

16

BRAKE SHOE PLT ASSEMBLY

(339-25320-10-00)

1
Out of stock

17

GROMMET (397)

90480-10068-00

—

$6.77

In stock

18

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

19

BRAKE SHOE KIT

2JL-W253E-20-00

—

$25.53

In stock

20

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

21

LEVER, CAMSHAFT

102-25355-01-00

1
Out of stock

22

BOLT, HEXAGON (538)

90101-06278-00

—

$1.82

In stock

23

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

26

SPROCKET, DRIVN 32T

109-25432-10-00

1
Out of stock

26

SPROCKET, DRIVN 32T

109-25432-10-00

1
Out of stock

26

SPROCKET, DRVN 33T

109-25433-10-00

1
Out of stock

27

WASHER

2AL-25412-00-00

—
Out of stock

28

BOLT

90109-08411-00

1
Out of stock

29

COLLAR

90387-12502-00

1
Out of stock

30

BOSS

(550-25521-01-00)

1
Out of stock

31

FREE WHEEL ASSEMBLY

34N-25510-00-00

1
Out of stock

32

HOLDER

(550-25522-00-00)

1
Out of stock

33

CIRCLIP,S-TYPE

93410-48020-00

—

$4.35

In stock

34

NUT, HEXAGON (509)

90170-08158-00

—

$1.10

In stock

35

AXLE, WHEEL

550-25381-00-00

1
Out of stock

36

PULLER, CHAIN

3AC-2538G-10-00

—

$11.72

In stock

37

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

38

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

39

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

40

COLLAR 102253830000

90387-12412-00

—

$13.75

In stock

41

NUT CASTLE(481)

90171-12005-00

—

$7.35

In stock

42

PIN, COTTER

91490-30030-00

—

$7.15

In stock

43

CHAIN, DRIVE

9Y580-52095-00

—

$42.26

In stock

44

JOINT, CHAIN (29A)

94680-52001-00

—

$2.77

In stock

45

BAR, TENSION

353-25371-00-00

1
Out of stock

46

BOLT 1022537300

90109-08183-00

—

$6.18

In stock

47

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

48

. NUT

95380-08700-00

1

$3.07

In stock

49

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

50

BOLT (183-25378-00)

90109-08368-00

—

$7.00

In stock

51

NUT, SPECIAL SHAPE

90179-08288-00

1
Out of stock

52

PIN, COTTER

91490-20025-00

—

$1.31

In stock
