1978 Yamaha LB50P (LB50PE) OIL Pump Diagram

← All diagrams

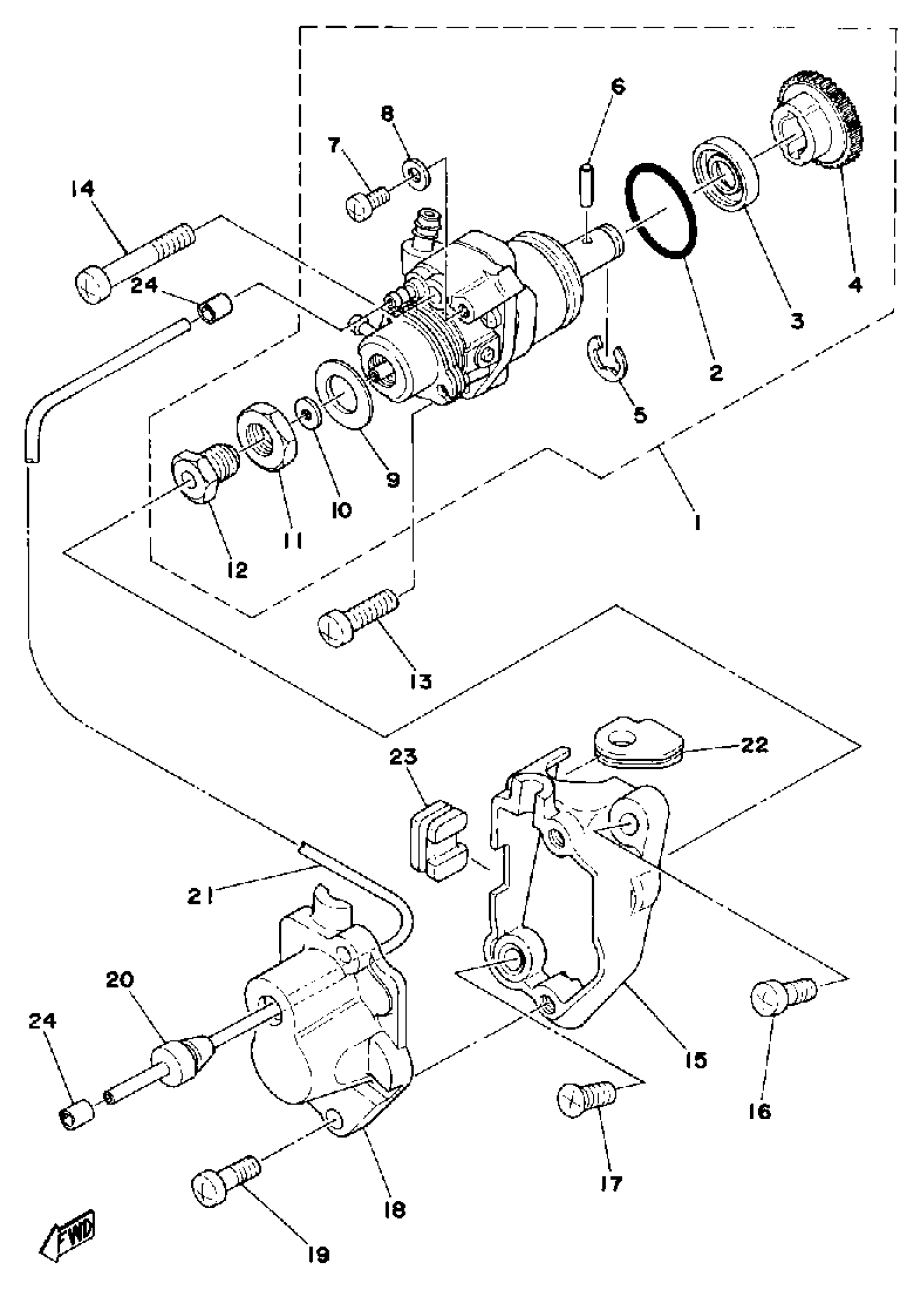

Find the part on the OIL Pump diagram for your 1978 Yamaha LB50P (LB50PE), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha LB50P (LB50PE) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

527-13101-01-00

1
Out of stock

2

O-RING

93210-26240-00

1

$6.82

In stock

3

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

4

GEAR, WORM WHEEL

296-13124-00-00

—

$12.75

In stock

5

CIRCLIP

99080-07600-00

1

$2.89

In stock

6

PIN, DOWEL

93603-14026-00

1
Out of stock

7

SCREW, BIND

98980-04008-00

1

$3.26

In stock

8

GASKET 137131870000

90430-04004-00

1
Out of stock

9

SHIM

296-13147-00-00

1
Out of stock

10

PLATE, ADJUSTING

384-13138-00-00

1

$5.32

In stock

11

NUT

90170-10105-00

—

$3.20

In stock

12

BOLT, UNION (527 CKD)

90401-10029-00

—

$6.77

In stock

13

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

14

SCREW, PAN

98507-05035-00

1

$6.69

In stock

15

COVER, OIL PUMP

439-15416-02-00

1
Out of stock

16

SCREW, PAN

98507-06014-00

—

$6.18

In stock

17

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

18

COVER, OIL PUMP R

(439-15426-02-00)

1
Out of stock

19

SCREW, PAN

98507-06014-00

—

$6.18

In stock

20

GROMMET (439)

90480-11057-00

—
Out of stock

21

HOSE

90445-05206-00

1
Out of stock

22

HOLDER, OIL PIPE

384-13174-00-00

—
Out of stock

23

GROMMET

90480-16179-00

1
Out of stock

24

CLIP (214-13164-00)

90468-02033-00

—
Out of stock
