1978 Yamaha LB50P (LB50PE) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1978 Yamaha LB50P (LB50PE), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

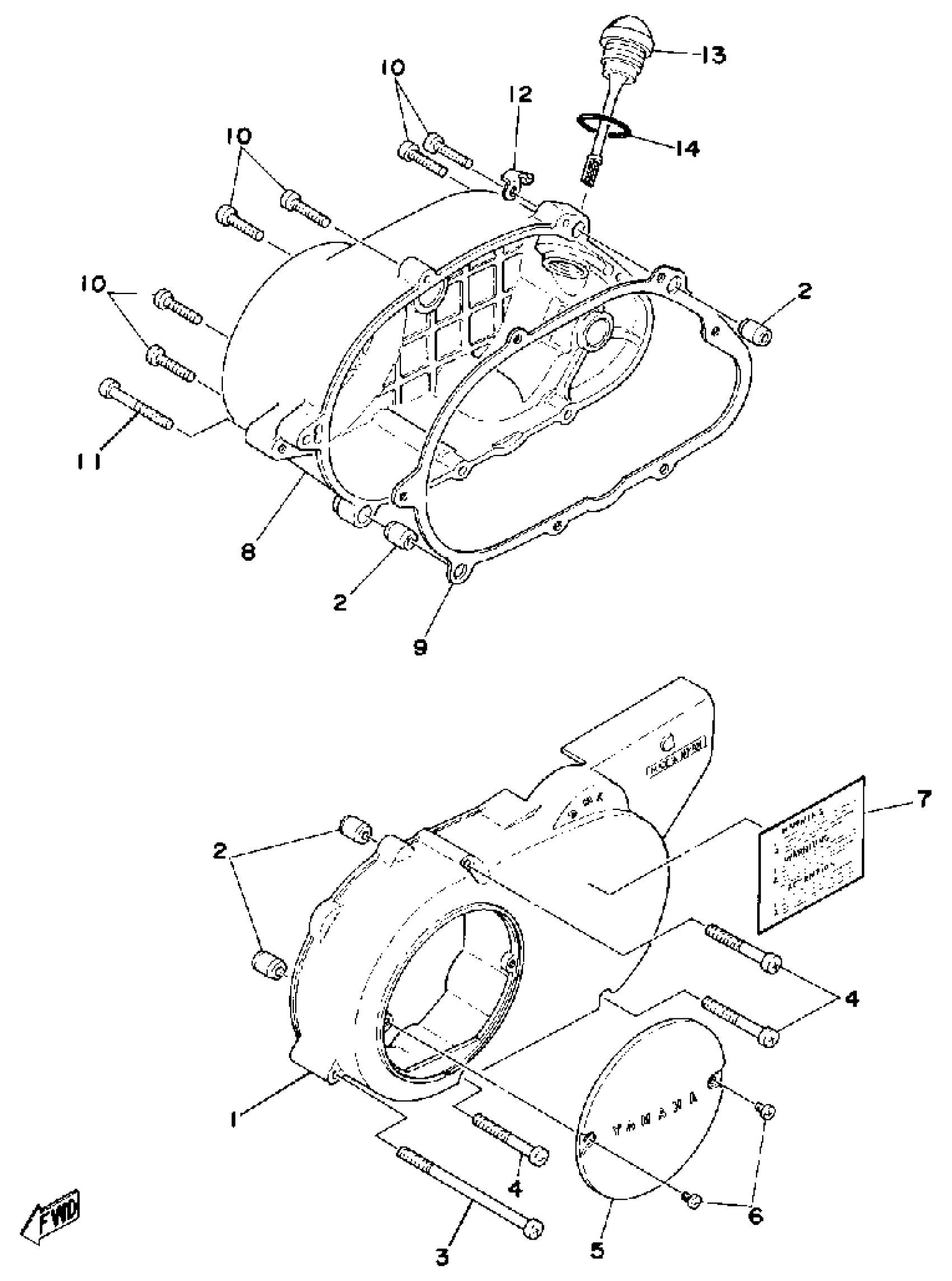

1978 Yamaha LB50P (LB50PE) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C/C COVER ASSEMBLY

99999-01098-00

1
Out of stock

2

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

3

SCREW, PAN

98507-06100-00

1

$6.80

In stock

4

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

5

COVER, GENERATOR (1)

164-15415-00-00

1

$22.02

In stock

6

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

7

1

$6.35

In stock

8

COVER, CRANK CASE (R.H)

384-15421-01-00

1
Out of stock

9

GASKET, CRANKCASE COVER 1

296-15451-03-00

1

$24.91

In stock

10

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

11

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

12

HOLDER

(439-15378-00-00)

1
Out of stock

13

PLUG, OIL

439-15363-01-00

1
Out of stock

14

O-RING

93210-21190-00

1

$5.59

In stock
