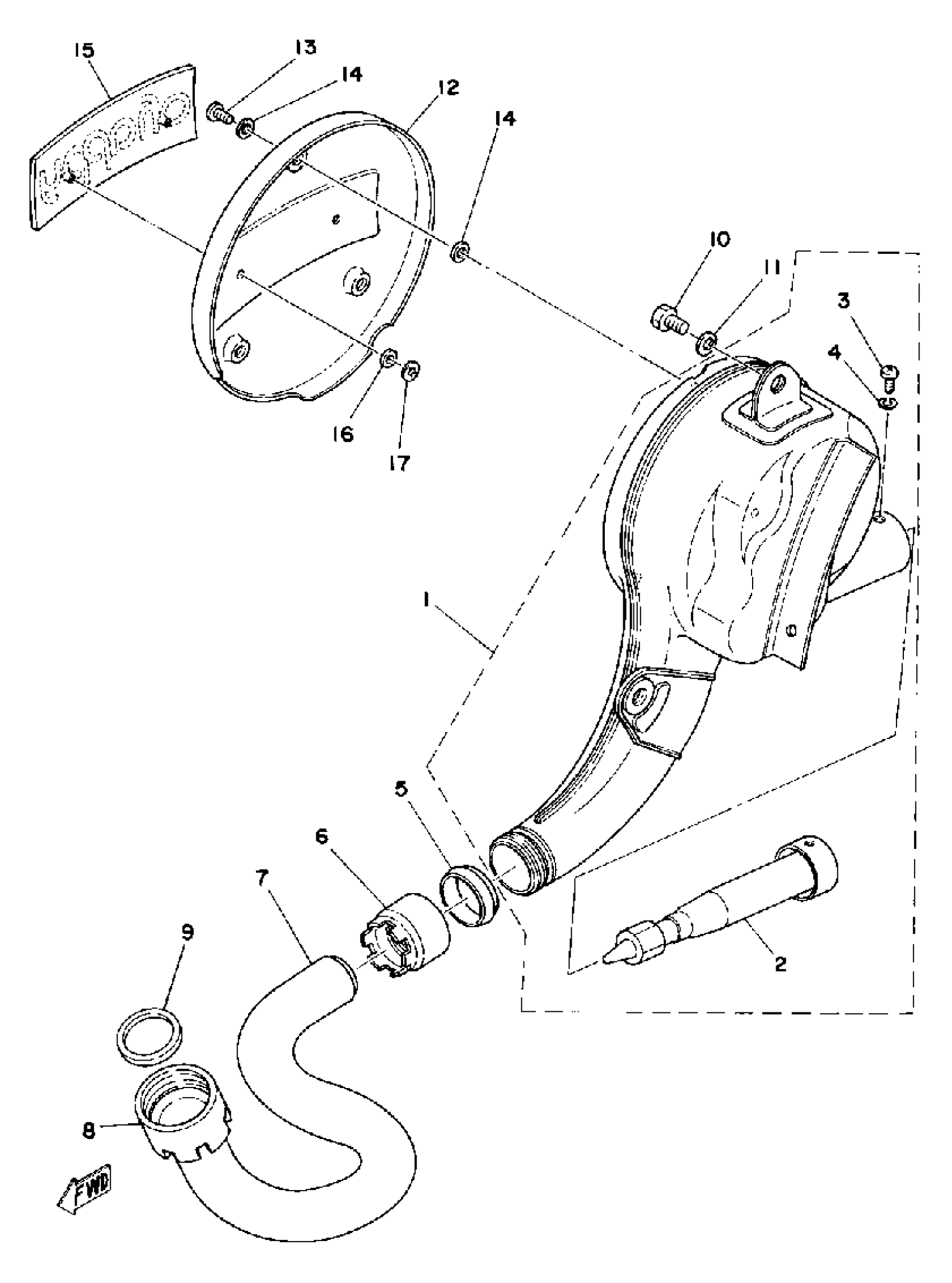

Yamaha LB50PE (LB50P) 1978 EXHAUST Diagram

#

Description
Price

1

MUFFLER ASSEMBLY L

2U7-14710-00-00

Unavailable

2

PIPE, OUTLET

(1F7-14752-00-00)

Unavailable

3

SCREW, PAN HEAD(6A3)

97885-06008-00

$1.07

4

WASHER, SPRING

92995-06100-00

$2.95

5

GASKET, MUFFLER

3NA-14714-01-00

Unavailable

6

NUT, MUFFLER JOINT

395-14713-00-00

Unavailable

7

PIPE, EXHAUST L

550-14611-01-00

Unavailable

8

NUT, RING

1L4-14612-00-00

$12.71

9

GASKET, EXHAUST PIPE

3MT-14613-00-00

$8.92

10

BOLT(JA9)

90101-08691-00

$4.65

11

.. WASHER, PLATE

92990-08600-00

$2.17

12

PROTECTOR, MUFFLER

439-14718-01-00

$55.71

13

SCREW, BIND(1JK)

98980-06010-00

$5.47

14

WASHER, PLATE(3MB)

90202-05187-00

$1.01

15

EMBLEM, PROTECTOR

439-14729-00-00

$51.08

16

WASHER PLATE 174283160000

90202-04003-00

Unavailable

17

NUT SPRING 116283170100

90183-04005-00

Unavailable
