1978 Yamaha LB50P (LB50PE) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1978 Yamaha LB50P (LB50PE), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

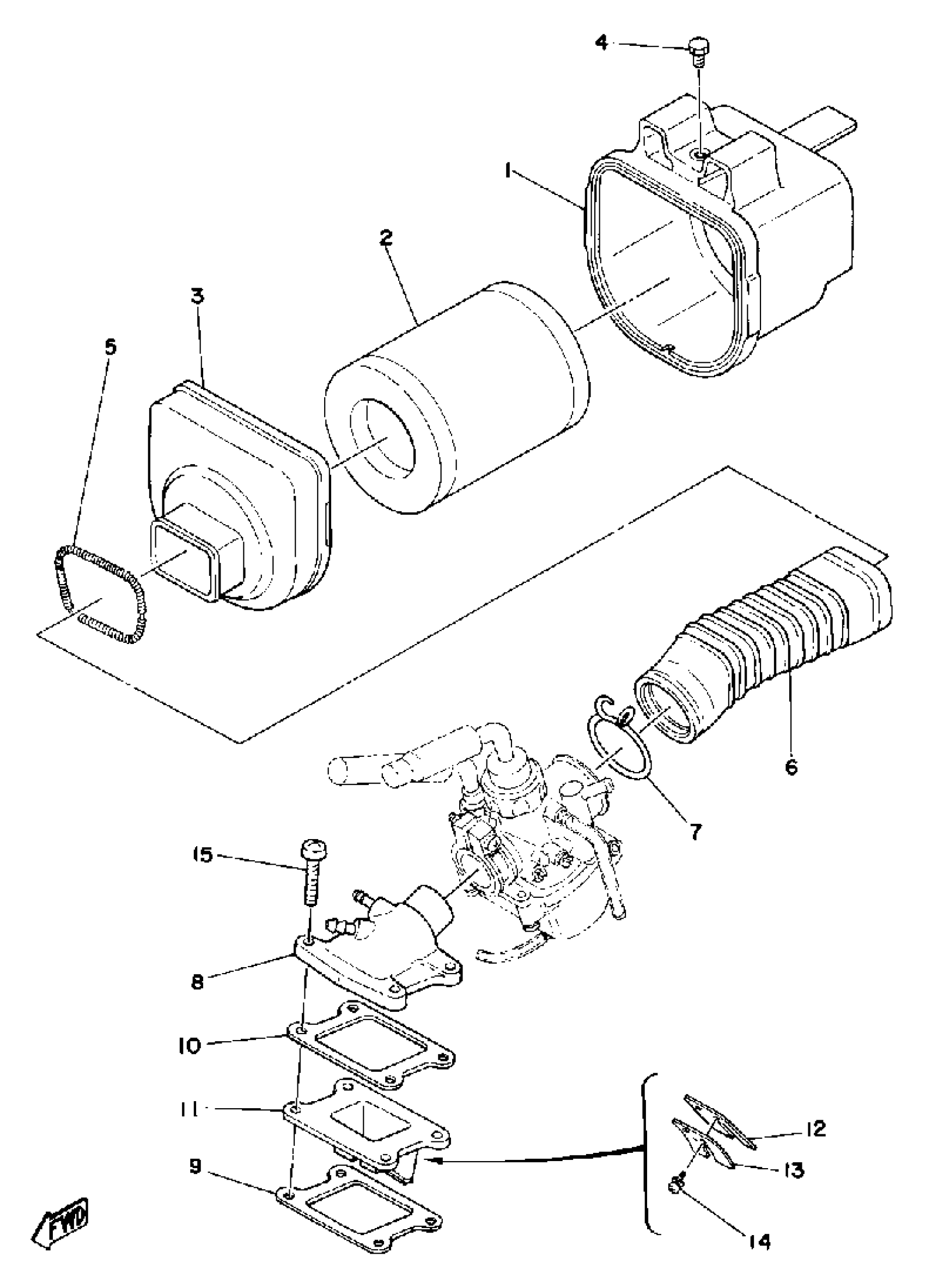

1978 Yamaha LB50P (LB50PE) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLNR 1

1V8-W1441-01-00

1
Out of stock

2

ELEMENT,AIR CLNR

1V8-14451-01-00

1
Out of stock

3

CAP, CLEANER CASE 1

(1V8-14412-00-00)

1
Out of stock

4

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

5

BAND 3671445501

90506-06075-00

1

$7.05

In stock

6

JOINT, AIR CLNR 1

1V8-14453-00-00

1
Out of stock

7

CLIP 296144550000

90467-20023-00

1

$3.55

In stock

8

JOINT, CARBURETOR

1L4-13565-00-00

1
Out of stock

9

GASKET, VALVE SEAT

3MT-13621-00-00

1

$7.51

In stock

10

GASKET, VALVE SEAT

2U7-13622-00-00

1
Out of stock

11

REED VALVE ASSEMBLY

353-13610-01-00

1
Out of stock

12

VALVE, REED

314-13613-01-00

—

$32.53

In stock

13

. STOPPER, REED VALVE

10X-13616-00-00

1
Out of stock

14

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

15

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock
