1978 Yamaha LB50P (LB50PE) Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1978 Yamaha LB50P (LB50PE), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

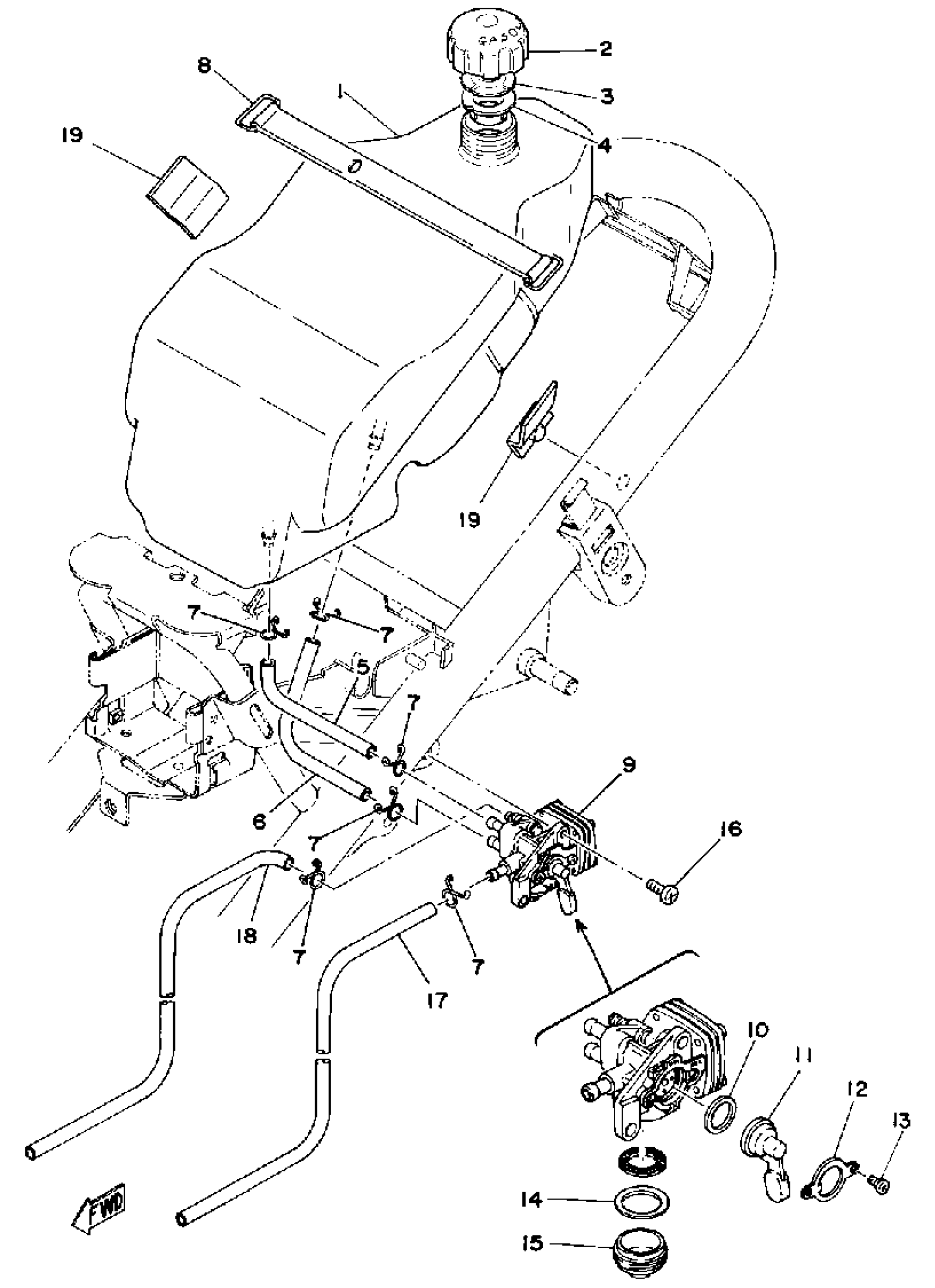

1978 Yamaha LB50P (LB50PE) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(1L4-24111-00-00)

1
Out of stock

2

CAP ASSY

1L4-24610-00-00

1

$25.35

In stock

3

. GASKET, PLATE 1

1L4-24615-00-00

1
Out of stock

4

. GASKET, PLATE 2

1L4-24616-00-00

1
Out of stock

5

PIPE, FUEL 1

4KN-24311-01-00

1
Out of stock

6

HOSE (L420)

90445-092K1-00

1

$10.63

In stock

7

CLIP 101235600

90467-08003-00

1

$6.13

In stock

8

BAND, TANK FITTING

561-24173-00-00

1
Out of stock

9

FUEL COCK ASSY

439-24500-02-00

—

$165.18

In stock

10

VALVE

266-24523-00-00

—

$9.49

In stock

11

. LEVER, COCK

439-24524-00-00

1
Out of stock

12

PLATE, LVR FITTING

(439-24525-00-00)

1
Out of stock

13

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

14

GASKET

266-24522-00-00

—

$5.80

In stock

15

. CUP, FILTER

266-24521-01-00

1
Out of stock

16

SCREW, PAN

98507-06014-00

—

$6.18

In stock

17

HOSE (L420)

90445-092K1-00

1

$10.63

In stock

18

PIPE 7

439-24317-00-00

1
Out of stock

19

DAMPER, LOCATING 2

439-24182-00-00

1
Out of stock
