1978 Yamaha LB50P (LB50PE) Clutch Diagram

← All diagrams

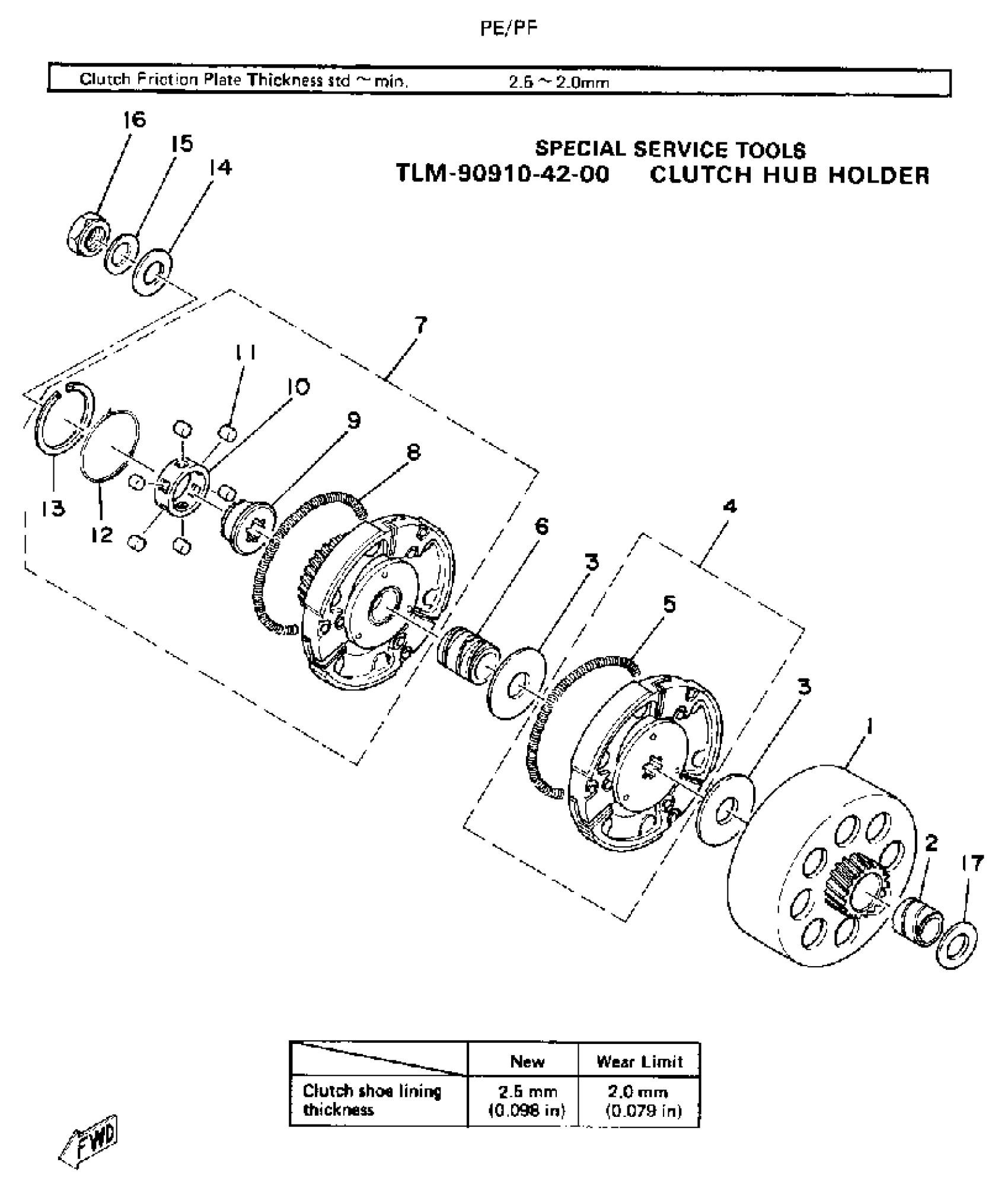

Find the part on the Clutch diagram for your 1978 Yamaha LB50P (LB50PE), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha LB50P (LB50PE) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRV GEAR ASSEMBLY

(384-16110-00-00)

1
Out of stock

2

SPACER

(90560-15119-00)

1
Out of stock

3

WASHER, PLATE

(90201-16250-00)

1
Out of stock

4

CLUTCH CARRIER ASSEMBLY

384-16620-02-00

1
Out of stock

5

SPRING, TENSION

(90506-12025-00)

1
Out of stock

6

SPACER

(90560-15120-00)

1
Out of stock

7

CLUTCH CARRIER ASSEMBLY

439-16630-00-00

1
Out of stock

8

SPRING, TENSION

(90506-12139-00)

1
Out of stock

9

BOSS, CLUTCH HSNG

296-16512-00-00

1
Out of stock

10

CAGE

(384-16586-01-00)

1
Out of stock

11

PIN, DOWEL

93606-06091-00

1
Out of stock

12

SPRING TORSION 2J

90508-10739-00

1
Out of stock

13

CIRCLIP, INNER

(93450-41030-00)

1
Out of stock

14

WASHER, PLATE(3RR)

90201-133P2-00

1

$6.85

In stock

15

WASHER, CONICAL SPR (384-16119-00)

90208-13016-00

1
Out of stock

16

NUT, SPEC''L SHAPE

90179-13073-00

1
Out of stock

17

PLATE, THRUST 2

(384-16164-00-00)

1
Out of stock
