1978 Yamaha LB50P (LB50PE) Head Lamp-Speedometer Diagram

← All diagrams

Find the part on the Head Lamp-Speedometer diagram for your 1978 Yamaha LB50P (LB50PE), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

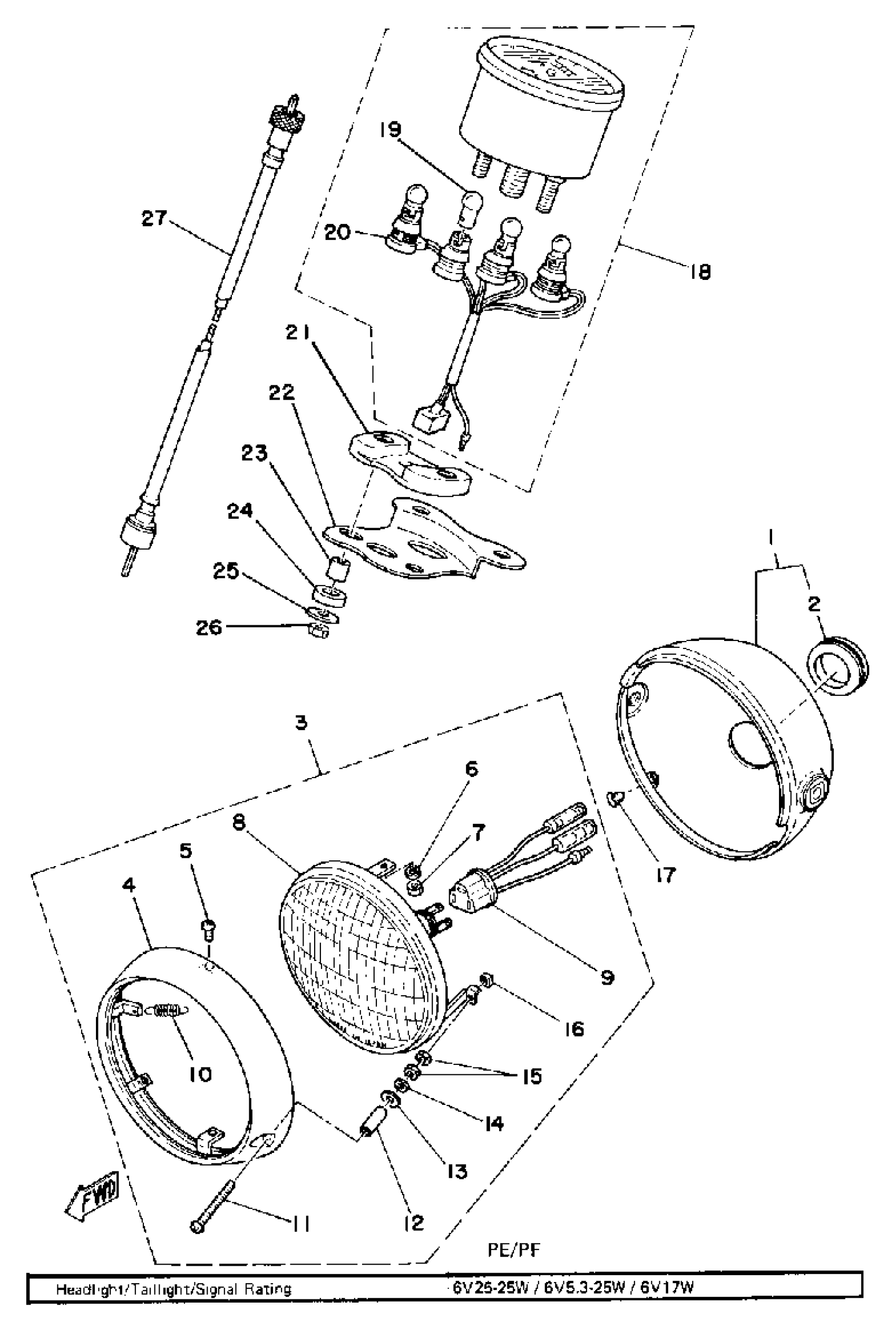

1978 Yamaha LB50P (LB50PE) Head Lamp-Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY, HEADLIGHT

393-84130-61-26

1
Out of stock

1

BODY, HEAD LAMP

393-84130-61-E1

1
Out of stock

2

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

3

HEAD LAMP UNIT ASSY

388-84110-61-00

—
Out of stock

4

. RIM, HEADLIGHT

261-84315-61-00

1
Out of stock

5

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

6

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

7

NUT(6L4)

95380-04700-00

—

$5.62

In stock

8

LENS ASSY

388-84120-61-00

1
Out of stock

9

SOCKET

371-84312-60-00

—

$26.52

In stock

10

SPRING

(132-84335-60-00)

1
Out of stock

11

SCREW, RIM ADJUSTING

(198-84331-60-00)

1
Out of stock

12

. COLLAR, SCREW

233-84133-60-00

1
Out of stock

13

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

14

. SPACER

132-84328-60-00

1
Out of stock

15

NUT(6L4)

95380-04700-00

—

$5.62

In stock

16

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

17

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

18

SPEEDOMETER ASSEMBLY

(2F7-83510-60-00)

1
Out of stock

19

BULB,(6V3W)

122-83516-10-00

1
Out of stock

20

SOCKET CORD ASSEMBLY

(2F7-83520-60-00)

1
Out of stock

21

DAMPER

(355-83513-00-00)

1
Out of stock

22

BRACKET, METER

(439-83519-00-33)

1
Out of stock

23

COLLAR

355-83522-00-00

1
Out of stock

24

DAMPER 2

355-83526-00-00

—

$2.25

In stock

25

WASHER, PLATE (371)

90201-06412-00

—

$5.38

In stock

26

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

27

SPEEDOMETER CABLE ASSY

3T5-83550-80-00

—

$42.34

In stock
