2003 Kawasaki Lakota Sport Ignition Switch Diagram

← All diagrams

Find the part on the Ignition Switch diagram for your 2003 Kawasaki Lakota Sport, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

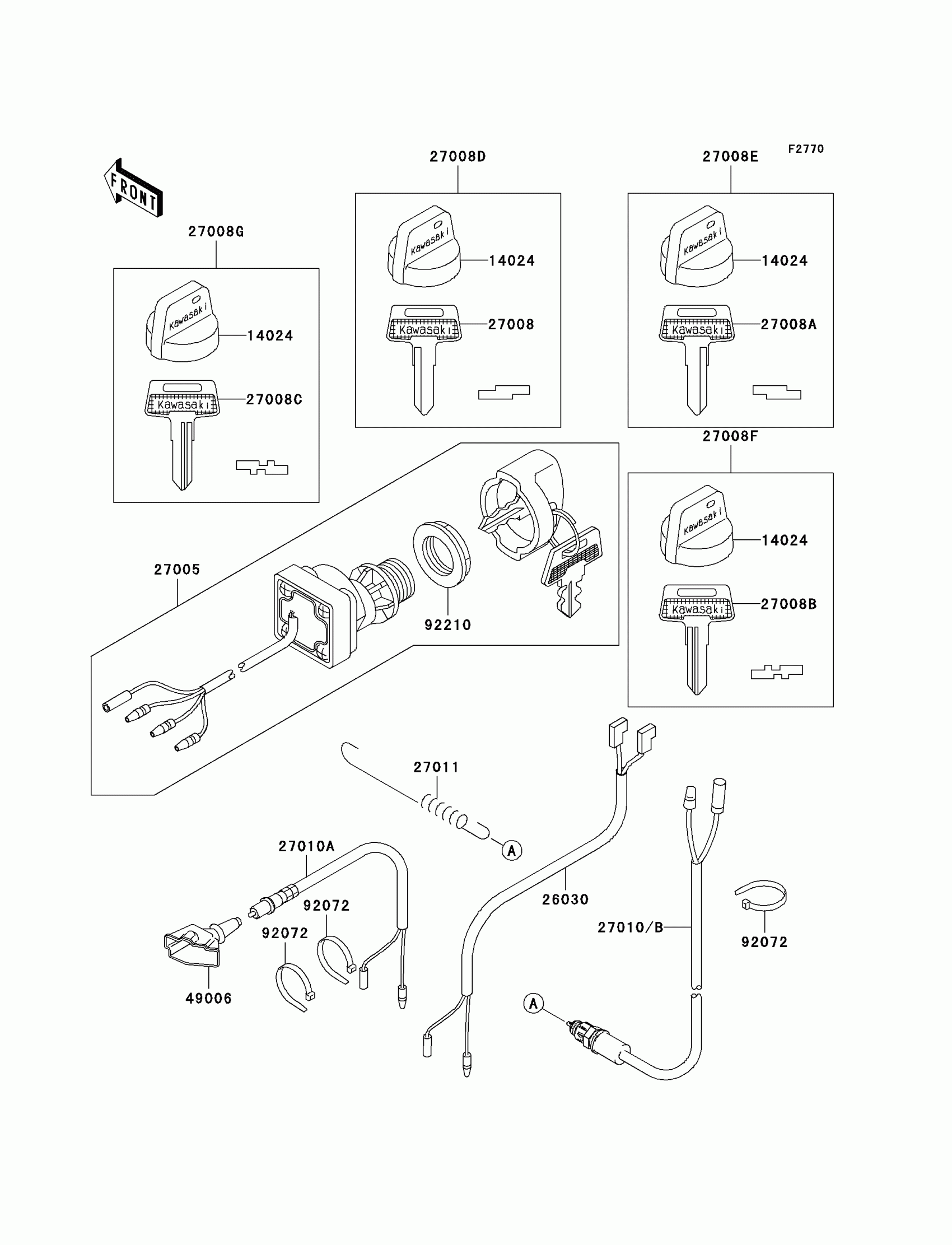

2003 Kawasaki Lakota Sport Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,KEY

14024-1551

1

$4.98

In stock

26030

HARNESS

26030-1058

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-1186

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1041

1
Out of stock

27008A

KEY-LOCK,BLANK

27008-1042

1
Out of stock

27008B

KEY-LOCK,BLANK

27008-1043

1
Out of stock

27008C

KEY-LOCK,BLANK

27008-1044

1
Out of stock

27008D

KEY-LOCK,BLANK,W/COVER

27008-1132

1
Out of stock

27008E

KEY-LOCK,BLANK,W/COVER

27008-1133

1
Out of stock

27008F

KEY-LOCK,BLANK,W/COVER

27008-1134

1
Out of stock

27008G

KEY-LOCK,BLANK,W/COVER

27008-1135

1
Out of stock

27010A

SWITCH,BRAKE

27010-1294

1
Out of stock

27010B

SWITCH,REAR BRKAE

27010-1473

1
Out of stock

27011

SPRING,BRAKE LAMP SWITCH

27011-021

1
Out of stock

49006

BOOT

49006-1261

1
Out of stock

92072

BAND,L=188

92072-1239

1
Out of stock

92210

NUT,IGNITION SWITCH

92210-1109

1
Out of stock
