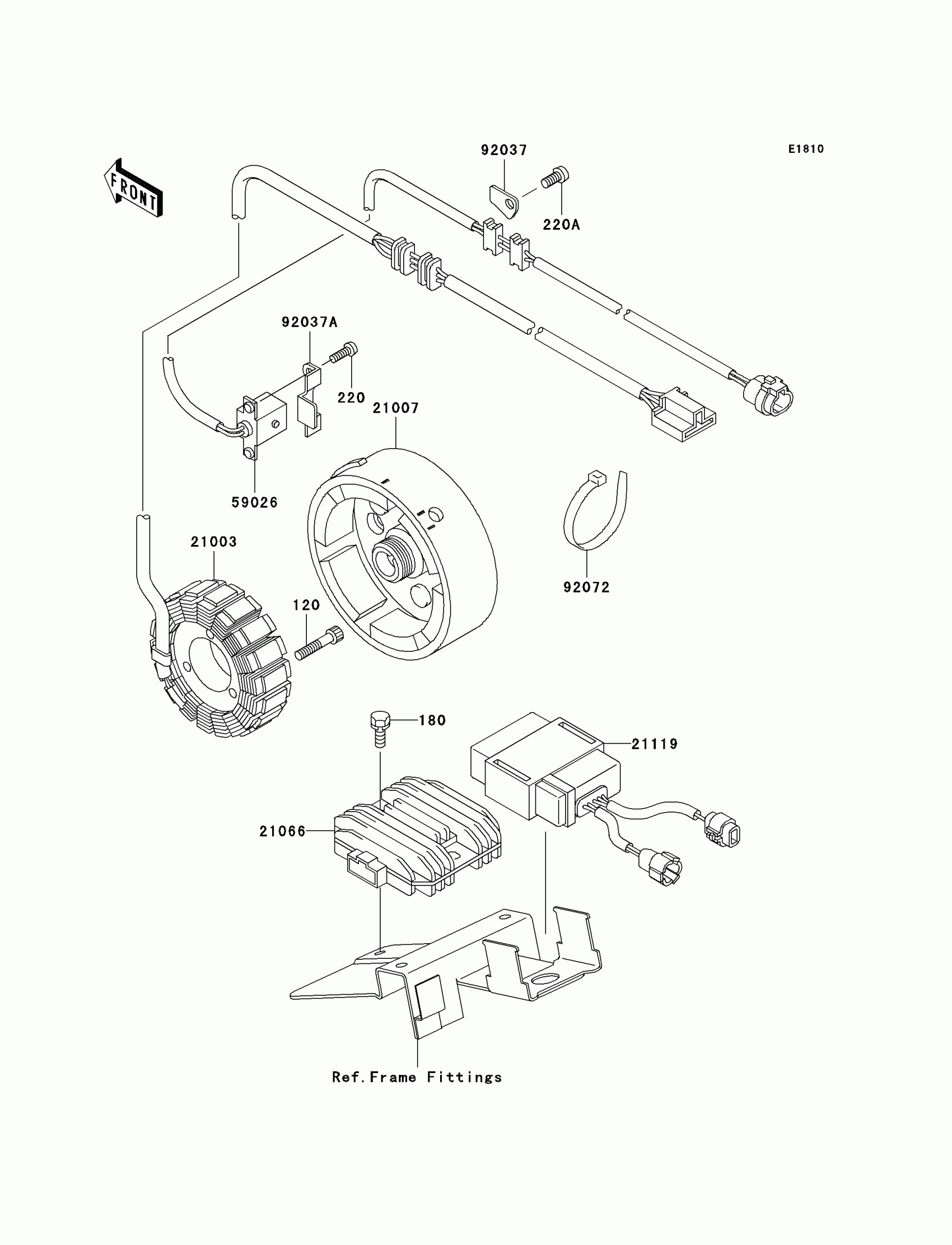

Kawasaki Lakota Sport Generator Diagram

Description

Price

120

BOLT-SOCKET,6X30

120P0630

Unavailable

180

BOLT 6X30

180B0630

Unavailable

220

SCREW-PAN-CROS

220B0514

Unavailable

220A

SCREW PAN HEAD 6X12

220B0612

Unavailable

21003

STATOR

21003-1276

$623.06

21007

ROTOR

21007-1361

$563.75

21066

REGULATOR-VOLTAGE

21066-1089

$273.17

21119

IGNITER

21119-1369

$590.34

59026

COIL-PULSING

59026-1092

$150.53

92037

CLAMP,WIRING HARNESS

92037-1656

$3.92

92037A

CLAMP

92037-1987

$8.54

92072

BAND,L=188

92072-1239

$1.30
