2003 Kawasaki Lakota Sport Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2003 Kawasaki Lakota Sport, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

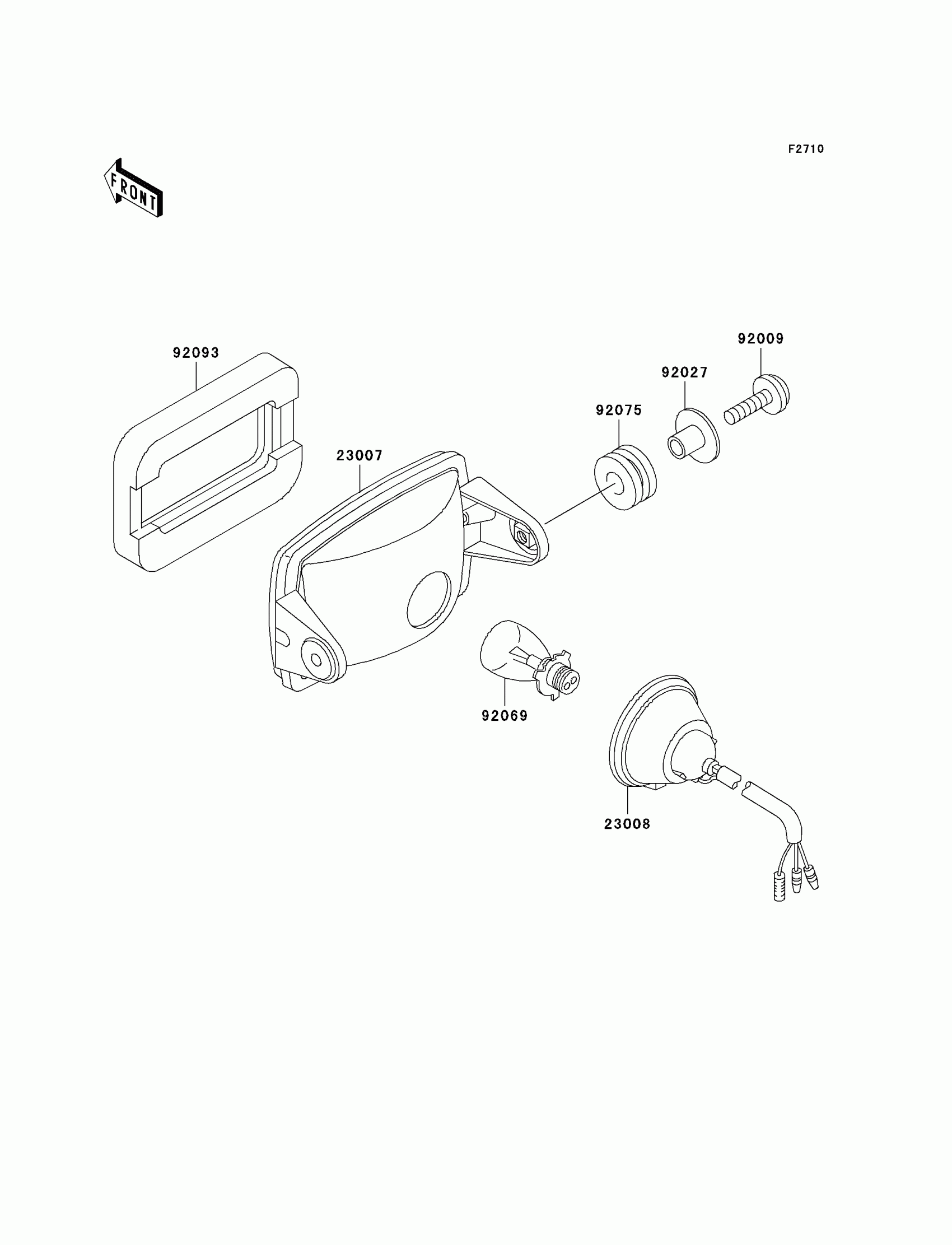

2003 Kawasaki Lakota Sport Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23007

LENS-COMP,HEAD LAMP

23007-1183

1

$105.15

In stock

23008

SOCKET-ASSY,HEAD LAMP

23008-1358

1
Out of stock

92009

SCREW,6X22,BLACK

92009-1256

1
Out of stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1

$4.93

In stock

92069

BULB,12V 45/45W

92069-1061

1

$12.66

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92093

SEAL,HEAD LAMP

92093-1222

1

$12.69

In stock
