1999 Kawasaki Lakota 300 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1999 Kawasaki Lakota 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

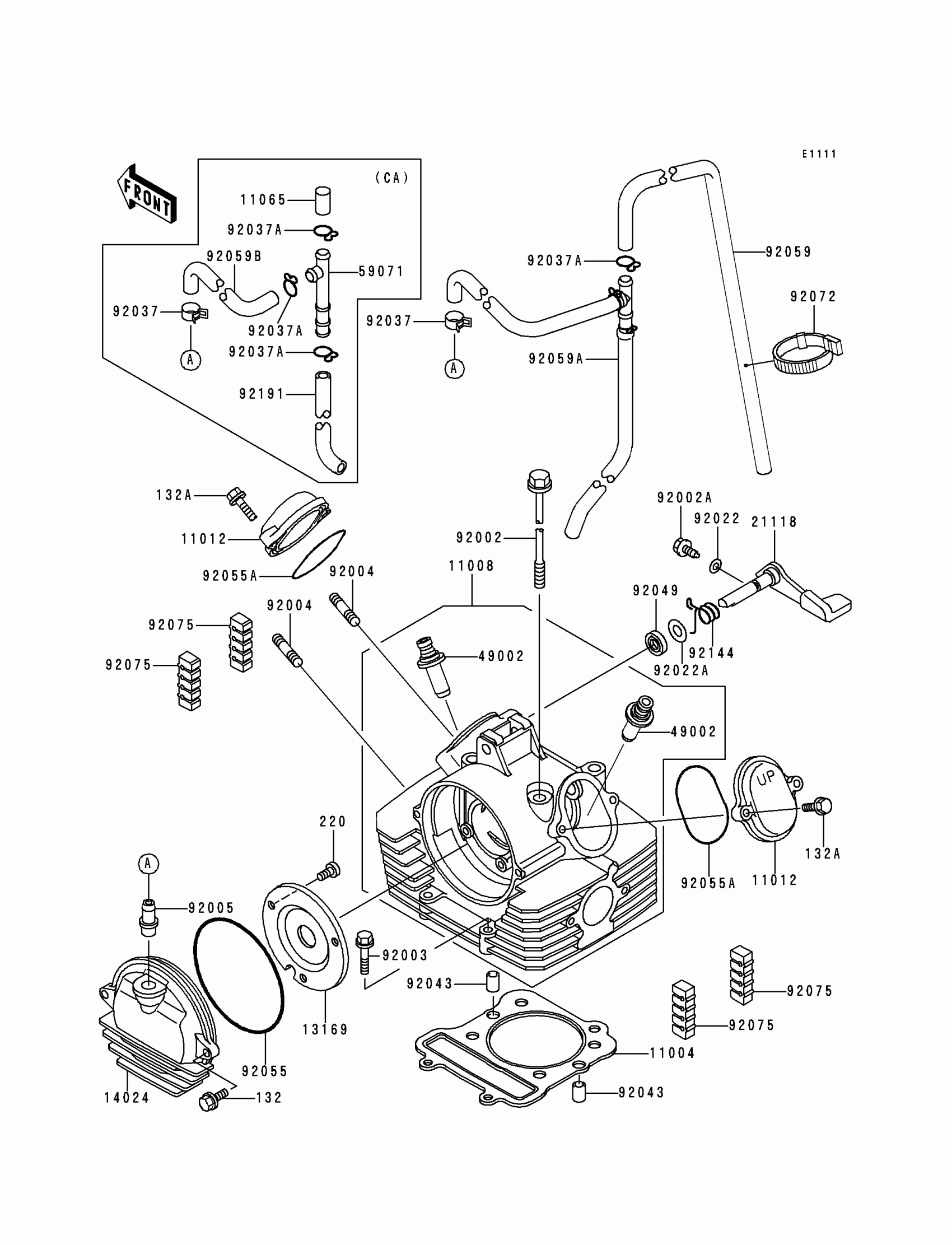

1999 Kawasaki Lakota 300 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X16

132Y0616

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X25

132Y0625

1
Out of stock

220

SCREW PAN HEAD 6X10

220B0610

1
Out of stock

11004

GASKET-HEAD

11004-1183

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1292

1

$1,041.96

In stock

11012

CAP,ROCKER ARM

11012-1486

1

$29.66

In stock

13169

1

$13.17

In stock

14024

COVER,CAMSHAFT

14024-1060

1
Out of stock

21118

DECOMPRESSOR,LEVER

21118-1062

1

$38.92

In stock

49002

GUIDE-VALVE

49002-1092

—

$36.05

In stock

92002

BOLT,8X233

92002-1515

1
Out of stock

92002A

BOLT,FLANGED-SMALL,6X8.1X2.5

92002-1962

1
Out of stock

92003

BOLT,6X32

92003-229

1
Out of stock

92004

STUD,8X30

92004-1121

1
Out of stock

92005

FITTING,BREATHER PIPE

92005-1124

1
Out of stock

92022

1

$3.13

In stock

92022A

WASHER,10.2X20X0.5

92022-1649

1

$3.43

In stock

92037

CLAMP,HOSE CLIP

92037-1181

1

$2.68

In stock

92043

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92049

SEAL-OIL,SD10205-1HS

92049-1286

1
Out of stock

92055

"O" RING,99M/M

92055-107

1

$8.23

In stock

92055A

RING-O,53.5X2.6

92055-112

1

$5.25

In stock

92075

DAMPER

92075-1657

1
Out of stock

92144

SPRING,DECOMPRESSOR

92144-1154

1

$5.10

In stock

11065

CAP

11065-1075

1

$3.46

In stock

59071

JOINT

59071-1124

1

$10.46

In stock

92037A

CLAMP,12.5MM

92037-1271

1

$1.80

In stock

92037A

CLAMP,12.5MM

92037-1271

1

$1.80

In stock

92059

TUBE,BREATHER

92059-1511

1

$34.01

In stock

92059A

TUBE,ASSY

92059-1787

1

$37.86

In stock

92059B

TUBE

92059-1789

1

$17.39

In stock

92072

BAND,L=149

92072-031

1

$3.97

In stock

92191

TUBE

92191-1170

1

$9.36

In stock
