1999 Kawasaki Lakota 300 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1999 Kawasaki Lakota 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

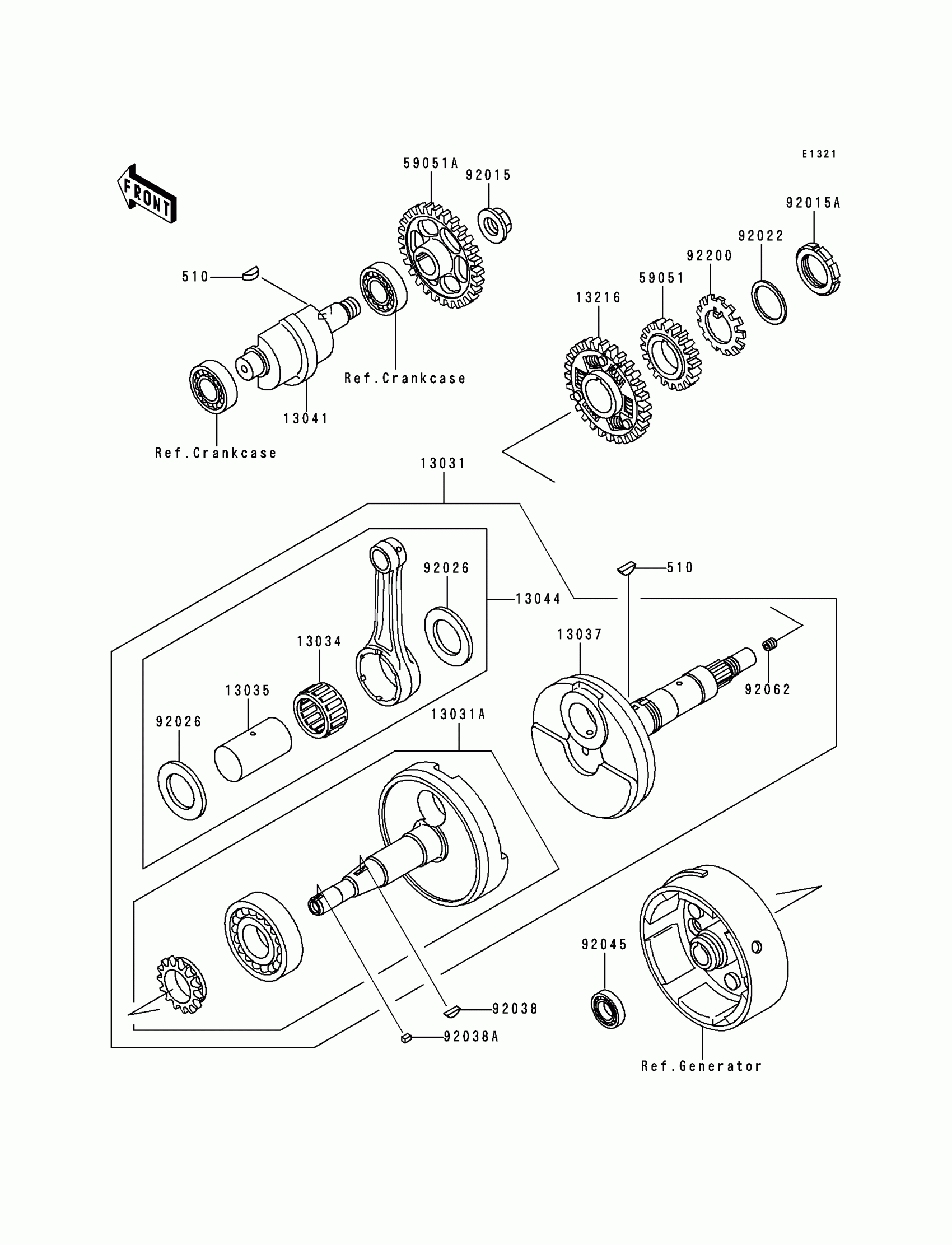

1999 Kawasaki Lakota 300 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

510

WOODRUFF KEY

510A5100

1
Out of stock

13031

CRANKSHAFT-COMP

13031-1388

1
Out of stock

13031A

CRANKSHAFT-COMP,LH

13031-1402

1
Out of stock

13034

BEARING-BIG END,PK32X43X22.4

13034-1061

1
Out of stock

13035

PIN-CRANK

13035-1067

1
Out of stock

13037

CRANKSHAFT,RH

13037-1499

1
Out of stock

13041

BALANCER

13041-1066

1
Out of stock

13044

SET-CONNECTING ROD

13044-5066

1
Out of stock

13216

GEAR-COMP,BALANCER

13216-1072

1
Out of stock

59051

GEAR-SPUR,OIL PUMP,36T

59051-1140

1
Out of stock

59051A

GEAR-SPUR,BALANCER,44T

59051-1141

1
Out of stock

92015

NUT,16MM

92015-1465

1
Out of stock

92015A

NUT,PUMP GEAR,30MM

92015-1511

1
Out of stock

92022

WASHER,30.3X38X0.5

92022-1987

1
Out of stock

92026

SPACER,32X51.5X1.2

92026-1232

1
Out of stock

92038

KEY,WOODRUFF

92038-001

1
Out of stock

92038A

KEY,SUNK

92038-1051

1
Out of stock

92045

BEARING-BALL,6903C3

92045-1266

1
Out of stock

92062

NOZZLE

92062-1056

1
Out of stock

92200

WASHER,PUMP GEAR

92200-1203

1
Out of stock
