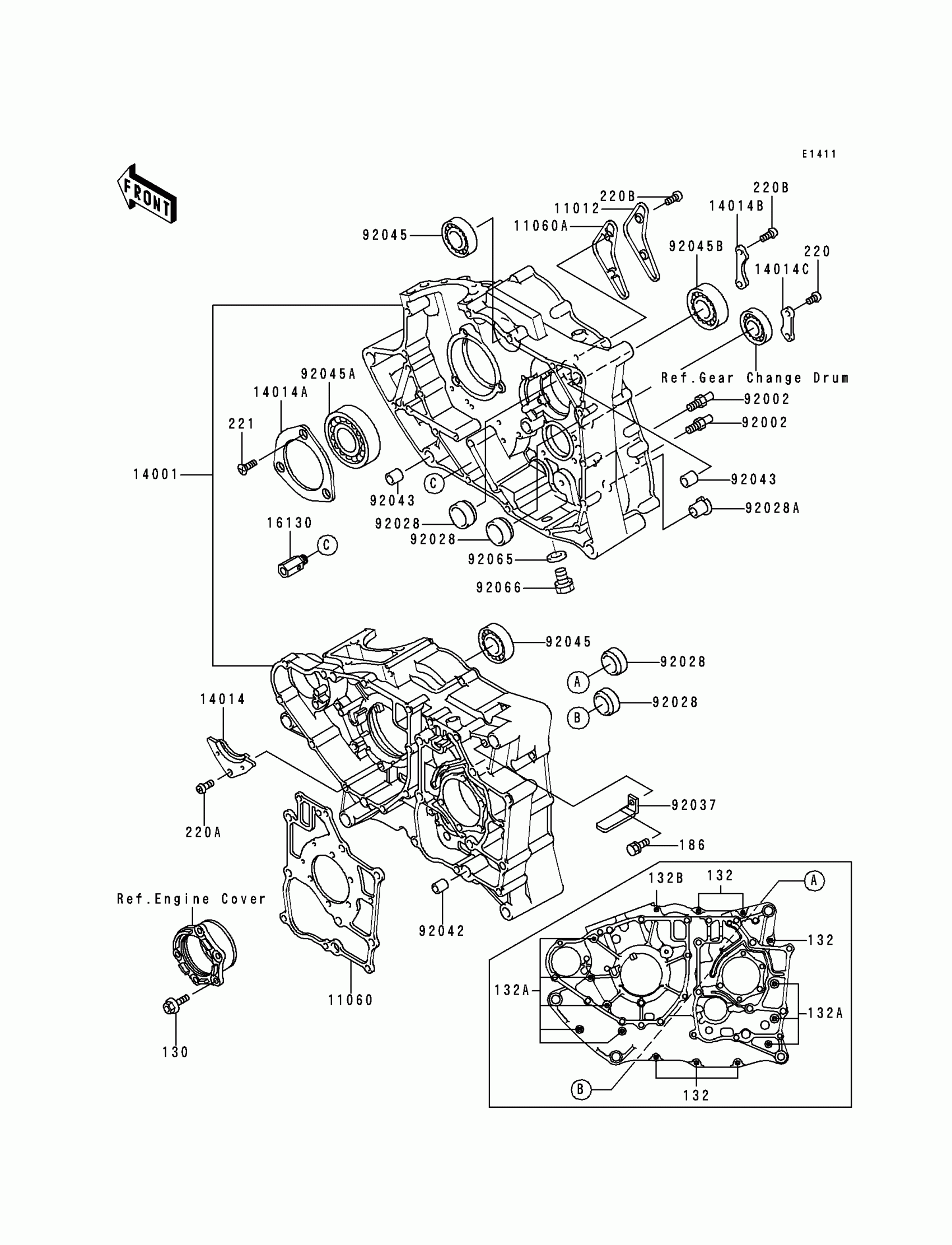

Kawasaki Lakota 300 Crankcase Diagram

#

Description
Price

130

BOLT-FLANGED,6X20

130P0620

$1.22

132

BOLT-FLANGED-SMALL,6X35

132Y0635

Unavailable

132A

BOLT-FLANGED-SMALL

132Y0665

Unavailable

132B

BOLT-FLANGED-SMALL

132Y0685

Unavailable

186

BOLT-UPSET-WP

186D0614

Unavailable

220

SCREW PAN HEAD 6X10

220B0610

Unavailable

220A

SCREW PAN HEAD 6X12

220B0612

Unavailable

220B

SCREW-PAN-CROS,6X14

220B0614

$1.14

221

SCREW-CSK-CROS,6X16

221B0616

$0.54

11012

CAP

11012-1443

$9.47

11060

GASKET,GEAR CASE

11060-1653

$10.56

11060A

GASKET,OIL LINE CAP

11060-1654

$4.02

14001

SET-CRANKCASE

14001-5324

$947.13

14014

PLATE,POSITIONING

14014-035

$4.61

14014A

PLATE-POSITION,CRANK BEARING

14014-1004

$11.12

14014B

PLATE-POSITION

14014-1069

$5.37

14014C

PLATE-POSITION,CHANGE DRUM

14014-1070

$7.14

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

92002

BOLT,SOCKET,4X8

92002-1408

$5.75

92028

BUSHING,23X30X13

92028-132

$38.79

92028A

BUSHING

92028-1386

$16.31

92037

CLAMP,HARNESS

92037-1316

$1.85

92042

PIN,DOWEL,12X14

92042-031

$4.93

92043

PIN,11.5X14X14

92043-1279

$3.81

92045

BEARING-BALL,6004TMB

92045-1118

$19.29

92045A

BEARING-BALL

92045-1172

$49.82

92045B

BEARING-BALL

92045-1173

$35.98

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64
