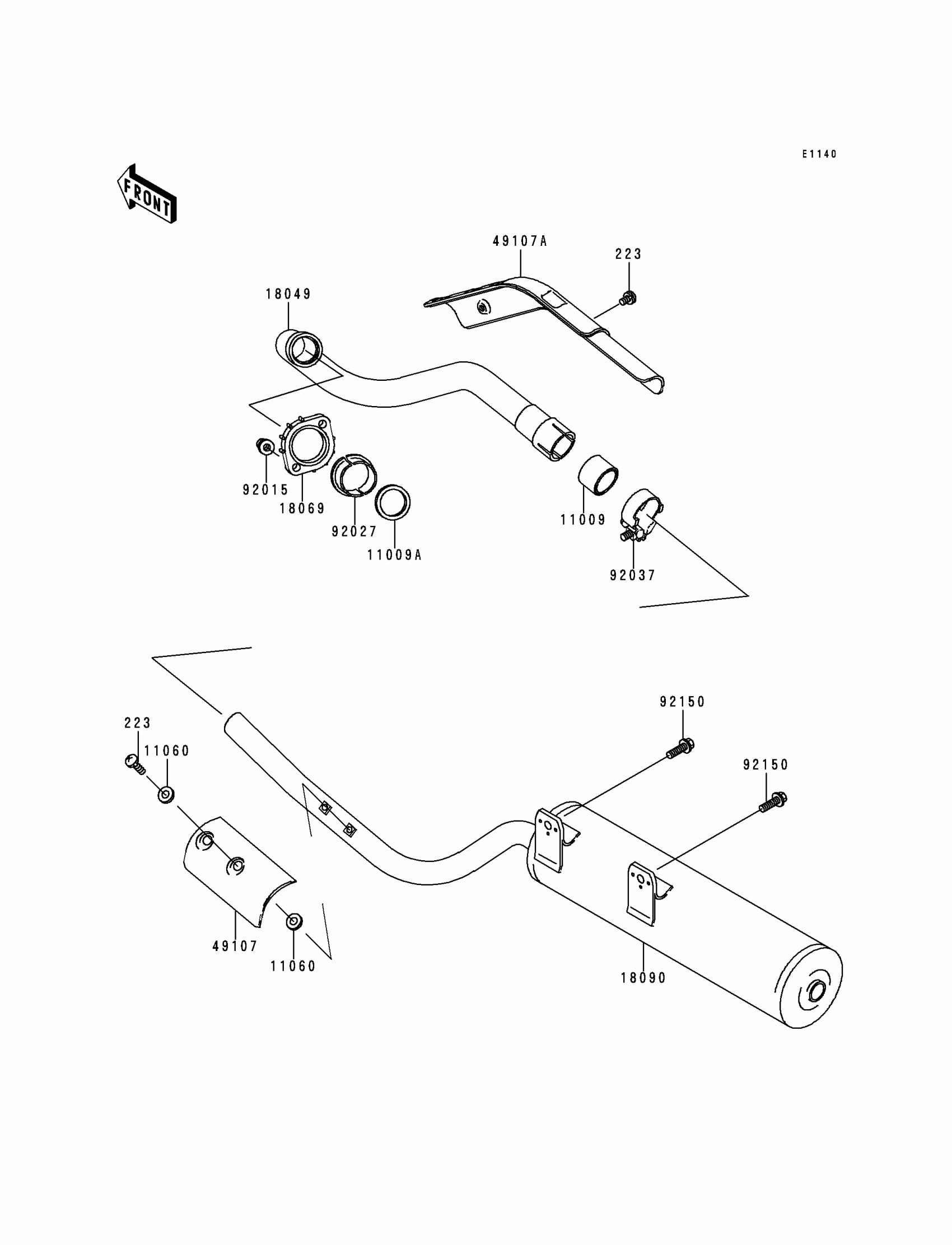

Kawasaki Lakota 300 Muffler(s) Diagram

Description

Price

223

SCREW-PAN-WS-CROS

223R0610

$2.63

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1718

$22.08

11009A

GASKET,EXHAUST PIPE H

11009-1866

$6.29

11060

GASKET,6.2X11.5X1.5

11060-1109

$3.49

18049

PIPE-EXHAUST

18049-1702

$99.90

18069

HOLDER-EXHAUST PIPE

18069-1014

$14.19

18090

BODY-COMP-MUFFLER

18090-1401

$338.42

49107

COVER-EXHAUST PIPE,RR

49107-1072

Unavailable

49107A

COVER-EXHAUST PIPE

49107-1082

$76.01

92015

NUT,8MM

92015-1402

$3.57

92027

COLLAR,EXHAUST PIPE

92027-264

$3.60

92037

CLAMP

92037-1956

$16.80

92150

BOLT

92150-1158

$4.15
