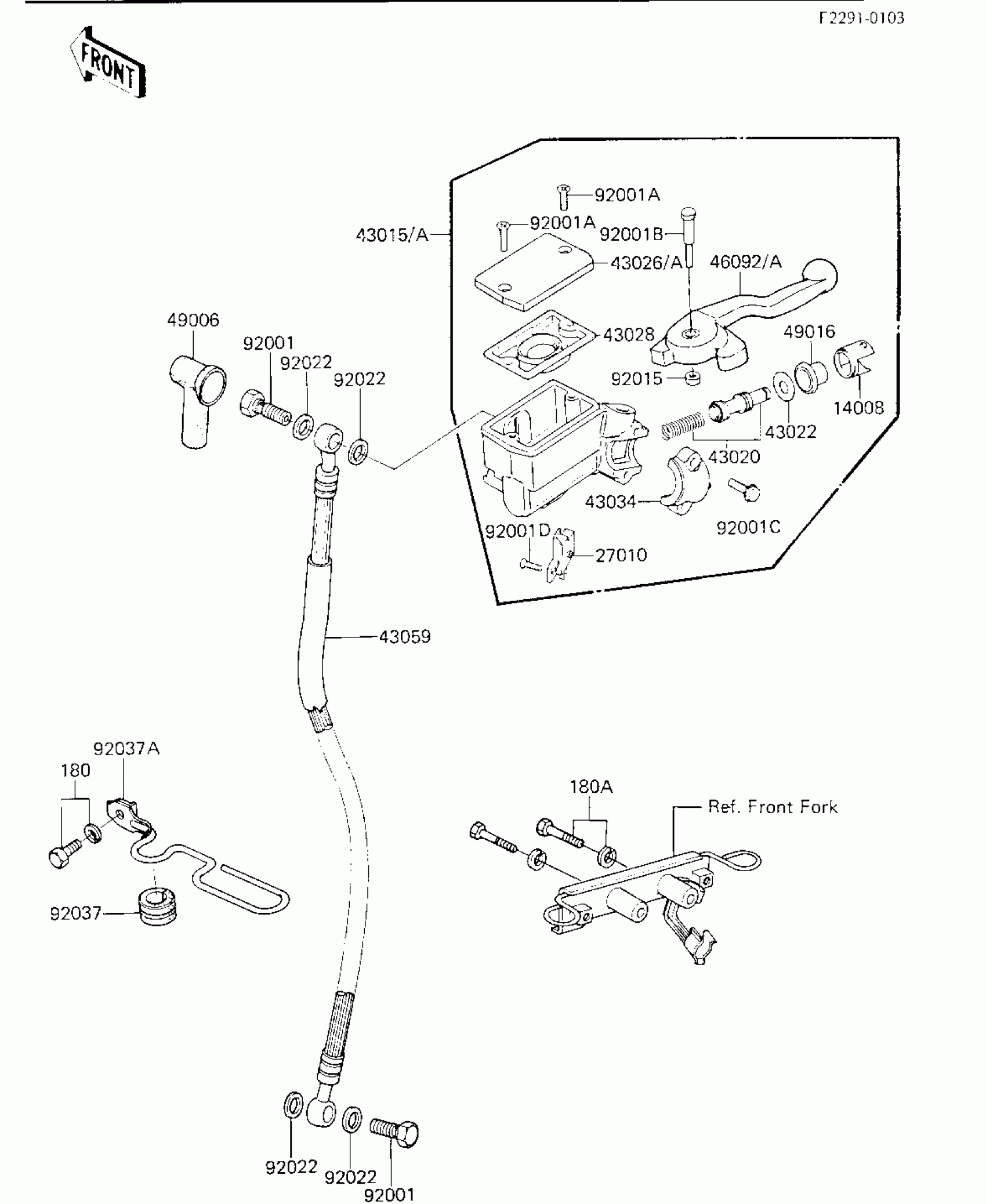

Kawasaki KZ750-K2 (Canada Only) FRONT MASTER CYLINDER Diagram

Description

Price

14008

LINER,PISTON

14008-1035

$12.34

27010

SWITCH,BRAKE

27010-1056

$47.91

43015A

CYLINDER-ASSY-MASTER,

43015-1136

Unavailable

43020

PISTON-COMP-BRAKE

43020-1033

Unavailable

43022

STOPPER-BRAKE,PISTON

43022-1009

$5.20

43026

CAP-BRAKE,FRONT

43026-1017

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

43028-1029

$24.77

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

Unavailable

43059

HOSE-BRAKE,FR,L=1090

43059-1196

$140.72

46092

LEVER-GRIP,FRONT BRAK

46092-1027

$59.43

49006

BOOT,DUST

49006-1067

$9.56

49016

COVER-SEAL,BRAKE PISTON

49016-1041

$10.69

92001

BOLT,OIL,L=23

92002-1888

$4.15

92001A

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$4.59

92001B

BOLT,6X37.3,BLACK

92001-1512

$9.97

92001C

BOLT,6X25,W/WASHER,BLACK

92001-1513

Unavailable

92001D

SCREW-CSK-CROS,4X10,BLACK

92001-1532

Unavailable

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92022

WASHER,10.5X15X1.5

43067-001

$1.57

92037

GROMMET,HOSE CLAMP

43064-006

$3.29

92037A

CLAMP,CABLE

92037-1116

Unavailable

180

BOLT 6X12

180B0612

Unavailable

180A

BOLT-UPSET-WS

180B0640

Unavailable
