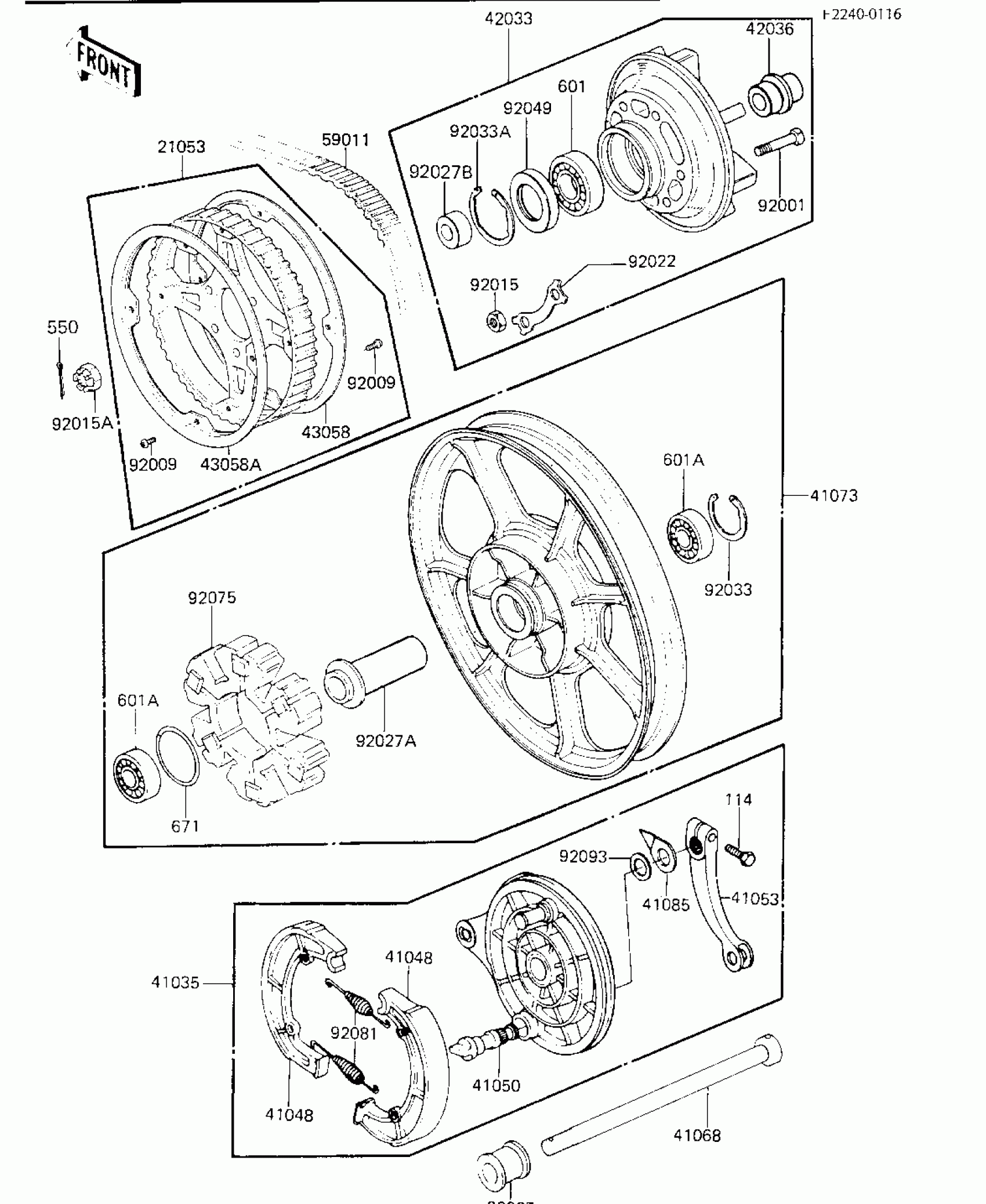

Kawasaki KZ750-K2 (Canada Only) REAR WHEEL/HUB/BRAKE/BELT Diagram

Description

Price

21053

SPROCKET-ASSY,65T

21053-1014

$426.23

41035

PANEL-ASY,BRK BLACK

41035-1055

$681.07

41048

SHOE,BRAKE

42019-012

$37.86

41050

CAM-BRAKE

41050-017

Unavailable

41053

LEVER-BRAKE CAM

42029-039

$67.01

41068

AXLE,RR

41068-1117

$84.32

41073

AXLE,RR

41068-1117

$84.32

41085

INDICATOR,BRAKE SHOE

41085-004

Unavailable

42033

COUPLING-ASSY,RR HUB

42033-1051

$233.08

42036

SLEEVE,RR HUB L=33M/M

42036-1036

$37.43

43058

RING,HUB SPROCKET

43058-1018

$59.47

43058A

RING,REAR HUB SPROCKE

43058-1033

$40.51

59011

BELT,DRIVE,137T

59011-1012

$435.15

92001

BOLT,10X41

92001-161

Unavailable

92009

SCREW,5X10

92009-1167

Unavailable

92015

NUT,10MM

42045-005

$6.08

92015A

NUT,16MM

92015-055

$11.03

92022

WASHER,LOCK

92022-1212

$4.84

92027

COLLAR,AXLE,L=28M/M

92027-1226

$47.61

92027A

COLLAR,RR WHEEL BRG

92027-1267

$30.27

92027B

COLLAR,L=39.5

92027-1514

$27.42

92033

RING-SNAP,47MM

92033-1042

$3.22

92033A

RING-SNAP,62MM

92033-1044

$8.59

92049

SEAL-OIL,AJN40627

92050-027

$16.96

92075

DAMPER,RR HUB SHOCK,"1000"

42014-033

$114.22

92081

SPRING,BRAKE SHOE

41049-012

$7.23

92093

SEAL,BRAKE CAM

41051-003

$3.25

114

BOLT HEX HEAD 8X28

114G0828

Unavailable

550

PIN-COTTER,4.0X35

550D4035

$1.57

601

BALL BEARING,#6206

601B6206

$17.84

601A

BEARING-BALL,#6303ZZC3

601B6303ZZ

$41.16

671

O RING,65MM

671B2565

$6.75
