1984 Kawasaki KZ750-K2 (Canada Only) Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 1984 Kawasaki KZ750-K2 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

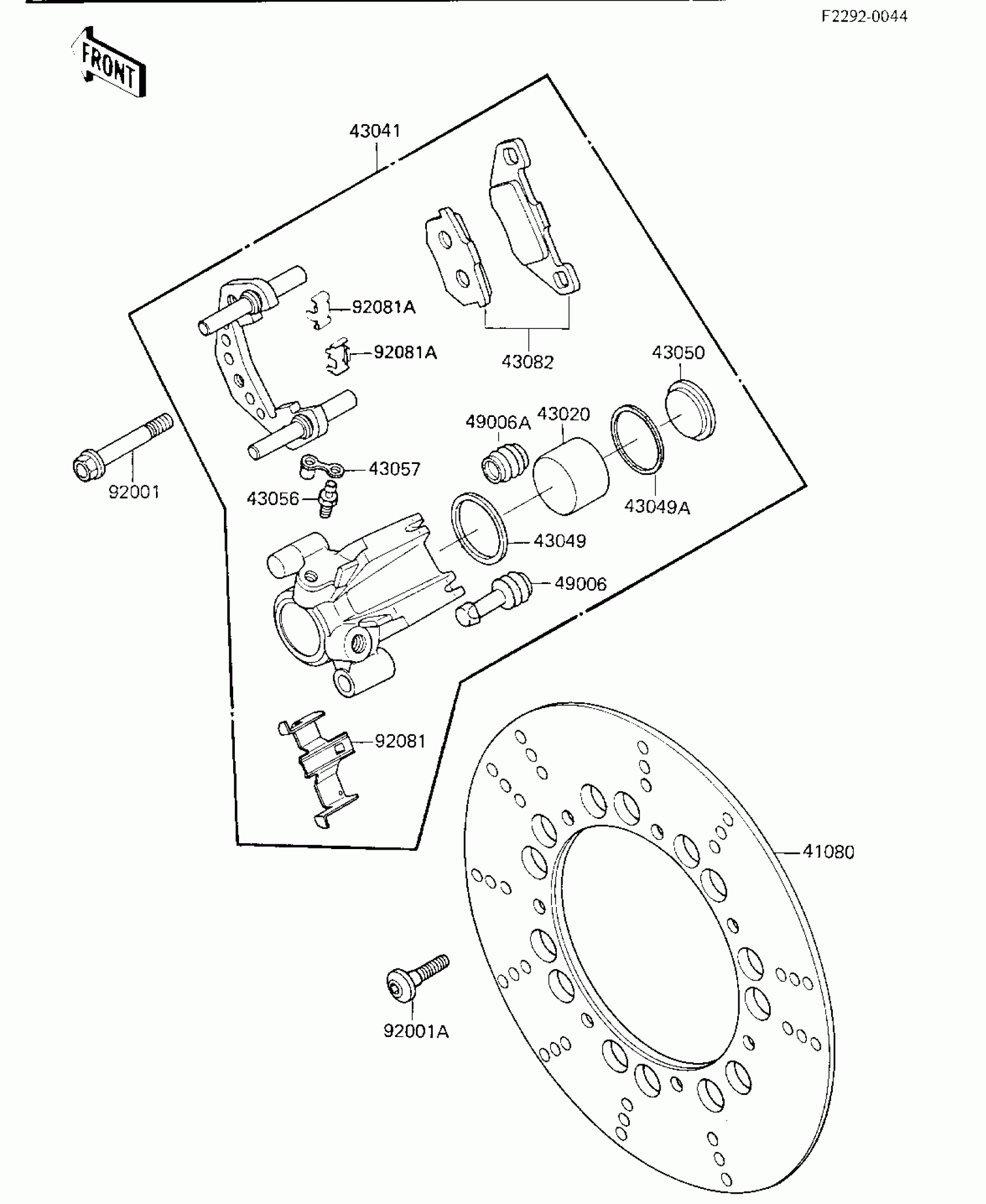

1984 Kawasaki KZ750-K2 (Canada Only) Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

4108D

DISC,FR,SILVER

41080-1129

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1066

1
Out of stock

43041

CALIPER-ASSY,FR

43041-1087

1
Out of stock

43049

PACKING,PISTON SEAL

43049-002

1
Out of stock

43049A

PACKING,PISTON

43049-1028

1
Out of stock

43050

PAD-BRAKE

43050-1058

1
Out of stock

43056

BREATHER

43056-003

1
Out of stock

43057

CAP-BREATHER

43057-003

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-1029

1
Out of stock

49006

BOOT,CALIPER

49006-1094

1
Out of stock

49006A

BOOT,CALIPER

49006-1095

1
Out of stock

92001

BOLT,FLANGED,10X47

92001-1733

1
Out of stock

92001A

BOLT,DISC PLATE,8X30

92001-1951

1
Out of stock

92081

SPRING,PAD

92081-1525

1
Out of stock

92081A

SPRING,PAD STOPPER

92081-1661

1
Out of stock
