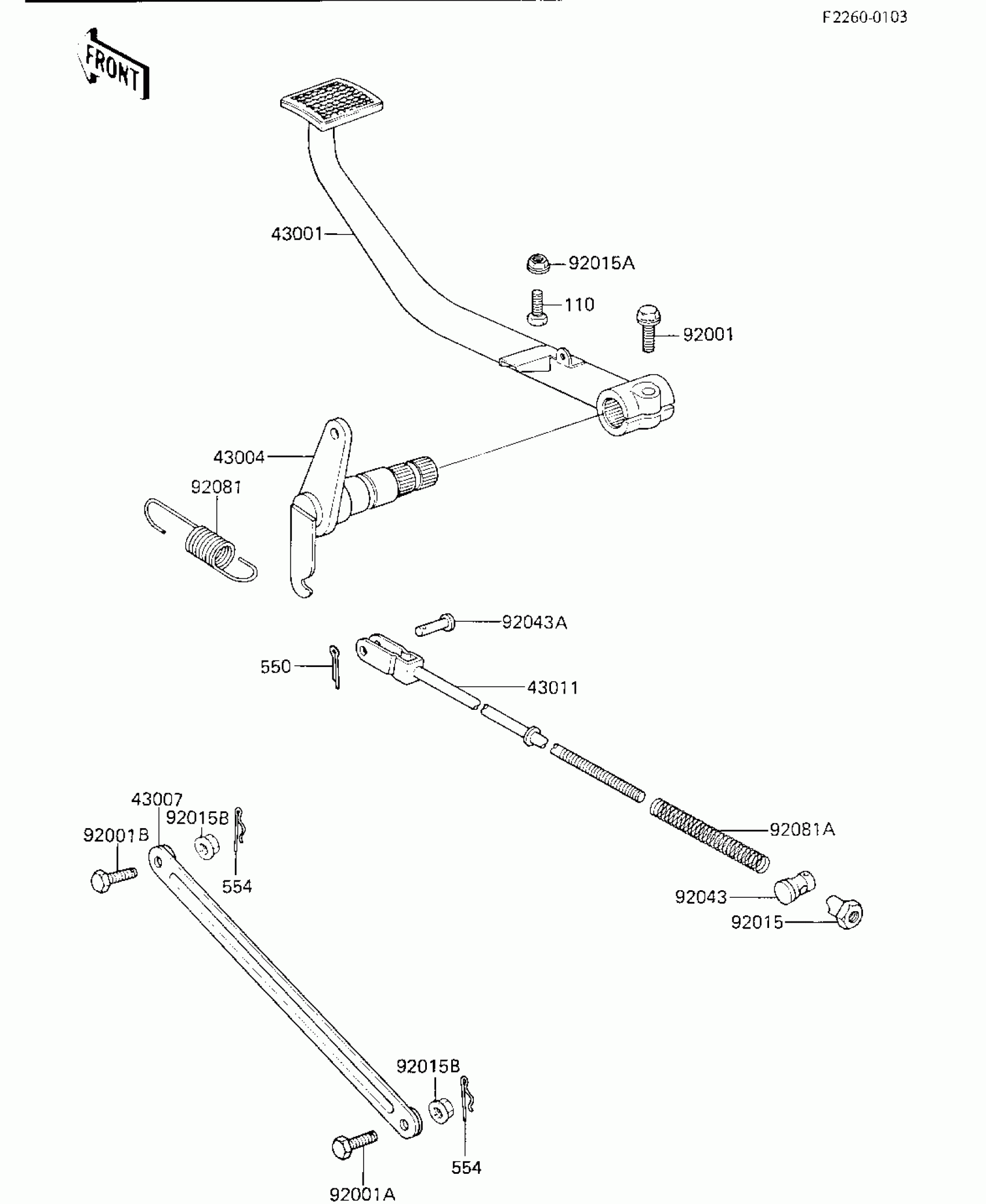

Kawasaki KZ750-K2 (Canada Only) BRAKE PEDAL/TORGQUE LINK Diagram

Description

Price

43001

LEVER-BRAKE

43001-1110

$98.44

43004

SHAFT-BRAKE

43004-1027

$34.61

43007

TORQUE ROD

43007-1016

$19.93

43011

ROD,BRAKE

43011-1016

$14.14

92001

BOLT-FLANGED,8X25

130G0825

Unavailable

92001A

BOLT,10X37

92001-1519

$7.49

92001B

BOLT TORQUE LINK FITT

92003-103

Unavailable

92015

NUT,BRAKE ROD

92015-042

$4.67

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92015B

NUT,FLANGED,10MM

92015-1428

$3.81

92043

PIN,BRAKE ROD

92043-065

$4.23

92043A

PIN,BRAKE ROD FITTING

92043-090

Unavailable

92081

SPRING,BRAKE PEDAL

43005-029

Unavailable

92081A

SPRING,BRAKE ROD

43012-001

$3.54

110

BOLT-UPSET,6X20

112G0620

Unavailable

550

PIN-COTTER,2.5X15

550D2515

$0.47

554

PIN-SNAP,8MM

554A0800

Unavailable
