1984 Kawasaki KZ750-K2 (Canada Only) Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1984 Kawasaki KZ750-K2 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

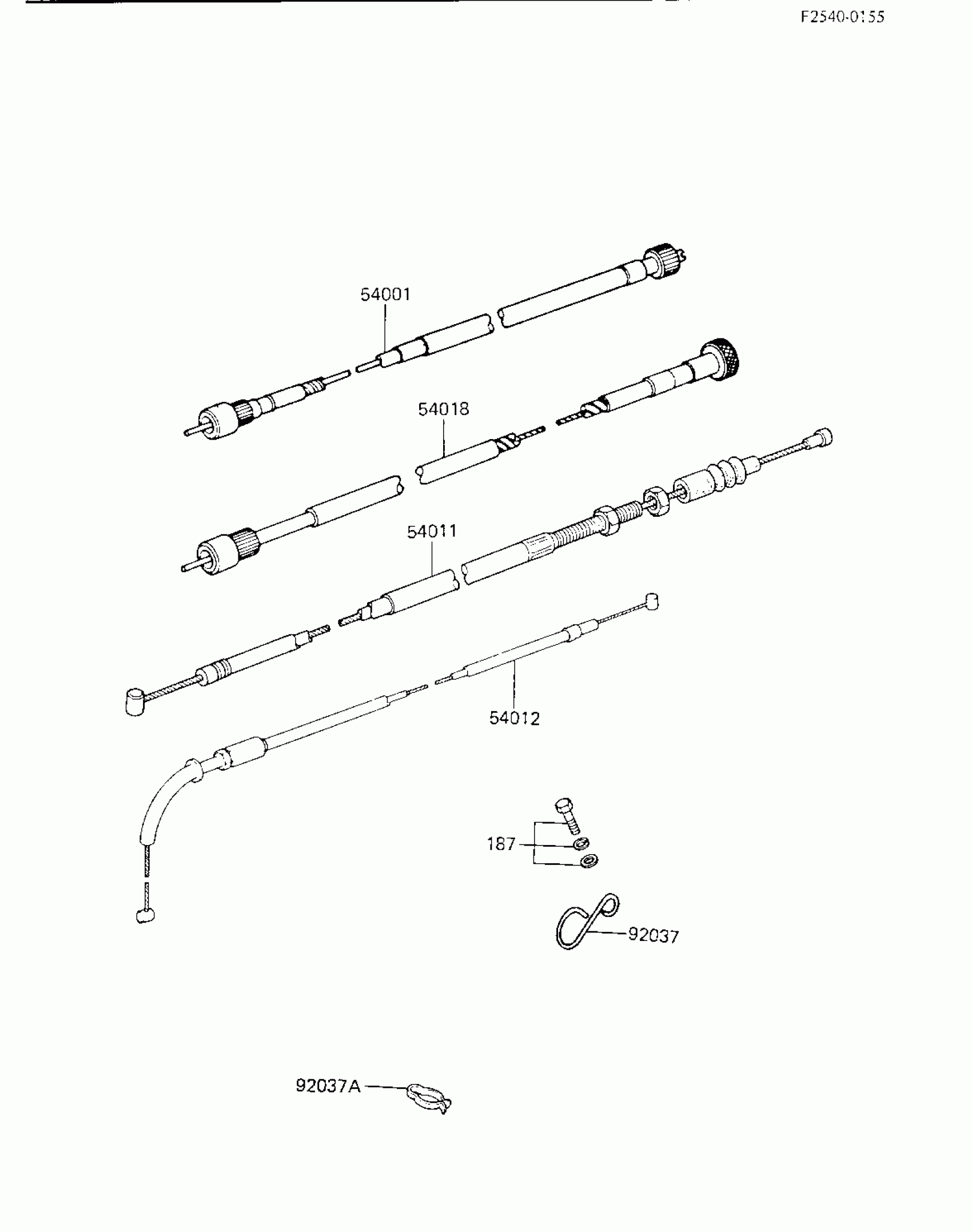

1984 Kawasaki KZ750-K2 (Canada Only) Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54001

CABLE-SPEEDOMETER

54001-1029

1
Out of stock

54011

CABLE-CLUTCH

54011-1115

1
Out of stock

54012

CABLE-THROTTLE

54012-1103

1
Out of stock

54018

CABLE-TACHOMETER

54018-1015

1
Out of stock

92037

CLAMP,CABLE

92037-092

1

$7.72

In stock

92037A

CLAMP

92037-093

1

$10.92

In stock

187

BOLT-UPSET-WSP

187B0616

1
Out of stock
