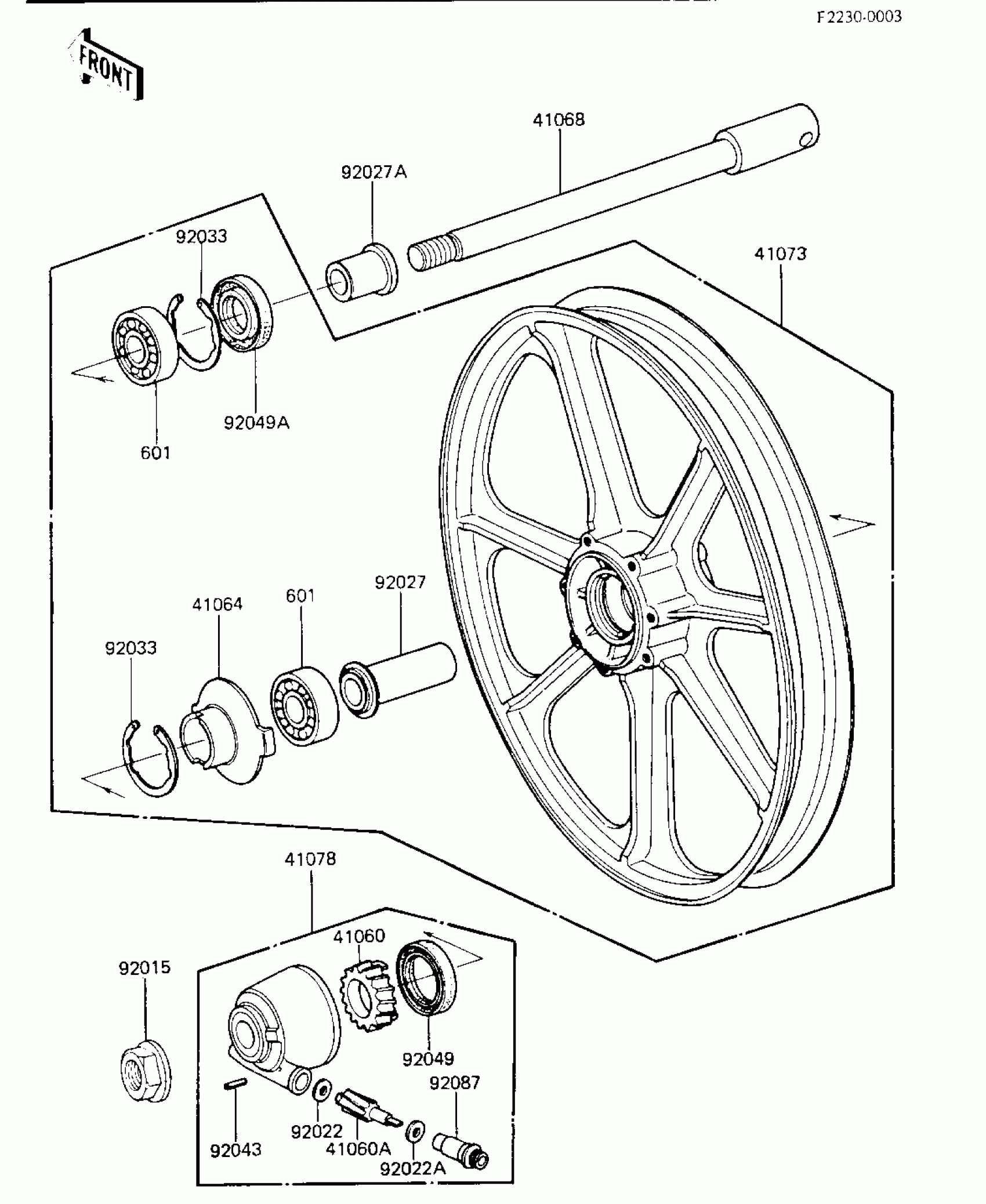

Kawasaki KZ750-K2 (Canada Only) FRONT WHEEL/HUB Diagram

Description

Price

41060

GEAR-METER SCREW,26T

41059-026

$43.35

41060A

GEAR-METER SCREW,9T

41060-1016

Unavailable

41064

RECEIVER-SPEEDOMETER

41064-1006

$11.33

41068

AXLE,FRONT,L=204M/M

41068-1009

$70.57

41073

WHEEL-ASSY,FR,F.BLACK

41073-1080-21

$557.45

41078

CASE-ASSY-METER GEAR

41078-1013

$127.25

92015

NUT,14MM

92015-1407

$7.54

92022

WASHER,5.1X9X0.4

41063-001

$4.17

92022A

WASHER,5.1X9X0.4

41063-001

$4.17

92027

COLLAR,L=55

92027-1223

$14.71

92027A

COLLAR,L=30

92027-1225

$16.49

92033

RING-SNAP,42MM

92033-1041

$4.64

92043

PIN,SPRING

41082-001

$3.53

92049

SEAL-OIL,BJN30427-C3

92049-1057

$7.08

92049A

SEAL-OIL,BJN22425

92049-1058

$7.41

92087

BUSHING-METER GEAR

92087-1002

$22.34

601

UNAVAILABLE IN PRICE BOOK

601B63020

Unavailable
