1984 Kawasaki KZ750-K2 (Canada Only) Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1984 Kawasaki KZ750-K2 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

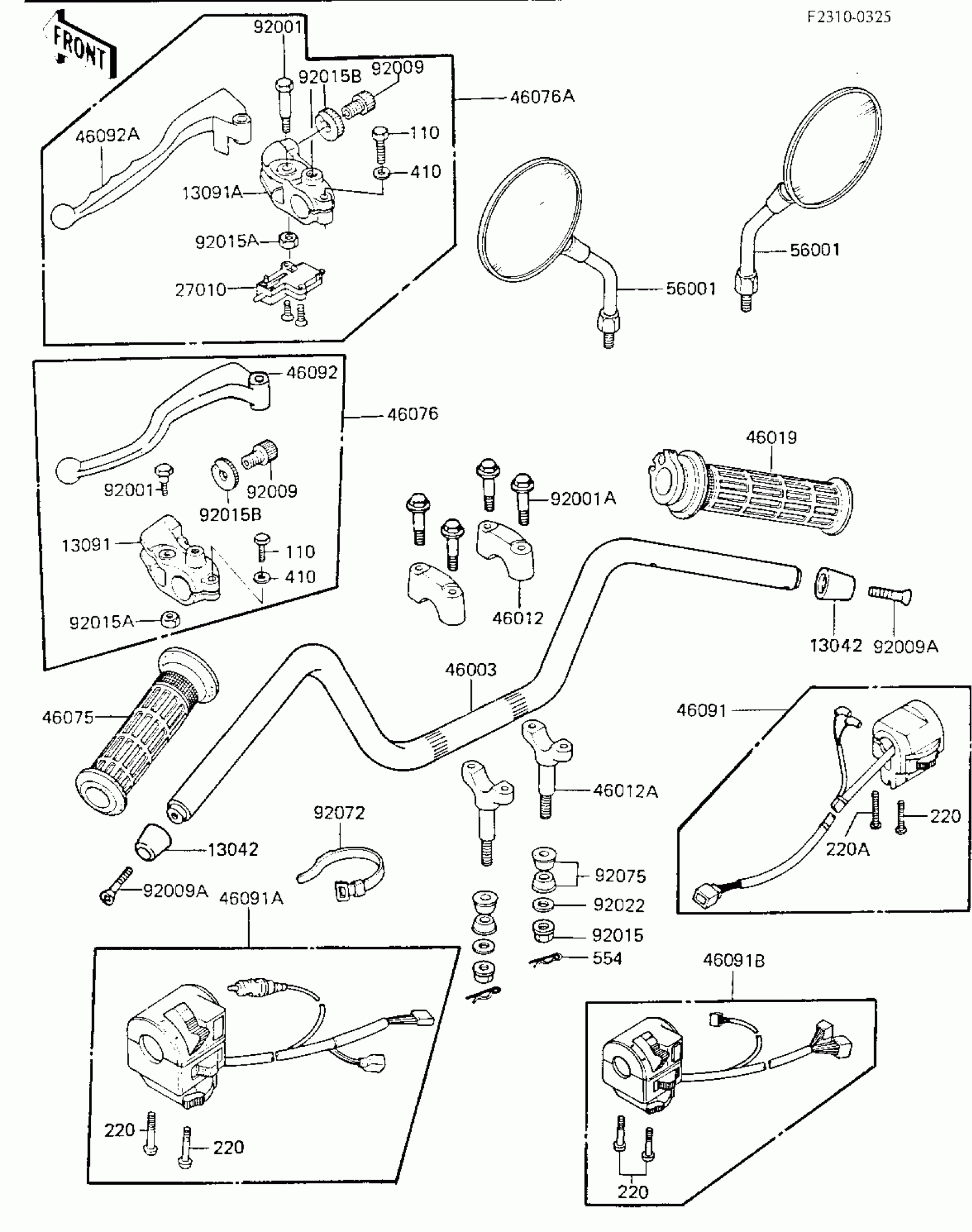

1984 Kawasaki KZ750-K2 (Canada Only) Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT,HANDLE

13042-1005

1
Out of stock

13091A

HOLDER,CLUTCH LEVER

13091-1272

1
Out of stock

27010

SWITCH,CLUTCH,BLACK

27010-1094

1
Out of stock

46003

HANDLE

46003-1114

1
Out of stock

46012

HOLDER-HANDLE,UPP

46012-008

1
Out of stock

46012A

HOLDER-HANDLE,LWR

46012-010

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-1021

1
Out of stock

46075

GRIP,LH

46075-1028

1
Out of stock

46076A

LEVER-ASSY-GRIP,CLUTCH

46076-1105

1
Out of stock

46091

HOUSING-ASSY-CNTRL,RH

46091-1214

1
Out of stock

46091B

HOUSING-ASSY-CONTROL,LH (Canad

46091-1337

1
Out of stock

46092A

LEVER-GRIP,CLUTCH

46092-1103

1
Out of stock

56001

MIRROR-ASSY

56001-1340

1
Out of stock

92001

BOLT,CLUTCH LEVER,BLACK

92001-1548

1
Out of stock

92001A

BOLT,FLANGED,8X35

92001-1910

1
Out of stock

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

1
Out of stock

92009A

SCREW,8X45

92009-1257

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1428

1
Out of stock

92015A

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92015B

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

1
Out of stock

92022

WASHER-HANDLEBAR FIT

92022-196

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92075

DAMPER RUBBER,HANDLE

92075-275

1
Out of stock

110

UNAVAILABLE IN PRICE BOOK

11000622

1
Out of stock

220

SCREW-PAN-CROS

220B0535

1
Out of stock

220A

SCREW-PAN-CROS

220B0540

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

1
Out of stock

554

PIN-SNAP,8MM

554A0800

1
Out of stock
