1980 Kawasaki KZ750-E1 Stands Diagram

← All diagrams

Find the part on the Stands diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

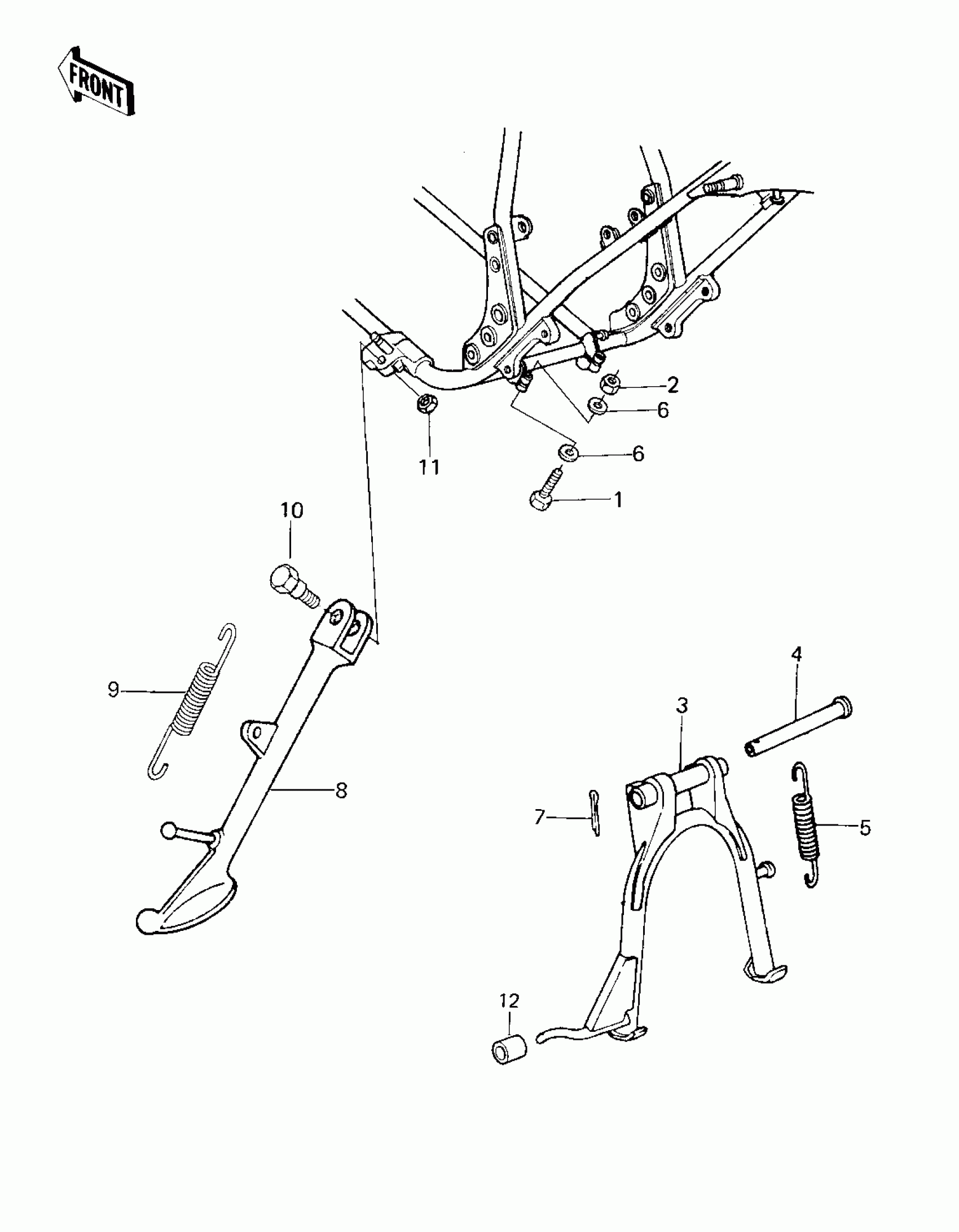

1980 Kawasaki KZ750-E1 Stands Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT

92001-1578

1
Out of stock

2

NUT,8MM

311B0800

1
Out of stock

3

STAND-MAIN

34011-1041

1

$88.27

In stock

4

SHAFT-STAND,CNT

34019-015

1

$16.32

In stock

5

SPRING,STAND,CNT

34023-016

1

$15.59

In stock

6

WASHER PLAIN 8MM

410B0800

1
Out of stock

7

PIN-COTTER,3.0X30

550D3030

1
Out of stock

8

STAND-SIDE

34024-1103

1

$75.07

In stock

9

SPRING,STAND

34025-005

1

$6.03

In stock

10

BOLT,SIDE STAND

92003-079

1
Out of stock

11

NUT,LOCK,10MM

92019-021

1
Out of stock

12

DAMPER RUBBER,MAIN

92075-1142

1
Out of stock
