1980 Kawasaki KZ750-E1 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

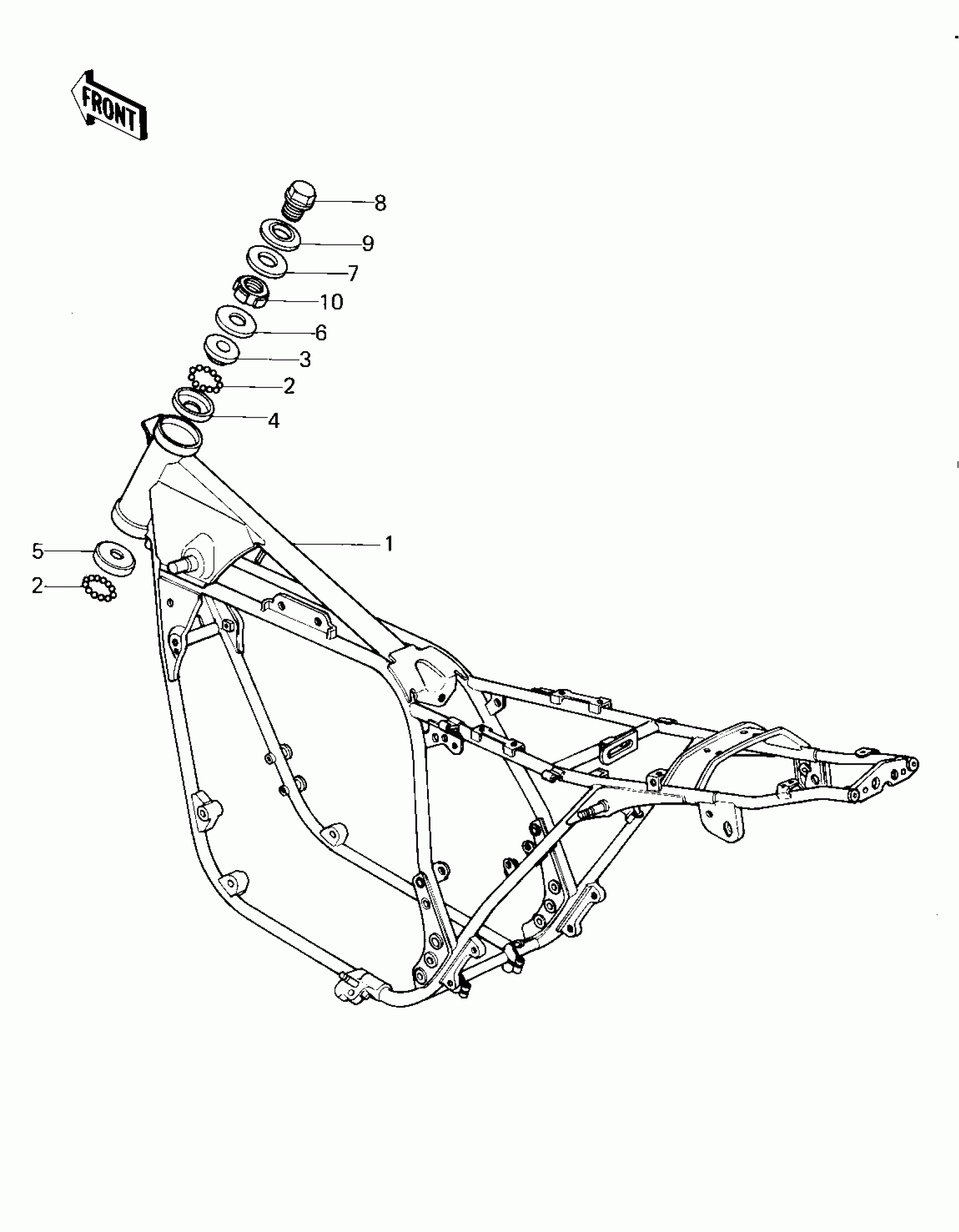

1980 Kawasaki KZ750-E1 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

32002-1112

1
Out of stock

1

FRAME-COMP

32002-1355

—
Out of stock

2

BALL-STEEL,1/4

600A0800

1
Out of stock

3

RACE,STEERING STEM BEARING

92047-011

1
Out of stock

4

RACE,STEERING STEM BEARING

92048-006

1
Out of stock

5

RACE,STEERING STEM BEARING

92048-008

1
Out of stock

6

CAP,STEERING STEM

46098-016

1
Out of stock

7

WASHER,WAVE

46100-003

1
Out of stock

8

BOLT,16X25.5

92007-031

1
Out of stock

9

WASHER,16X41X4

92022-230

1
Out of stock

10

NUT,30MM

92090-007

1
Out of stock
