1980 Kawasaki KZ750-E1 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

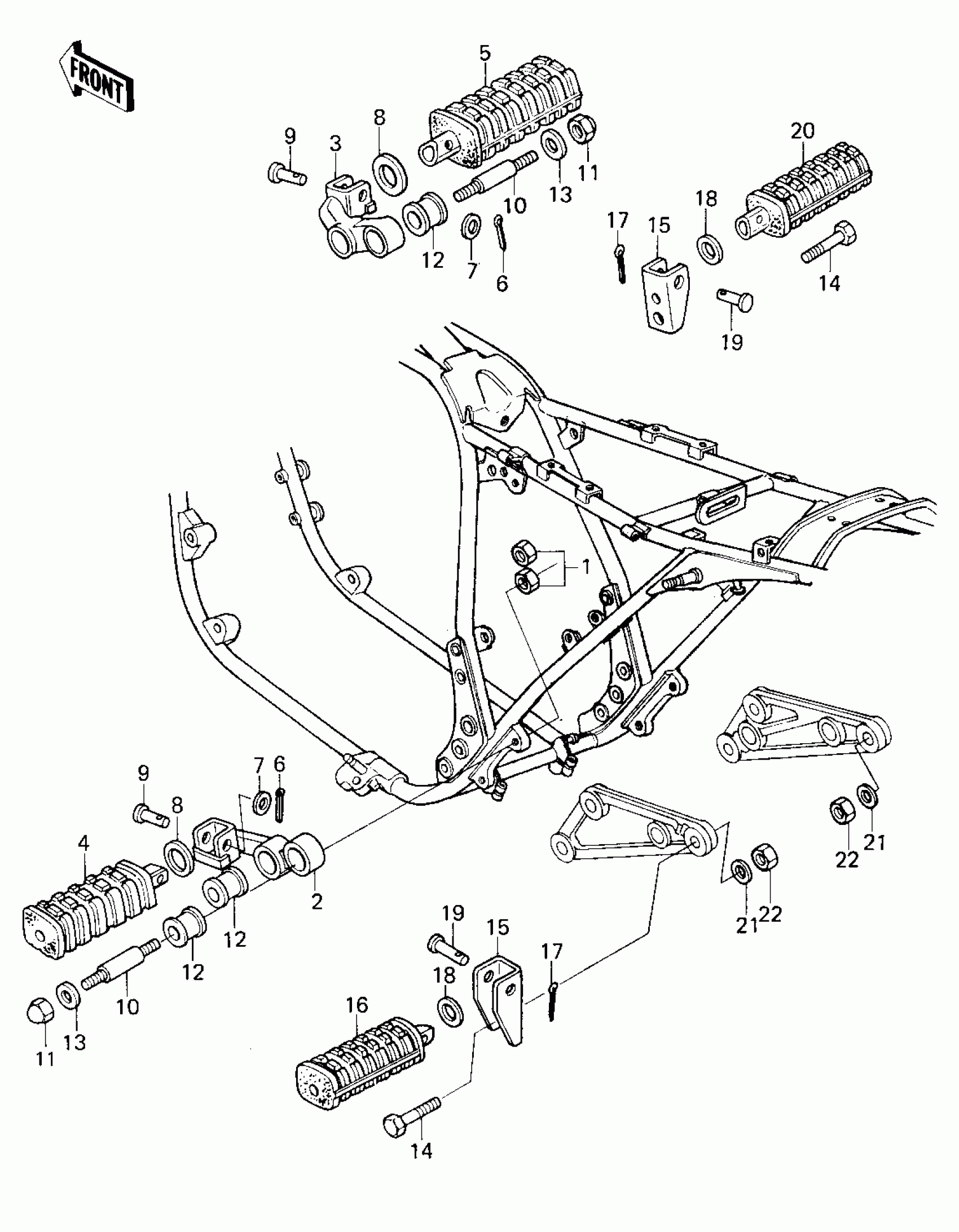

1980 Kawasaki KZ750-E1 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

2

BRACKET,FTRST STEP LH

34003-1051

1
Out of stock

3

BRACKET,FTRST STEP LH

34003-1067

1
Out of stock

4

STEP-ASSY,FR,RH

34028-1018

1
Out of stock

5

STEP-ASSY,FR,RH

34028-1018

1
Out of stock

6

PIN COTTER 2.5X16

550D2516

1
Out of stock

7

WASHER,8.5X13X1

92022-1028

1
Out of stock

8

WASHER,25X36X2.3

92022-250

1
Out of stock

9

PIN,8X35.5

92043-115

1
Out of stock

10

STUD,FOOTREST BAR FI

92004-048

1
Out of stock

11

NUT,CAP AND LOCK,8MM

92019-013

1
Out of stock

12

DAMPER RUBBER,FOOTRE

92075-293

1
Out of stock

13

CAP,FOOTRESTBAR

92102-010

1
Out of stock

14

BOLT,HEX HEAD 10X35

92001-1252

1
Out of stock

15

HOLDER,REAR FOOTREST

34003-1025

1
Out of stock

16

STEP,RR,LH

34028-1009

1
Out of stock

17

PIN-COTTER,2.0X12

550D2012

1
Out of stock

18

WASHER,22.5X30X2.6

92022-181

1
Out of stock

19

PIN,6X28

92043-1464

1
Out of stock

20

STEP,RR,RH

34028-1010

1
Out of stock

21

WASHER-PLAIN,10MM

411B1000

1
Out of stock

22

NUT,LOCK,10MM

92019-021

1
Out of stock
