1980 Kawasaki KZ750-E1 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

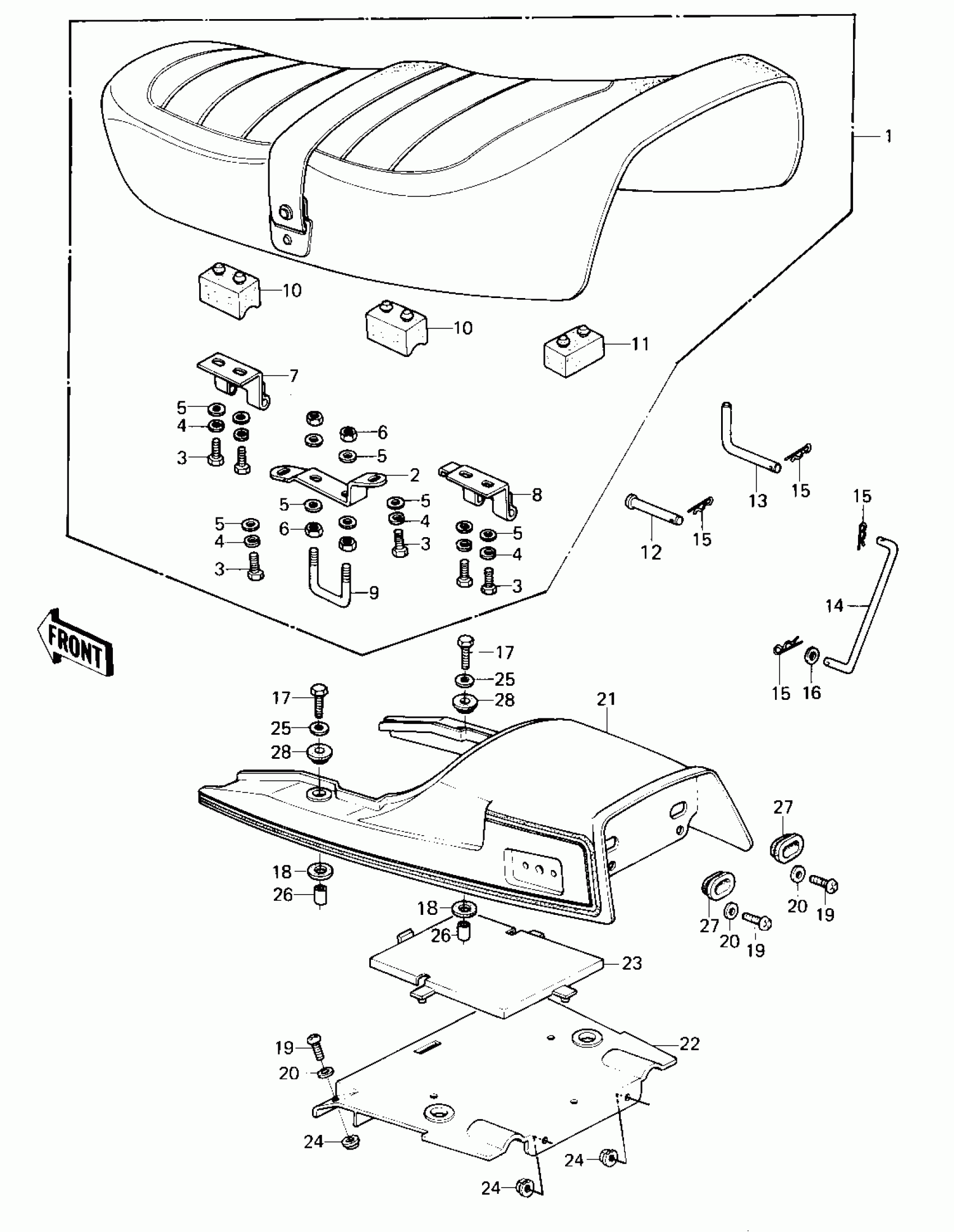

1980 Kawasaki KZ750-E1 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT-ASSY,DUAL

53001-1151

1

$398.21

In stock

2

BRACKET,SEAT CATCH

11034-1625

1
Out of stock

3

BOLT-UPSET,6X16

112G0616

1
Out of stock

4

WASHER SPRING 6MM

461F0600

1
Out of stock

5

WASHER PLAIN 6MM

411B0600

1
Out of stock

6

NUT 6MM

311B0600

1
Out of stock

7

HINGE,BLACK

53009-017-10

1
Out of stock

8

HING,RR

53009-1021

1

$16.07

In stock

9

HOOK,SEAT

53056-002

1

$15.71

In stock

10

DAMPER

92075-099

1
Out of stock

11

DAMPER RUBBER,SEAT

92075-139

1
Out of stock

12

PIN,6X48

53011-002

1

$4.72

In stock

13

PIN,DUAL SEAT PIVOT

53011-008

1
Out of stock

14

STOPPER,SEAT

53054-006

1
Out of stock

15

PIN,SNAP

554A0600

1
Out of stock

16

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

17

BOLT-UPSET,6X20

112G0620

1
Out of stock

18

DAMPER,FEMALE

92075-175

1
Out of stock

19

SCREW-PAN-CROS

220B0514

1
Out of stock

20

WASHER PLAIN 5MM

410B0500

1
Out of stock

21

COVER,SEAT,L.D.RED

39012-1008-7Y

1

$227.60

In stock

22

COVER,STORAGE

39012-1009

1
Out of stock

23

COVER,STORAGE

39012-1004

1
Out of stock

24

NUT,5M/M

92015-1025

1
Out of stock

25

WASHER,7X24X1.6

92022-228

1
Out of stock

26

COLLAR

92027-241

1
Out of stock

27

GROMMET,SIDE COVER

92071-072

1
Out of stock

28

RUBBER,FENDER COVER

92075-174

1
Out of stock
