1980 Kawasaki KZ750-E1 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

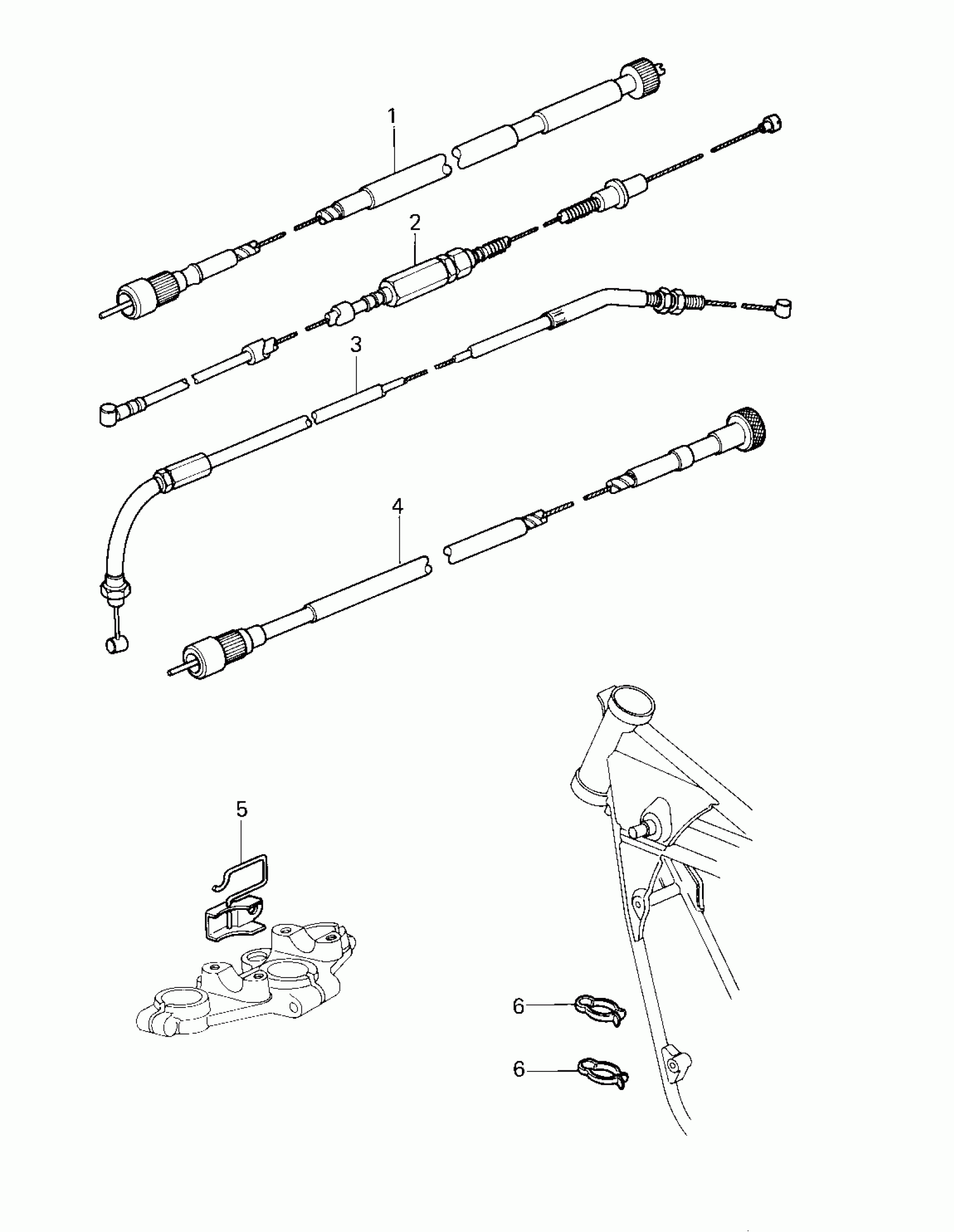

1980 Kawasaki KZ750-E1 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE,SPEEDOMETER

54001-1014

1
Out of stock

2

CABLE,CLUTCH

54011-087

1
Out of stock

3

CABLE,THROTTLE

54012-1058

1
Out of stock

4

CABLE,TACHOMETER

54018-1008

1

$48.35

In stock

5

CLAMP,THROTTLE CABLE

92037-1189

1
Out of stock

6

CLAMP

92037-093

1
Out of stock
