1980 Kawasaki KZ750-E1 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

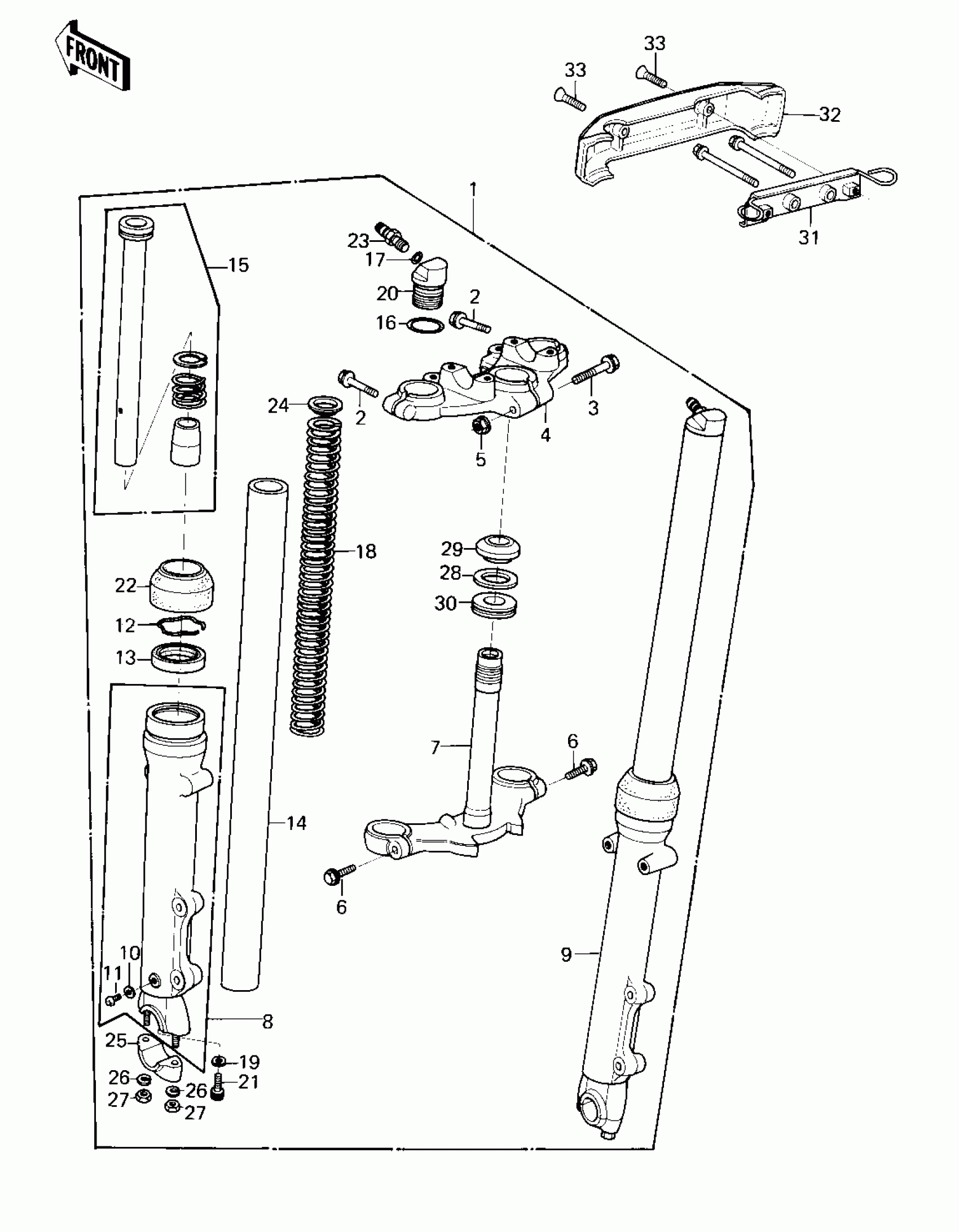

1980 Kawasaki KZ750-E1 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK-FRONT

44001-1123

1
Out of stock

2

BOLT-FLANGED,8X45

131G0845

1
Out of stock

3

BOLT-FLANGED,8X55

130G0855

1
Out of stock

4

HEAD,STEERING STEM

44039-1028

1
Out of stock

5

NUT,FLANGED,8MM

92015-1022

1
Out of stock

6

BOLT,FLANGED,12X35

131G1235

1
Out of stock

7

STEM,STEERING

44037-1039

1
Out of stock

8

1

$497.53

In stock

9

1

$440.47

In stock

10

GASKET,FORK DRAIN PLUG

44045-002

1
Out of stock

11

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

12

RING-SNAP,FORK OIL

92033-1100

1
Out of stock

13

SEAL-OIL,FRONT FORK

92049-1101

1
Out of stock

14

PIPE-FORK INNER

39093-1067

1

$431.59

In stock

15

CYLINDER-FORK

44023-1009

1
Out of stock

16

RING-O,FORK TOP

92055-1012

1
Out of stock

17

"0" RING,AIR VALVE

92055-1018

1
Out of stock

18

SPRING,FORK

44026-1045

1
Out of stock

19

GASKET

44045-057

1
Out of stock

20

CAP,FORK TOP

44029-1005

1
Out of stock

21

BOLT,SOCKET,FORK CYLINDER

44041-040

1
Out of stock

22

DUST SHIELD,FORK

92093-1037

1
Out of stock

23

VALVE ASSY,AIR

16126-1003

1
Out of stock

24

GUIDE,FORK SPRING

44028-033

1
Out of stock

25

HOLDER-FRONT AXLE

44063-011

1
Out of stock

26

WASHER SPRING 8MM

461F0800

1
Out of stock

27

NUT,LOCK,8MM

92015-1124

1
Out of stock

28

WASHER,30.5X50X0.6

92022-231

1
Out of stock

29

RACE,STEERING STEM BEARING

92047-012

1
Out of stock

30

SEAL-OIL,STEERING STEM

92056-003

1
Out of stock

31

BRACKET,FR FORK COVER

11034-1765

1
Out of stock

32

COVER,FORK

44033-1053

1
Out of stock

33

SCREW-CSK-RD-CROS

222C0518

1
Out of stock
