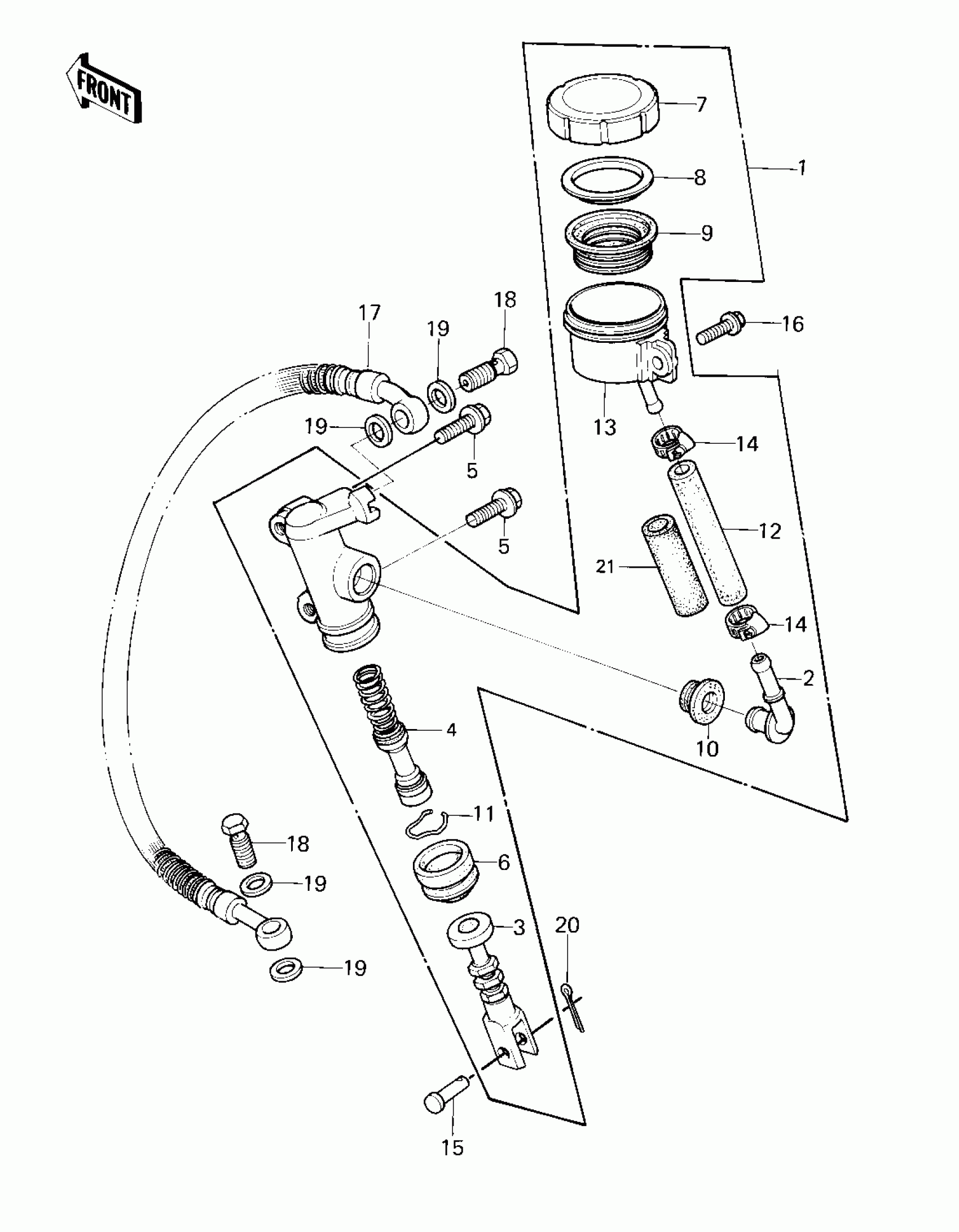

Kawasaki KZ750-E1 REAR MASTER CYLINDER ('80 KZY 50-E1) Diagram

#

Description
Price

1

CYLINDER ASSY,RR MAST

43015-1054

Unavailable

1

CYLINDER ASSY MSTR RR

43015-1072

$295.84

2

CONNECTOR

13159-1005

Unavailable

3

ROD ASSY,BRAKE

43010-1004

$133.91

4

PISTON ASSY

43020-1019

$96.86

5

BOLT,FLANGED,8X28

92001-1095

$5.71

6

DUST COVER

49016-1031

Unavailable

7

CAP,OIL CUP

43026-1010

$37.12

8

PLATE-DIAPHRAGM

43027-1005

$5.66

9

DIAPHRAGM

43028-1016

$21.88

10

PACKING

43049-1008

$10.53

11

RING,ROD STOPPER

43058-004

$5.83

12

HOSE,BRAKE,8X12X175.5

43059-1058

$12.27

12

HOSE,BRAKE,8X12X163

43059-1066

Unavailable

13

RESERVOIR

43078-1008

Unavailable

14

CLAMP,BRAKE HOSE

92037-1154

Unavailable

15

PIN,8X16

92043-1013

$7.54

16

BOLT,FLANGED,6X20

130B0620

Unavailable

17

HOSE-BRAKE,L=395

43059-1194

$67.31

18

BOLT,OIL,L=23

92002-1888

$4.15

19

WASHER,10.5X15X1.5

43067-001

$1.57

20

PIN COTTER 2.0X15

550D2015

Unavailable

21

HOSE,BRAKE,13X18X139

43059-1068

$6.73
