1980 Kawasaki KZ750-E1 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1980 Kawasaki KZ750-E1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

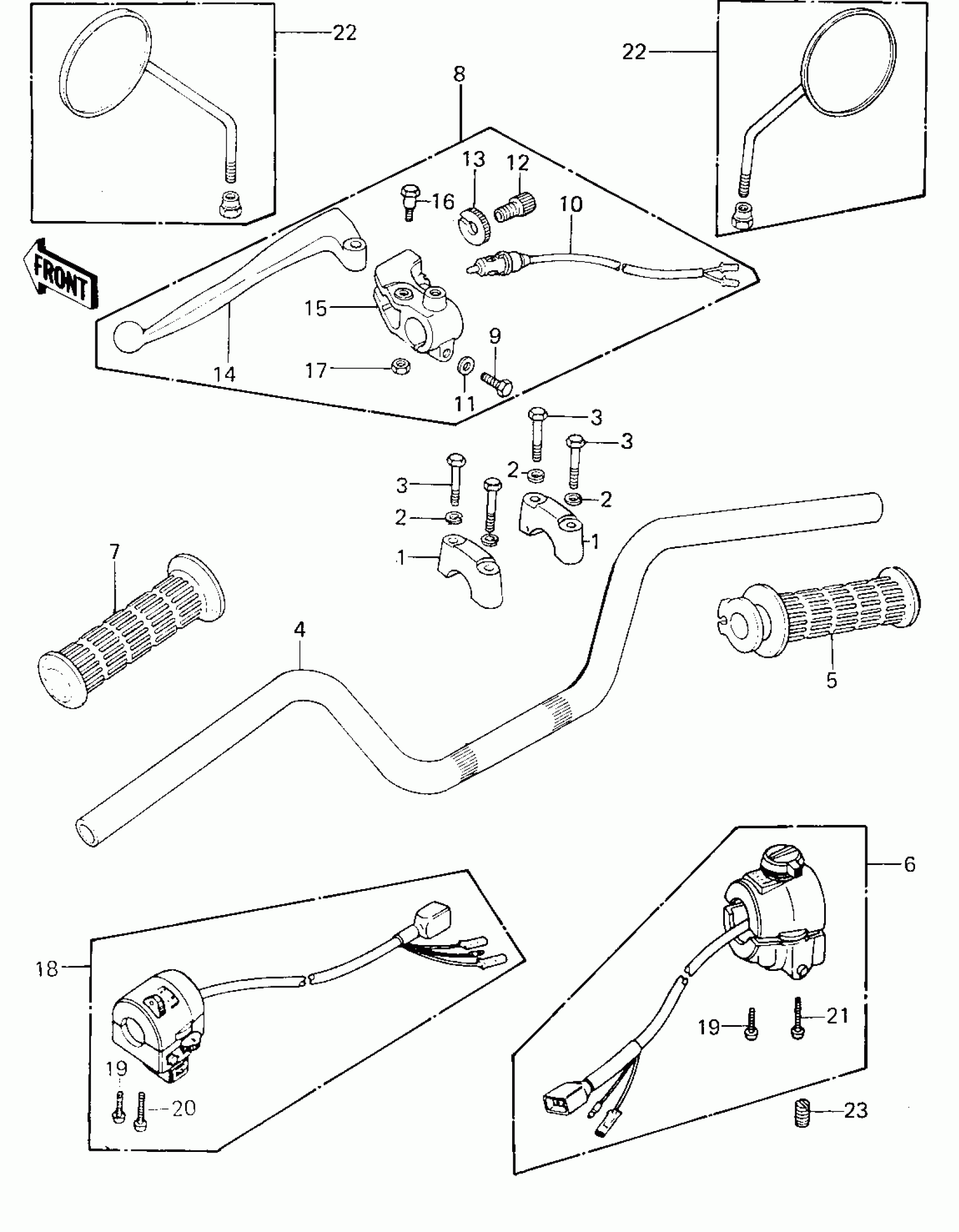

1980 Kawasaki KZ750-E1 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER-HANDLE,UPP

46012-008

1

$34.49

In stock

2

WASHER SPRING 8MM

461F0800

1
Out of stock

3

BOLT 8X38

92001-1405

1
Out of stock

4

HANDLEBAR

46003-1063

1
Out of stock

5

GRIP ASSY,THROTTLE

46019-038

1
Out of stock

6

HOUSING ASSY,CONT,R.H

46091-1047

1
Out of stock

7

RUBBER,L.H GRIP

46075-028

1

$40.75

In stock

8

LEVER ASSY,CLUTCH

46076-054

1

$104.73

In stock

9

BOLT HEX HEAD 6X25

110N0625

1
Out of stock

10

SWITCH,CLUTCH

27043-002

1
Out of stock

11

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

12

1

$12.92

In stock

13

NUT,CABLE ADUST NUT

46056-007

1
Out of stock

14

LEVER-GRIP,CLUTCH

46092-023

1
Out of stock

15

HOLDER,CLUTCH LEVER

46094-019

1
Out of stock

16

BOLT,HEX HEAD

92007-047

1
Out of stock

17

NUT,LOCK 6MM

92017-014

1
Out of stock

18

HOUSING ASSY,CONT,L.H

46091-1048

1
Out of stock

19

SCREW PAN HEAD 5X30

220B0530

1
Out of stock

20

SCREW-PAN-CROS

220B0535

1
Out of stock

21

SCREW-PAN-CROS

220B0540

1
Out of stock

22

MIRROR-ASSY

56001-1342

1
Out of stock

23

PLUG,B,KICKSTARTER

92066-061

1
Out of stock
