1980 Kawasaki KZ650-F1 Mufflers Diagram

← All diagrams

Find the part on the Mufflers diagram for your 1980 Kawasaki KZ650-F1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

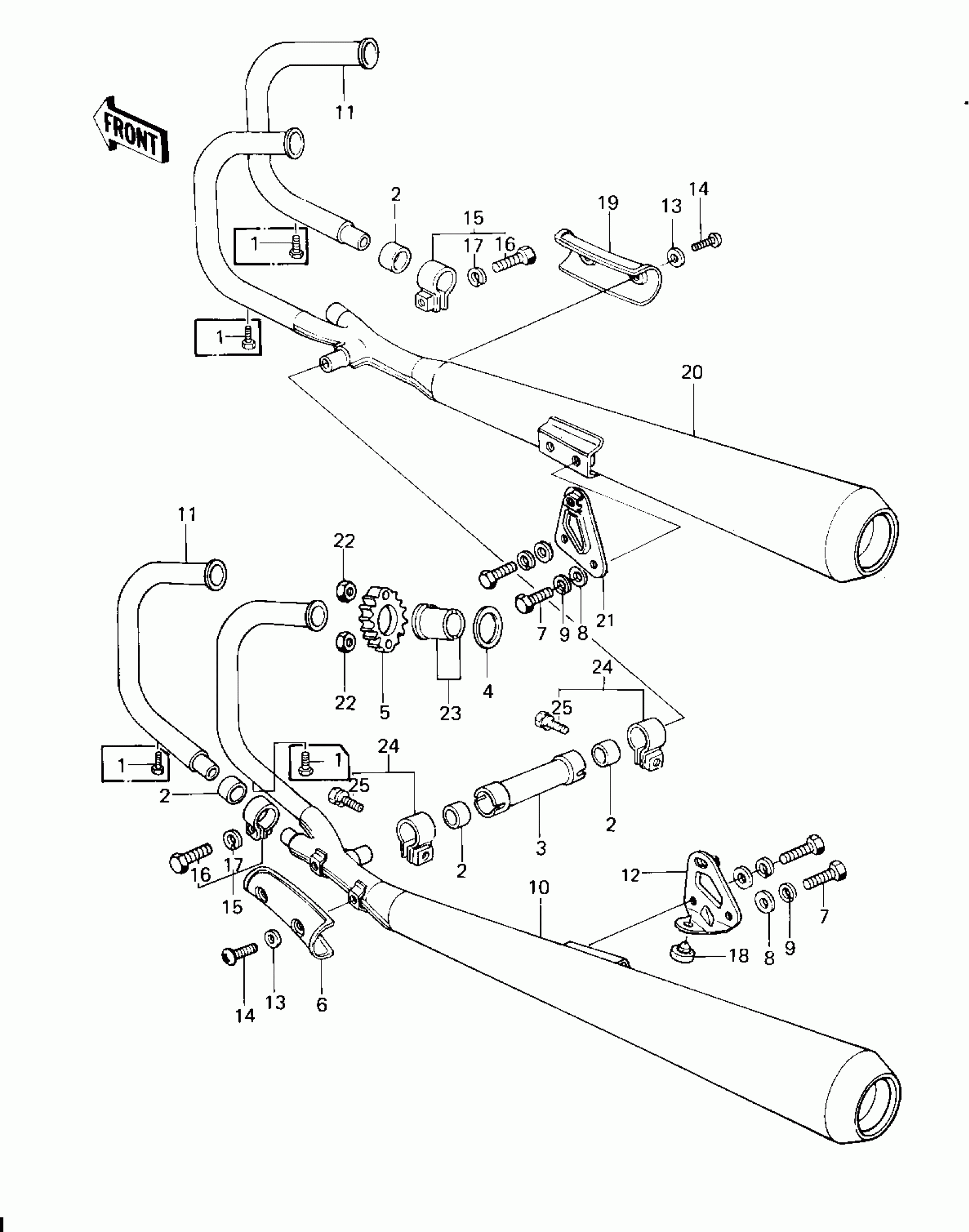

1980 Kawasaki KZ650-F1 Mufflers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT (6X10)

110R0610

1
Out of stock

2

GASKET,MUFFLER CONNEC

11060-1051

1
Out of stock

3

PIPE,MUFFLER CONNECTING

32032-1669

1
Out of stock

4

GASKET,EXHAUST PIPE H

11009-1866

1
Out of stock

5

HOLDER,EXHAUST PIPE

18069-1006

1
Out of stock

6

COVER,MUFFLER,L.H.

14025-1099

1
Out of stock

7

BOLT-SMALL-UPSET,8X16

115G0816

1
Out of stock

8

WASHER PLAIN 8MM

411B0800

1
Out of stock

9

WASHER SPRING 8MM

461F0800

1
Out of stock

10

MUFFLER ASSY,L.H

18001-1002

1
Out of stock

11

PIPE,EXHAUST,#1

18049-1013

1
Out of stock

12

BRACKET,MUFFLER,L.H.

32069-1040

1
Out of stock

13

WASHER-PLAIN,6MM

411D0600

1
Out of stock

14

SCREW,PAN HEAD,6X8

92011-039

1
Out of stock

15

CLAMP,MUFFLER

92037-1220

1
Out of stock

16

BOLT-SMALL-UPSET 8X25

115G0825

1
Out of stock

17

WASHER SPRING 8MM

461F0800

1
Out of stock

18

DAMPER

92075-015

1
Out of stock

19

COVER,MUFFLER,R.H.

14025-1100

1
Out of stock

20

MUFFLER ASSY,R.H

18001-1003

1
Out of stock

21

BRACKET,MUFFLER,R.H.

32069-1039

1
Out of stock

22

NUT,LOCK 6MM

92017-014

1
Out of stock

23

COLLAR,EXHAUST PIPE

92027-264

1
Out of stock

24

CLAMP,PIPE,35MM

92037-1223

1
Out of stock

25

BOLT,8X30

92001-1379

1
Out of stock
