1980 Kawasaki KZ650-F1 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1980 Kawasaki KZ650-F1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

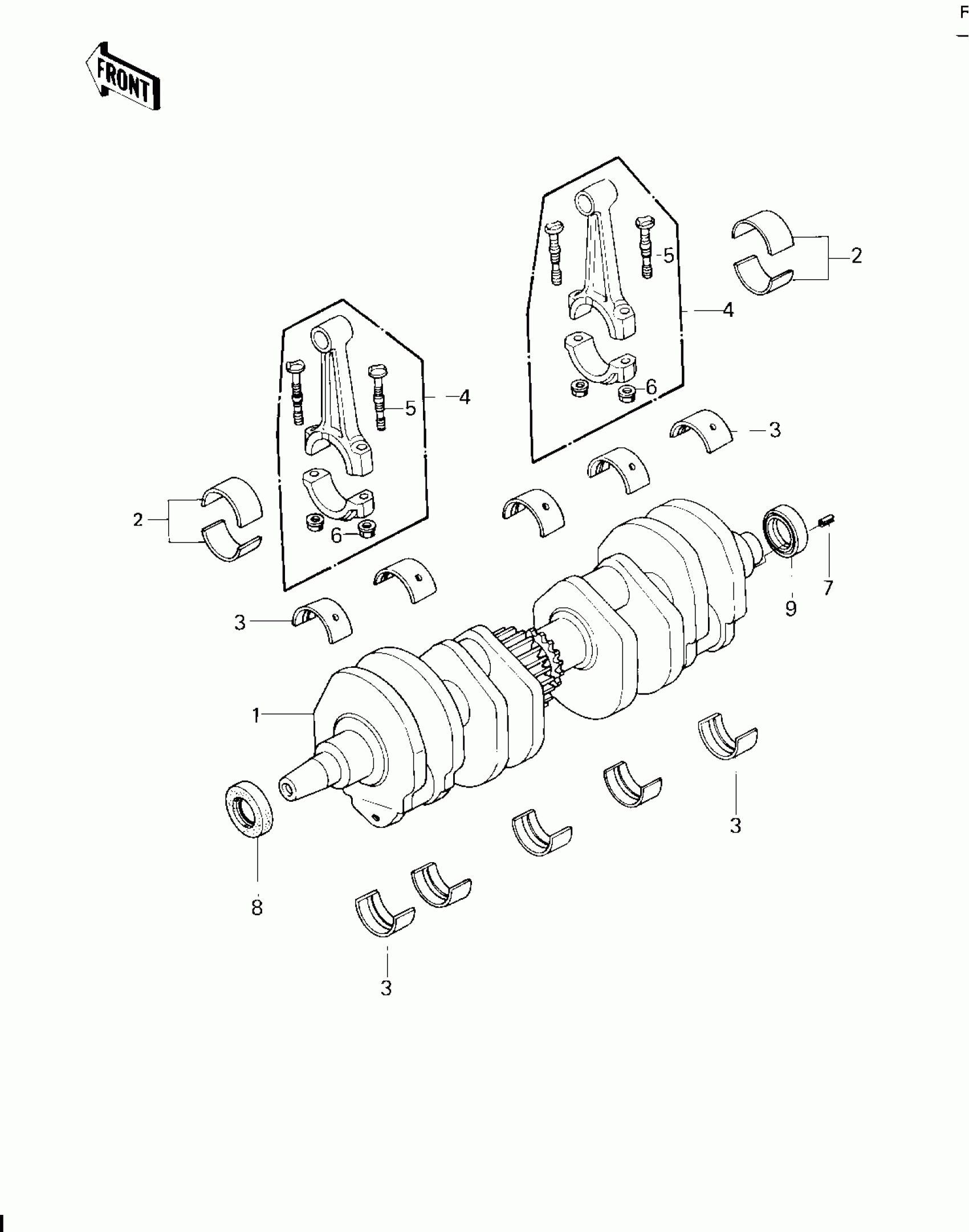

1980 Kawasaki KZ650-F1 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

13037-069

1
Out of stock

2

METAL,CONNECT ROD BRG

13034-050

1
Out of stock

2

METAL,CONNECT ROD BRG

13034-051

1
Out of stock

2

METAL,CONNECT ROD BRG

13034-052

1
Out of stock

3

BUSHING,CRANKSHAFT,BLUE

92028-1100

1
Out of stock

3

BUSHING,CRANKSHAFT,BLACK

92028-1101

1
Out of stock

3

BUSHING,CRANKSHAFT,BLACK

92028-1101

1
Out of stock

3

BUSHING,CRANKSHAFT,BROWN

92028-1102

1
Out of stock

3

BUSHING,CRANKSHAFT,BROWN

92028-1102

1
Out of stock

4

CONNECTING ROD ASSY

13251-1003-HH

1
Out of stock

4

CONNECTING ROD ASSY,J

13251-1007-JJ

1
Out of stock

4

CONNECTING ROD ASSY,J

13251-1007-JJ

1
Out of stock

4

CONNECTING ROD ASSY,J

13251-1007-JJ

1
Out of stock

4

CONNECTING ROD ASSY,J

13251-1007-JJ

1
Out of stock

4

CONNECTING ROD ASSY,J

13251-1007-JJ

1
Out of stock

4

CONNECTING ROD ASSY,K

13251-1007-KK

1
Out of stock

5

BOLT,CONNECTING ROD,7MM

92001-1793

1
Out of stock

5

BOLT,CONNECTING ROD,8MM

92001-1887

1
Out of stock

6

NUT,7MM

92016-060

1
Out of stock

6

NUT,FLANGED,8MM

92015-1311

1
Out of stock

7

PIN-SPRING,4X8

555A0408

1
Out of stock

8

OIL SEAL,HSCY22397

92050-080

1
Out of stock

9

SEAL-OIL,HSCY25397

92050-081

1
Out of stock
