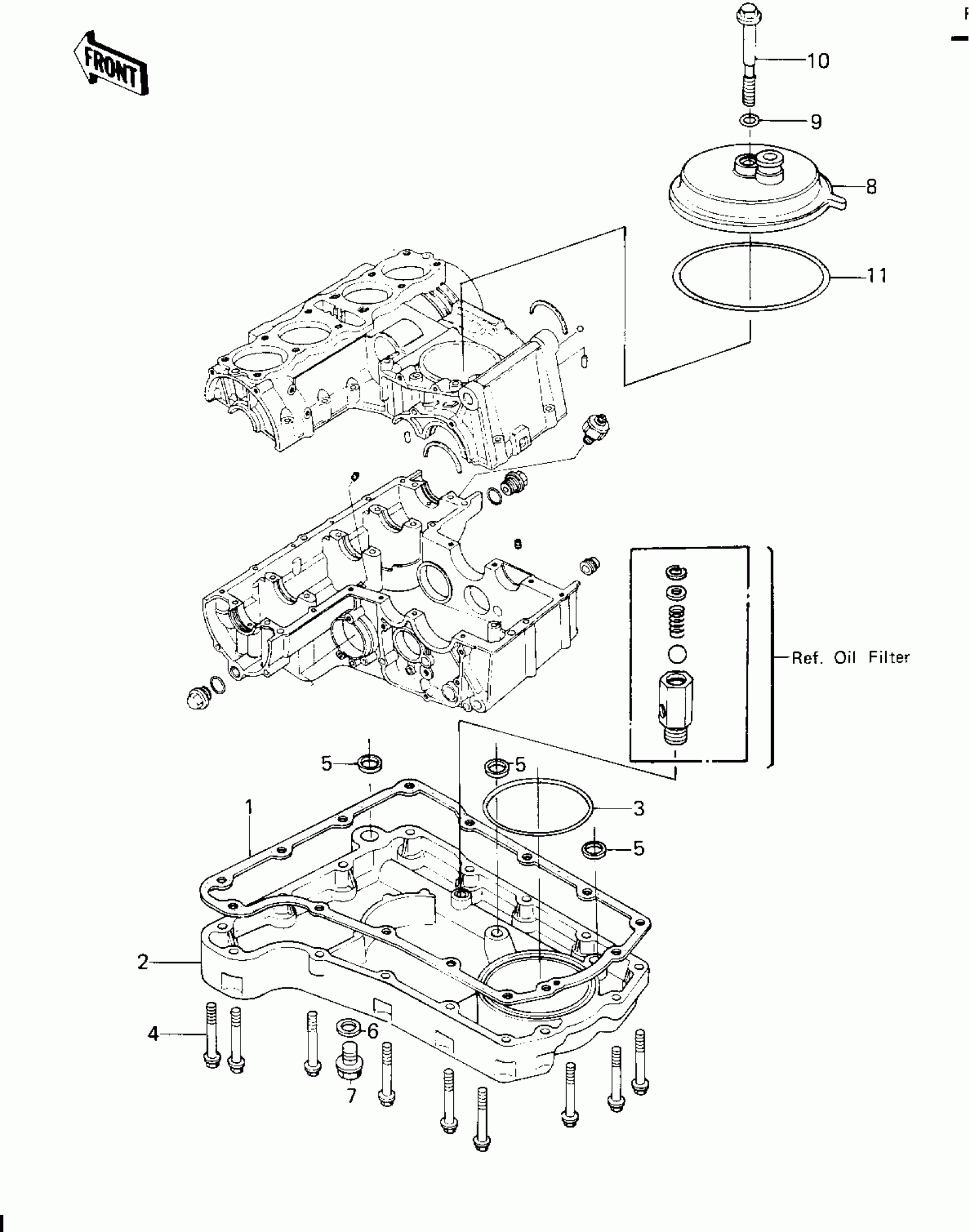

Kawasaki KZ650-F1 BREATHER COVER/OIL PAN Diagram

#

Description
Price

1

GASKET,OIL PAN

11009-1983

$31.19

2

PAN-OIL

49034-5011

$159.94

3

O RING,90MM

671B2590

$7.54

4

BOLT,FLANGED,6X25

130G0625

Unavailable

5

RING-O,19.5MM

92055-077

$4.47

6

GASKET,12X22X2

92065-097

$0.66

7

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

8

BODY-BREATHER

14070-1008

$40.47

9

O RING,8MM

670B1508

$1.00

10

BOLT,HEX HEAD,8X72

92003-107

Unavailable

11

RING-O,91.6X3.4

92055-052

$7.52
