Partiron

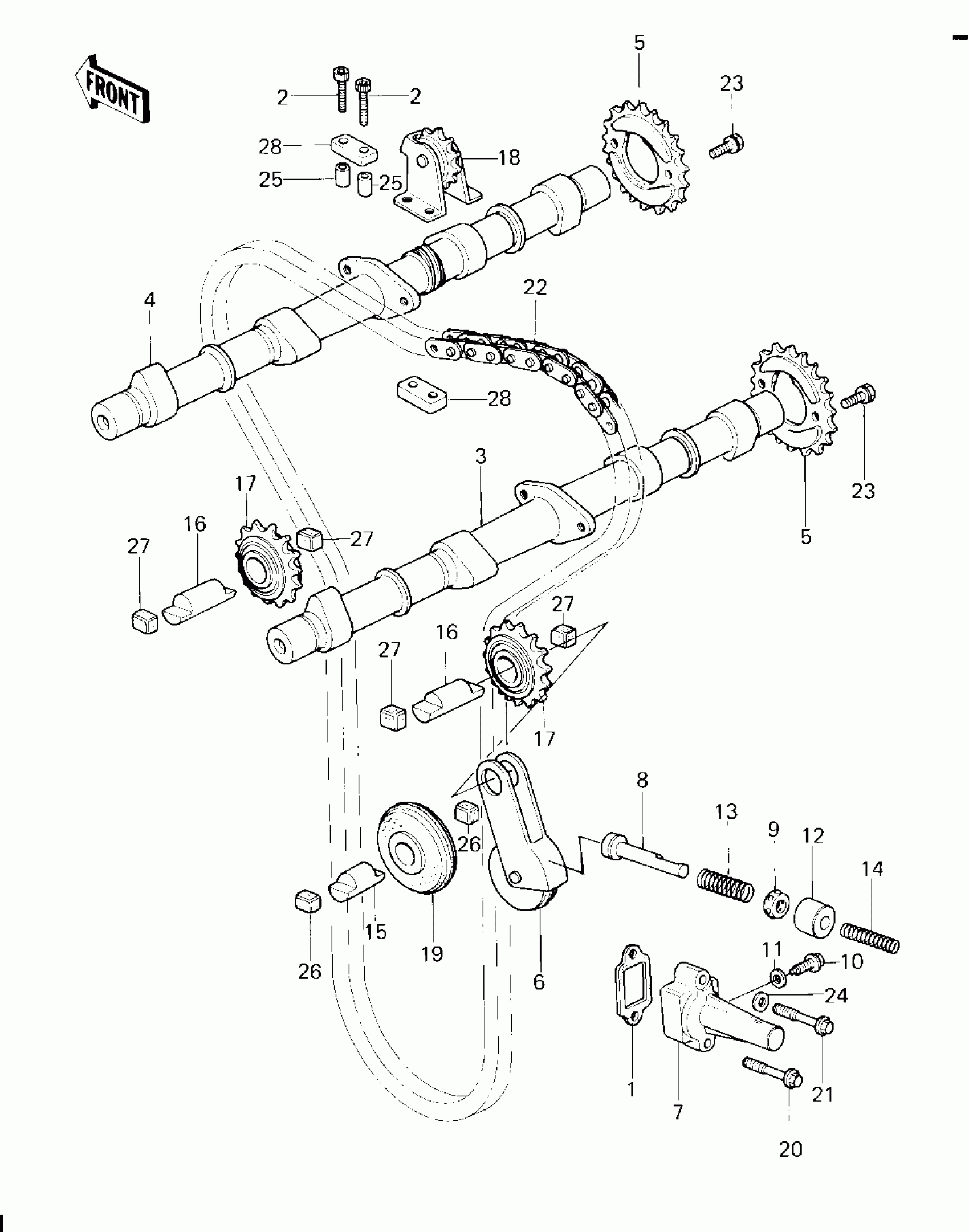

Kawasaki KZ650-F1 CAMSHAFTS/CHAIN/TENSIONER Diagram

#

Description
Price

1

GASKET,TENSIONER

11009-1980

$4.18

2

BOLT,ALLEN,6X32

120Q0632

Unavailable

3

CAM SHAFT,INLET

12044-012

Unavailable

4

CAM SHAFT,EXHAUST

12044-013

Unavailable

5

SPROCKET,CAM

12046-004

Unavailable

6

TENSIONER,CAM CHAIN

12048-015

Unavailable

7

TENSIONER KIT

99996-1021

Unavailable

8

ROD ASSY,PUSH

13116-1008

Unavailable

9

RETAINER,TENSIONER

14020-1002

$16.44

10

BOLT,TENSIONER ADJUST

92001-1155

$4.68

11

WASHER OIL PUMP BANJO

92022-077

$2.84

12

COLLAR, TENSIONER

92027-1102

$41.67

13

SPRING,TENSIONER

92081-1068

Unavailable

14

SPRING

92081-146

Unavailable

15

SHAFT-IDLER,CAM CHAIN GUIDE

12052-003

$11.22

16

SHAFT-IDLER,GUIDE ROLLAR

12052-005

$29.55

17

IDLER ASSY,CAM CHAIN

12053-1012

Unavailable

18

IDLER ASSY,CAM CHAIN

12053-1013

Unavailable

19

ROLLER,CAM CHN GUIDE

12055-004

Unavailable

20

BOLT-FLANGED,6X30

130G0630

Unavailable

21

BOLT,FLANGED,6X35

130H0635

Unavailable

22

CHAIN,CAM

21070-012

$321.25

23

BOLT,FLANGED,6X11

92003-208

$3.29

24

WASHER OIL PUMP BANJO

92022-077

$2.84

25

COLLAR,6.2X8.1X15

92027-1079

$3.03

26

DAMPER RUBBER

92075-123

$7.25

27

DAMPER,IDLER SHAFT

92075-232

$4.33

28

DAMPER RUBBER

92075-289

Unavailable
