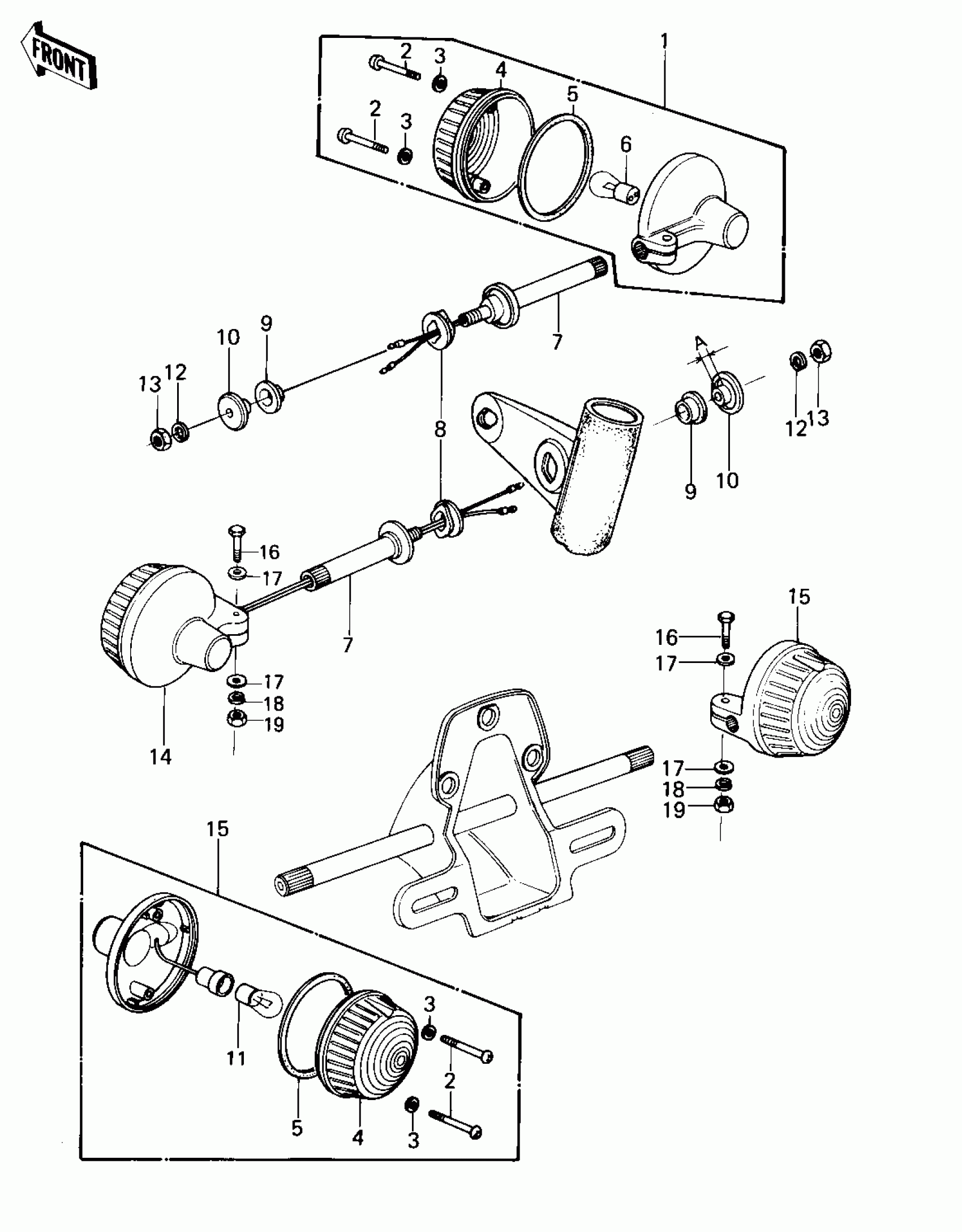

Kawasaki KZ440-B1 TURN SIGNALS ('80 B1) Diagram

#

Description
Price

1

LAMP-SIGNAL,RH

23040-1005

$91.82

2

SCREW-PAN HEAD,4X35

220E0435A

$8.69

3

WASHER,PLAIN,4MM

23058-002

$1.77

4

LENS-SIGNAL LAMP,"6.1445"MARK

23048-1024

$8.34

5

GASKET,TURN SIGNAL LAMP

23050-002

$4.41

6

BULB,12V 32/3CP(23/8W)

92069-060

$7.39

7

BRACKET,TURN SIGNAL.L

23051-053

$69.99

8

DAMPER,LAMP

92075-128

$4.42

9

DAMPER RUBBER,SIG LM

92075-158

$4.15

10

COLLAR,SIGNAL LAMP

92027-1060

$3.75

11

BULB,12V 32CP(23W)

92069-055

$3.95

12

WASHER SPRING 10MM

461F1000

Unavailable

13

NUT-HEX-FINE,10MM

315B1000

Unavailable

14

LAMP-SIGNAL,LH

23040-1006

$91.82

15

LAMP-TURN SIGNAL

23040-029

$156.39

16

BOLT-UPSET

112G0630

Unavailable

17

WASHER PLAIN 6MM

411B0600

Unavailable

18

WASHER SPRING 6MM

461F0600

Unavailable

19

NUT 6MM

311B0600

Unavailable
