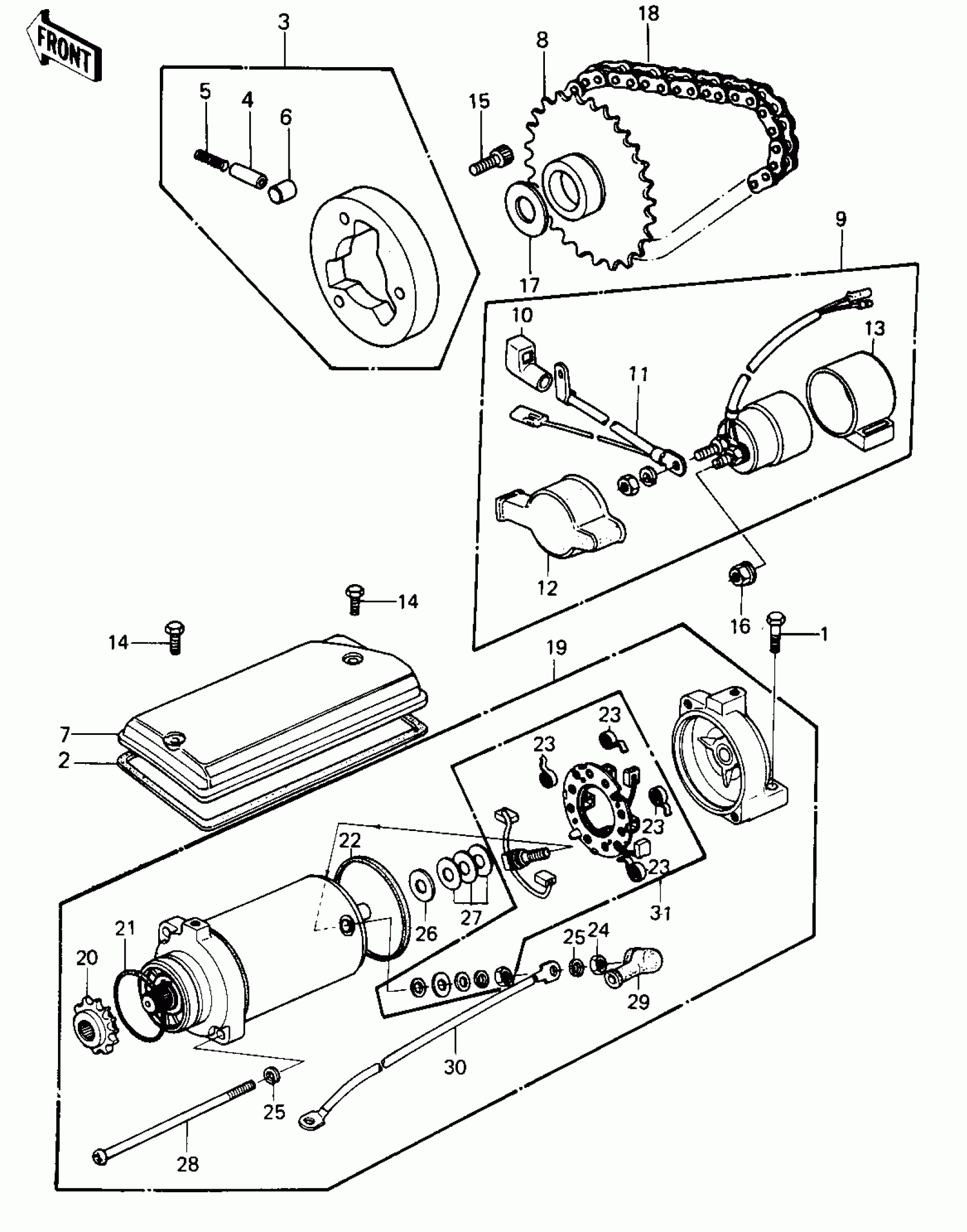

Kawasaki KZ440-B1 STARTER MOTOR/STARTER CLUTCH ('80 B1) Diagram

#

Description
Price

1

BOLT-UPSET

112G0625

Unavailable

2

GASKET,STARTER COVER

11009-1006

Unavailable

3

CLUTCH ASSY,STARTER

13193-1001

Unavailable

4

PIN

92043-087

$9.70

5

SPRING

92081-110

$3.63

6

ROLLER,15X13

92122-004

$8.42

7

COVER,STARTER

14025-1284

Unavailable

8

SPROCKET,ONWAY CLUTCH

12046-1030

Unavailable

9

SWITCH MAGNETIC

27010-1014

$166.48

10

CAP,MAG SWTCH TERMNL

21017-021

$12.27

11

WIRE,LEAD,MAG SWITCH

26011-1027

$28.53

12

CAP,MAGNETIC SWITCH

21141-004

Unavailable

13

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

14

BOLT,6X10

92001-1151

$4.42

15

BOLT-SOCKET,8X16

120P0816

Unavailable

16

NUT,LOCK 6MM

92017-014

$5.74

17

SPACER,25X40X1

92026-1004

Unavailable

18

CHAIN,DYNAMO

92057-1009

$50.46

19

MOTOR ASSY,STARTER

21163-1011

Unavailable

20

SPROCKET-ASSY

21053-002

Unavailable

21

RING-O,42.8MM

21027-005

Unavailable

22

RING-O,64MM

92055-1086

$9.68

23

SPRING,CARBON BRUSH

21040-1002

$10.73

24

NUT 6MM

312B0600

Unavailable

25

WASHER SPRING 6MM

461F0600

Unavailable

26

WASHER,9.1X18X0.8

92022-1132

$5.42

27

WASHER,9.1X18X0.2

21025-011

$4.67

28

SCREW,PAN HEAD,6X119

92009-1097

Unavailable

29

CAP,STARTING MOTOR

21017-020

$7.85

30

WIRE STRTER MOT LEAD

26010-035

$46.52

31

BRUSH SET,CARBON

21039-1005

Unavailable
