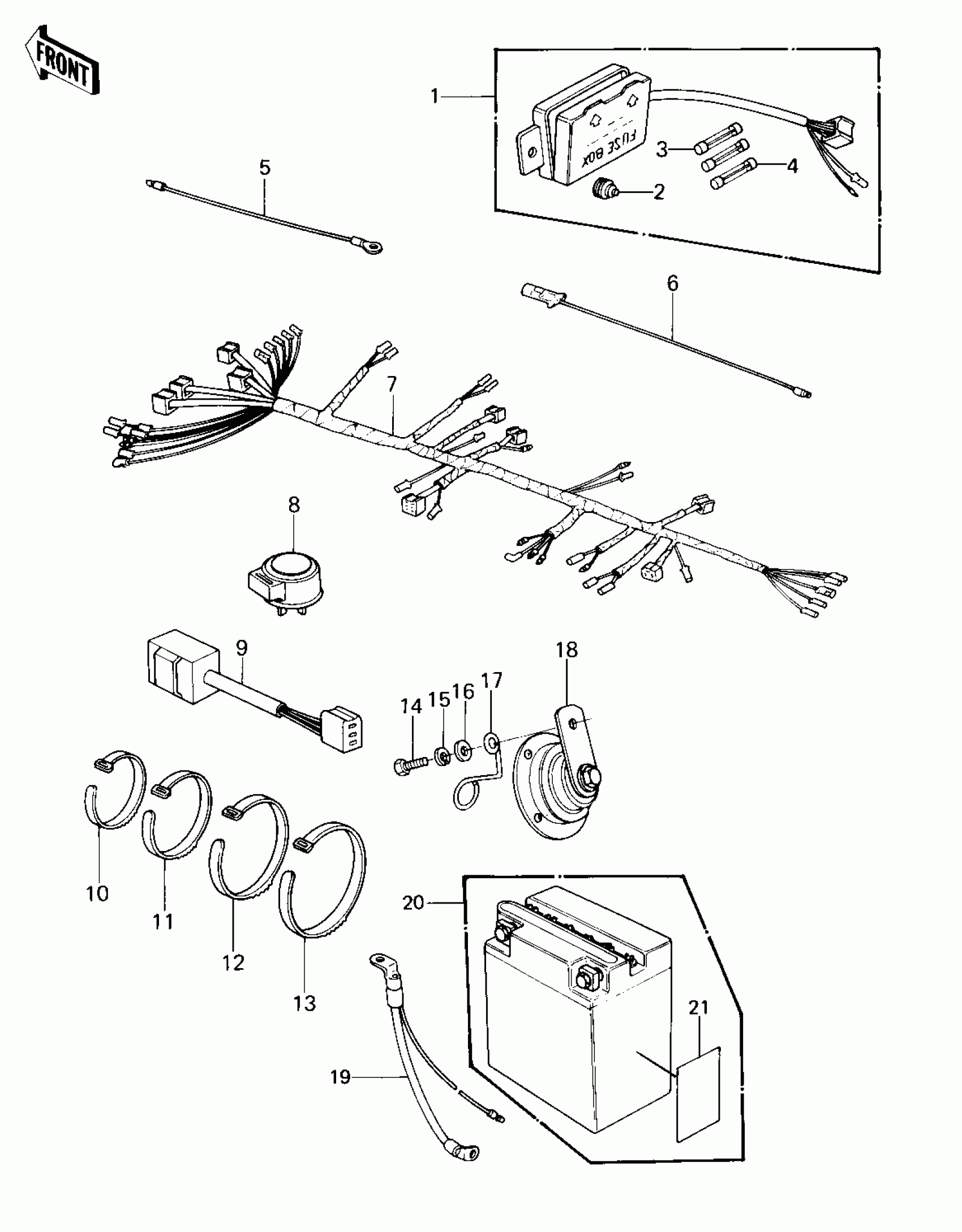

Kawasaki KZ440-B1 CHASSIS ELECTRICAL EQUIPMENT ('80 B1) Diagram

#

Description
Price

1

FUSE-ASSY

26004-035

Unavailable

2

DAMPER,FUSE

92075-279

Unavailable

3

FUSE,20A,L=25

26006-005

$3.86

4

FUSE,10A,L=25

26006-003

$3.59

5

LEAD WIRE,SIGNAL LAMP

26011-063

$6.56

6

WIRE,LEAD,REAR SIGNAL

26011-1021

$1.95

7

HARNESS,MAIN

26001-1128

$263.80

8

RELAY-ASSY,TURN SIGNAL

27002-011

$103.40

9

SWITCH,BK LIGHT IND

28019-002

$68.10

10

BAND,L=95

92072-067

Unavailable

11

BAND,L=123

92072-030

$3.81

12

BAND,L=149

92072-031

$3.81

13

BAND,L=218

92072-032

$3.81

14

BOLT,8X20

115G0820

Unavailable

15

WASHER SPRING 8MM

461F0800

Unavailable

16

WASHER PLAIN 8MM

410B0800

Unavailable

17

CLAMP,CABLE

92037-155

$8.78

18

HORN

27003-1005

$63.03

19

WIRE LEAD,BATTERY GRD

26011-1022

Unavailable

20

FB BAT FB12A-A

26012-1004

$96.88

21

LABEL-WARNING,BATTERY

56040-1036

Unavailable
