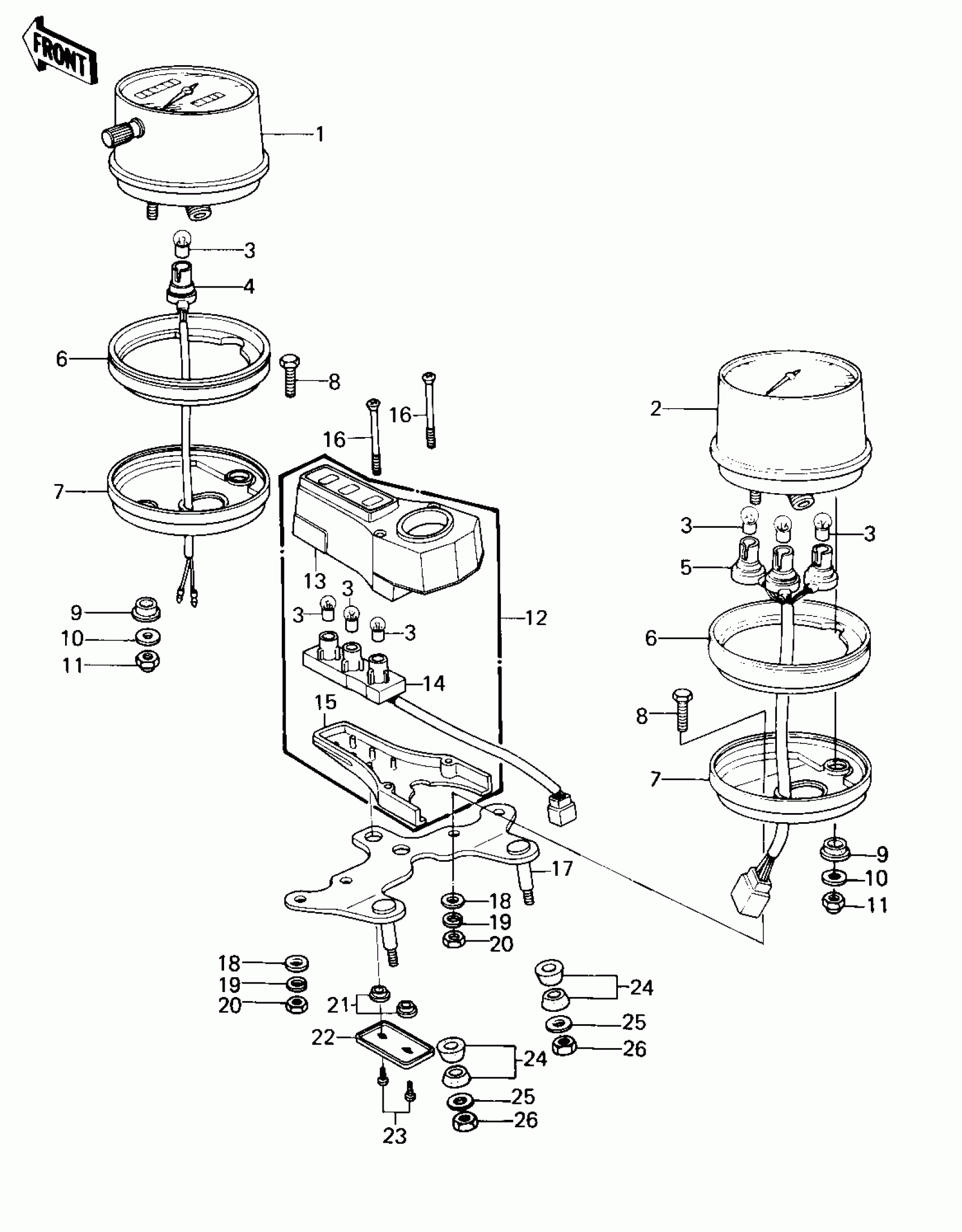

Kawasaki KZ440-B1 METERS ('80 B1) Diagram

#

Description
Price

1

SPEEDOMETER,MPH

25005-1060

$444.65

2

TACHOMETER ASSY

25015-1007

$362.64

3

BULB 12V 3W

92069-018

$3.71

4

SOCKET,SPEEDOMETER

23008-1006

$13.34

5

SOCKET,TACHOMETER

23008-1004

$34.24

6

SHOCK DAMPER,SPEEDMET

25019-031

Unavailable

7

COVER,METER

25012-025

$29.95

8

BOLT,HEX HEAD,6X14

92003-204

$3.49

9

DAMPER,METER

25019-013

$4.33

10

WASHER,5.2X16X1.2

25009-004

$2.88

11

NUT,5MM

92015-059

Unavailable

12

LAMP ASSY,PILOT

23016-1013

Unavailable

13

COVER,INDICATER LAMP

25023-1011

Unavailable

14

SOCKET,PILOT LAMP

23008-1023

$27.66

15

COVER,METER BRACKET

14025-1101

Unavailable

16

SCREW-CSK-RD-CROS,4X45

222C0445

Unavailable

17

BRACKET,METER

25008-1013

$60.90

18

WASHER PLAIN 6MM

411B0600

Unavailable

19

WASHER SPRING 6MM

461F0600

Unavailable

20

NUT

92015-078

Unavailable

21

DAMPER,8MM

92075-1138

$2.76

22

PLATE,PILOT LAMP

13169-1136

Unavailable

23

SCREW,TAPPING,4X10

92009-1040

$3.25

24

DAMPER RUBBER,METER

92075-248

Unavailable

25

WASHER,6.5X20X1.6

92022-125

$1.08

26

NUT 6MM

311B0600

Unavailable
