1979 Kawasaki KZ400-H1 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1979 Kawasaki KZ400-H1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

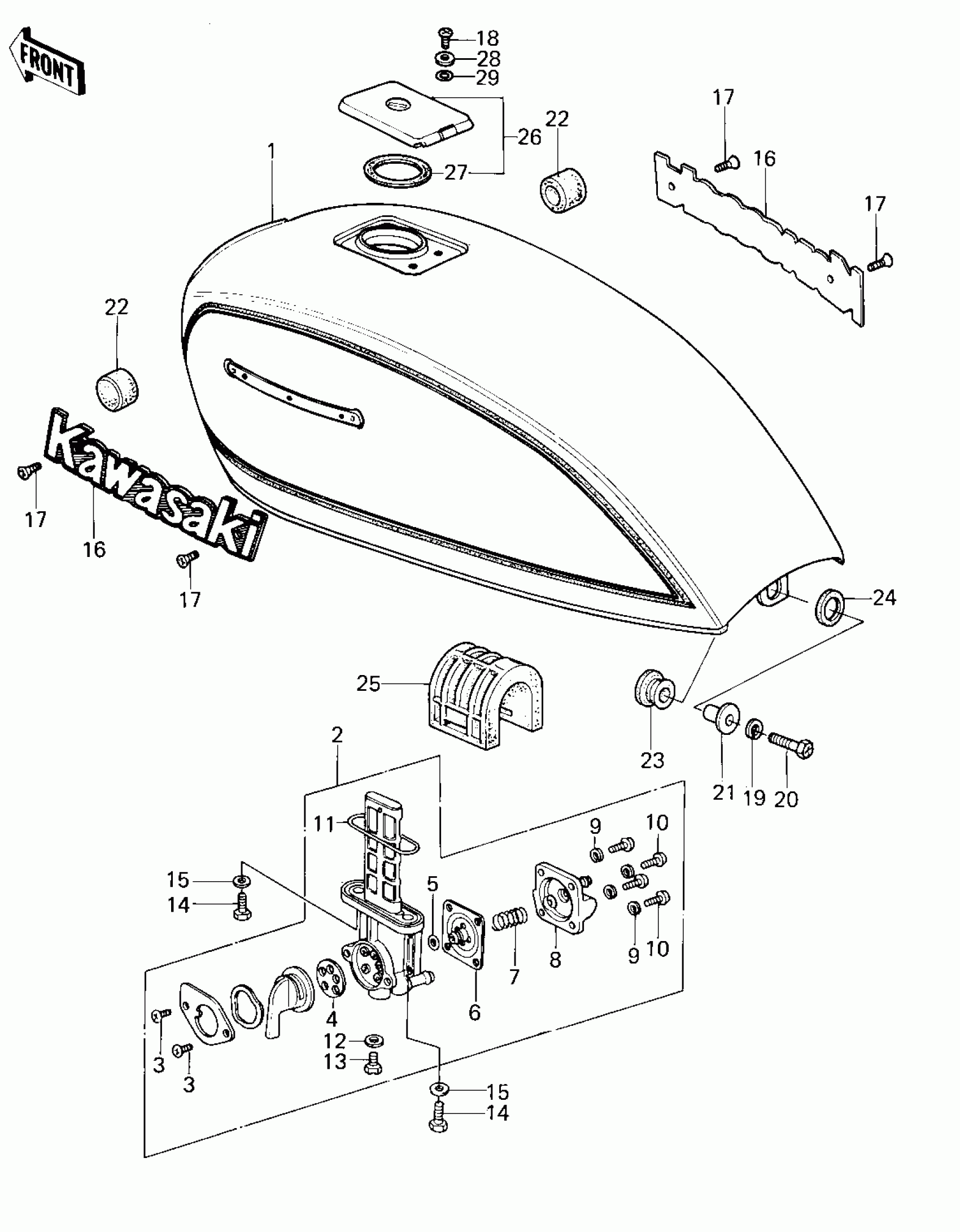

1979 Kawasaki KZ400-H1 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK-FUEL,EBONY

51001-1026-8G

1
Out of stock

2

TAP ASSY,FUEL

51023-1030

1
Out of stock

3

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

4

GASKET,TAP VALVE

11009-1068

1
Out of stock

5

"0" RING,DIAPHRAGM

92055-1068

1
Out of stock

6

DIAPHRAGM ASSY,TAP

43028-1009

1
Out of stock

7

SPRING,DIAPHRAGM

92081-1054

1
Out of stock

8

COVER ASSY,TAP DIAPRM

16146-1006

1
Out of stock

9

WASHER SPRING 4MM

461F0400

1
Out of stock

10

SCREW PAN HEAD 4X10

220B0410

1
Out of stock

11

"O" RING,TAP FLANGED

43058-1006

1
Out of stock

12

GASKET,DRAIN BOLT

11009-1045

1
Out of stock

13

BOLT,DRAIN

92001-1089

1
Out of stock

14

BOLT,6X20

92001-1091

1
Out of stock

15

WASHER-PLAIN

92022-183

1
Out of stock

16

EMBLEM,FUEL TANK

56014-1038

1
Out of stock

17

SCREW-CSK-CROS

221C0306

1
Out of stock

18

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

19

WASHER SPRING 6MM

461F0600

1
Out of stock

20

BOLT,6X25

92001-1284

1
Out of stock

21

COLLAR,L=13.1

92027-251

1
Out of stock

22

DAMPER,FUEL TANK

92075-101

1
Out of stock

23

RUBBER,FENDER COVER

92075-174

1
Out of stock

24

DAMPER,FEMALE

92075-175

1
Out of stock

25

DAMPER,FUEL TANK

92075-284

1
Out of stock

26

CAP ASSY TANK

51048-1018

1
Out of stock

27

GASKET,FUEL TANK CAP

11009-1051

1
Out of stock

28

WASHER,5.3X10X0.8

92022-1038

1
Out of stock

29

RING-O

92055-1023

1
Out of stock
