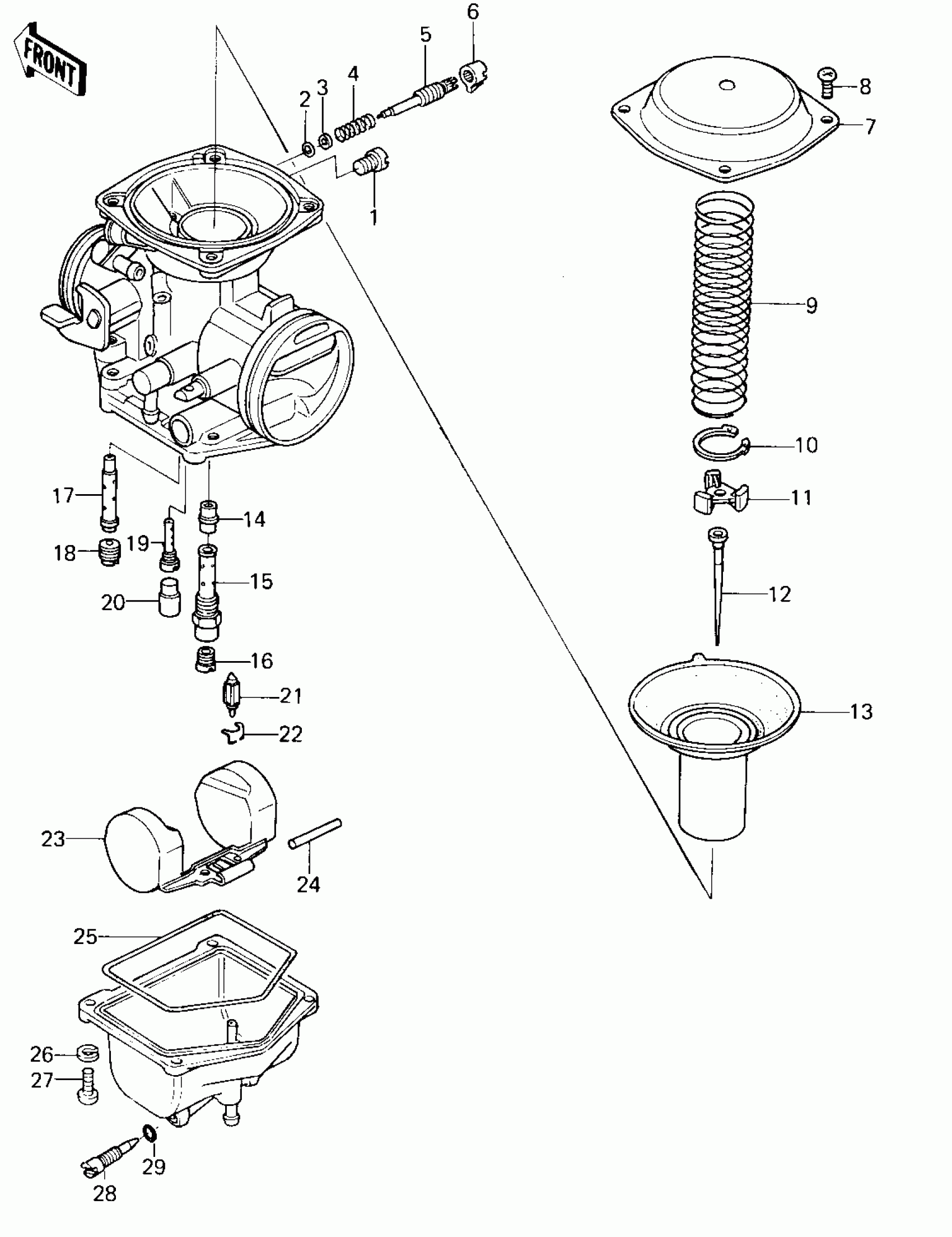

Kawasaki KZ400-H1 CARBURETOR PARTS Diagram

#

Description
Price

1

SCREW,PLUG

92009-1004

Unavailable

2

RING-O,PILOT ADJUST

92055-1002

$3.29

3

WASHER,PLAIN

92022-1003

$3.29

4

SPRING,PILOT ADJUST SCREW

92081-1002

$4.14

5

SCREW,PILOT ADJUST

16014-1009

Unavailable

6

CAP,JET NEEDLE

11012-3727

Unavailable

7

TOP-CHAMBER,MIXING

16005-1001

$40.36

8

SCREW PAN HEAD 4X8

220B0408

Unavailable

9

SPRING

92081-1001

Unavailable

10

CLAMP

92037-1005

Unavailable

11

SEAT-SPRING,THROTTLE VALVE

16007-1001

Unavailable

12

JET NEEDLE,#003002

16009-1039

$40.26

13

VACUUM,VALVE

16126-1042

$244.40

14

NEEDLE JET

16017-1001

Unavailable

15

HOLDER,N.J,N413-02D00

13091-1047

Unavailable

16

MAIN JET,2ND,#80

92063-1037

Unavailable

16

MAIN JET,2ND,#75

92063-1036

Unavailable

16

MAIN JET,2ND,#78

92063-1043

Unavailable

16

JET-MAIN,2ND,#82

92063-1044

Unavailable

16

JET-MAIN,#85

92063-1023

Unavailable

17

NOZZLE,MAIN

92062-1001

Unavailable

18

MAINJET,PRIMARY,#70

92063-1002

$18.58

19

JET-PILOT,#35

92064-1001

$18.63

20

CAP,RUBBER

16012-1001

Unavailable

21

VALVE-FLOAT

16030-1007

$42.48

22

CLAMP,FLOAT VALVE

16044-007

$6.04

23

FLOAT

16031-1001

Unavailable

24

PIN,FLOAT

92043-1002

Unavailable

25

O RING,FLOAT CHAMBER

16019-024

Unavailable

26

WASHER SPRING 4MM

461F0400

Unavailable

27

SCREW-PAN-CRSOSS,4X1

220B0412

$0.25

28

SCREW,DRAIN,M6X1.0

92009-1095

$11.33

29

RING-O

92055-1053

$3.24
