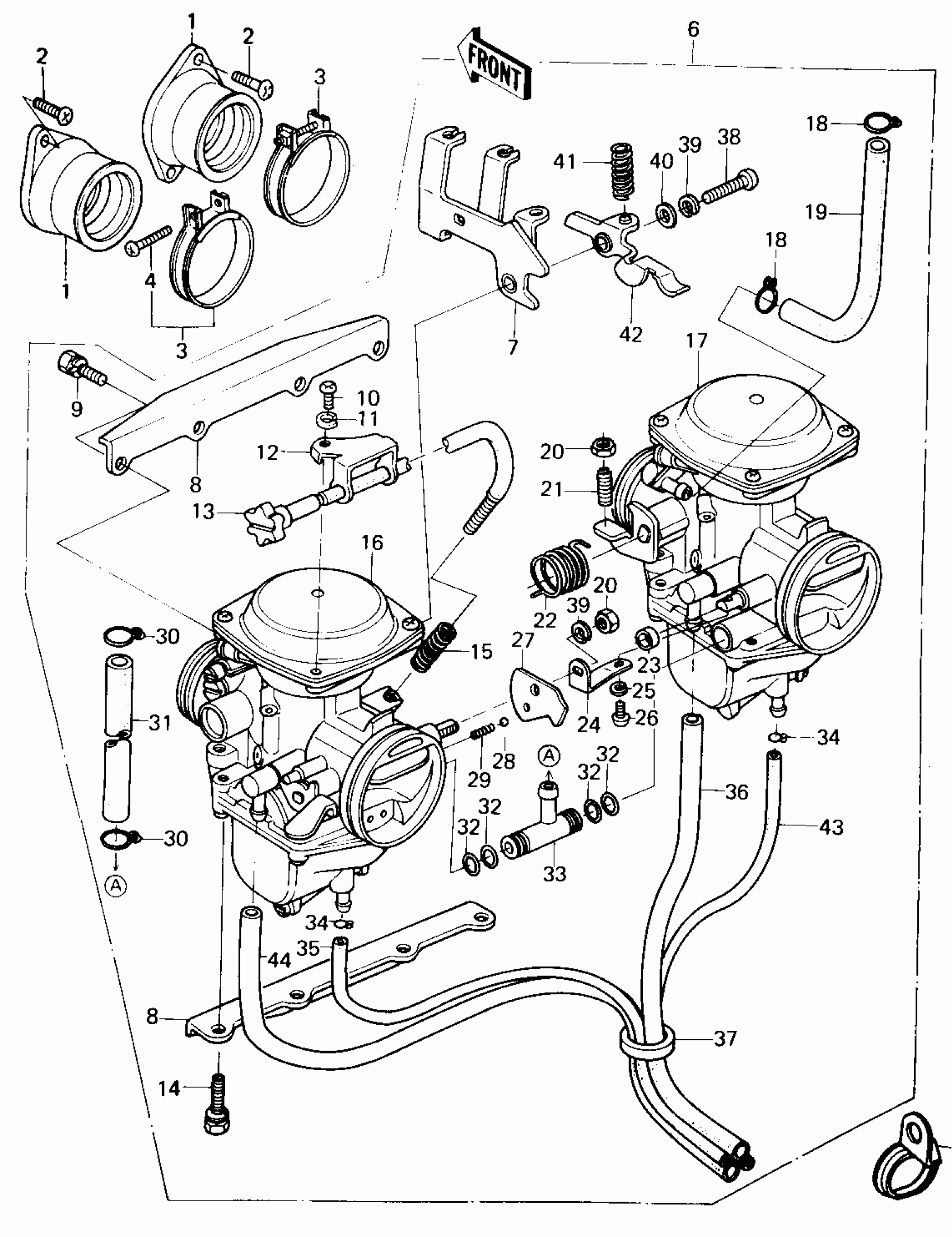

Kawasaki KZ400-H1 CARBURETOR ASSY Diagram

#

Description
Price

1

HOLDER,CARBURETOR

16065-1002

Unavailable

2

SCREW PAN HEAD 6X18

220B0618

$2.74

3

CLAMP,CARBURETOR

92037-1021

Unavailable

4

SCREW PAN HEAD 5X30

220B0530

Unavailable

5

CLAMP,TUBE

92037-1153

Unavailable

6

CARBURETOR ASSY

16001-1173

$734.74

7

BRACKET,THR.CBL

11034-1008

Unavailable

8

PLATE,STAY

16065-1012

Unavailable

9

SCREW,6X16

92009-1129

Unavailable

10

SCREW PAN HEAD 4X10

220B0410

Unavailable

11

WASHER SPRING 4MM

461F0400

Unavailable

12

BRACKET,STOP SCREW

11034-1202

Unavailable

13

SCREW-THROTTLE STOP

16021-1007

$33.48

14

BOLT,6X22

92009-1006

$3.98

15

SPRING,STOP SCREW

92081-1062

Unavailable

16

CARBURETOR,L.H.

16001-1174

$325.87

17

CARBURETOR,R.H.

16001-1175

$325.87

18

CLAMP,FUEL HOSE

92037-1040

Unavailable

19

TUBE,5.3X10.5X200

92059-1001

Unavailable

20

NUT-HEX

311B0500

$0.42

21

SCREW,SLOTTED

16021-1002

$1.85

22

SPRING

92081-1063

Unavailable

23

COLLAR,CHOKE LEVER

16073-1001

$2.31

24

BRACKET,CHOKE LEVER

11034-1203

Unavailable

25

WASHER SPRING 3MM

461F0300

Unavailable

26

SCREW-PAN-CROS,3X6

220B0306

Unavailable

27

PLATE,CHOKE LINK

13169-1151

Unavailable

28

BALL,STEEL,1/8"

600A0400

$1.96

29

SPRING

92081-1004

Unavailable

30

CLAMP,FUEL TUBE

92037-1075

$3.96

31

TUBE,FUEL,7.3X12.5X200

92059-1029

$30.56

32

RING-O

92055-1004

$4.31

33

FITTING,FUEL TUBE

92005-1033

Unavailable

34

CLAMP,TUBE

92037-1142

$4.31

35

TUBE,3.5X6.5X330

92059-111

$22.10

36

TUBE,4.5X8X380

92059-110

Unavailable

37

TUBE,CLAMP

92059-1114

$10.95

38

SCREW-PAN-CROS,5X25

220B0525

$3.05

39

WASHER SPRING 5MM

461F0500

Unavailable

40

WASHER,PLAIN

16039-027

Unavailable

41

SPRING

92081-1003

$13.64

42

ROCKER ARM

11034-1009

Unavailable

43

TUBE,3.5X6.5X330

92059-111

$22.10

44

TUBE,4.5X8X450

92059-1106

$15.80
