1979 Kawasaki KZ400-H1 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1979 Kawasaki KZ400-H1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

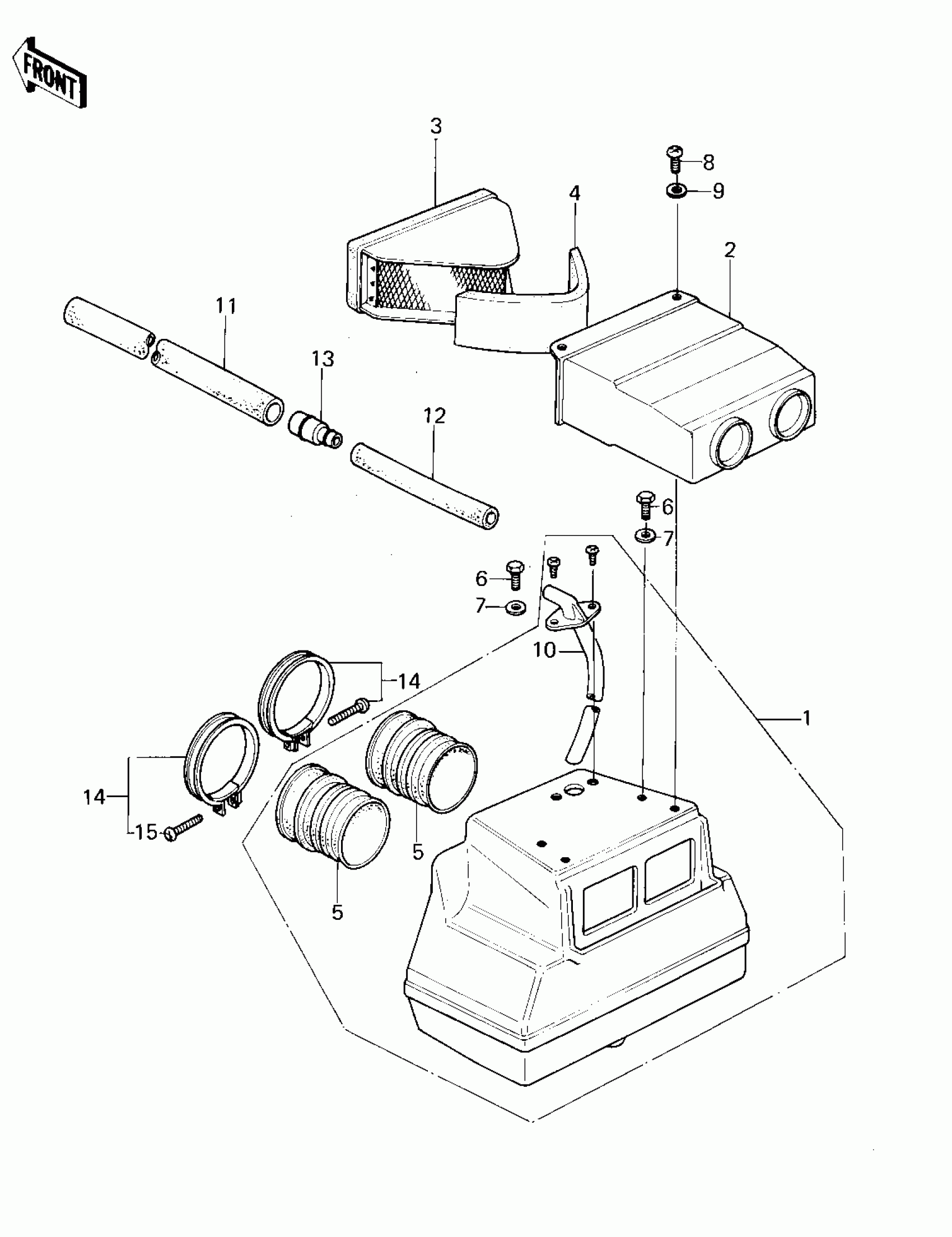

1979 Kawasaki KZ400-H1 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FILTER-ASSY-AIR

11010-5043

1
Out of stock

2

CAP,AIR CLEANER

11012-1086

1
Out of stock

3

CASE,ELEMENT

11011-1043

1
Out of stock

4

ELEMENT,AIR CLNR

11013-1027

1
Out of stock

5

DUCT,AIR FILTER

14073-5001

1
Out of stock

6

BOLT-UPSET,6X12

112G0612

1
Out of stock

7

WASHER PLAIN 6MM

411B0600

1
Out of stock

8

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

9

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

10

PLUG,BREATHER

92066-1046

1
Out of stock

11

TUBE,14X20X135,BRETHR

92059-1094

1
Out of stock

12

TUBE,7.5X12.5X155,RBR

92059-1097

1
Out of stock

13

PLUG,TUBE FITTING

92066-1047

1
Out of stock

14

CLAMP

92037-1006

1
Out of stock

15

SCREW PAN HEAD 5X30

220B0530

1
Out of stock
