1978 Kawasaki KZ400-C1 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 1978 Kawasaki KZ400-C1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

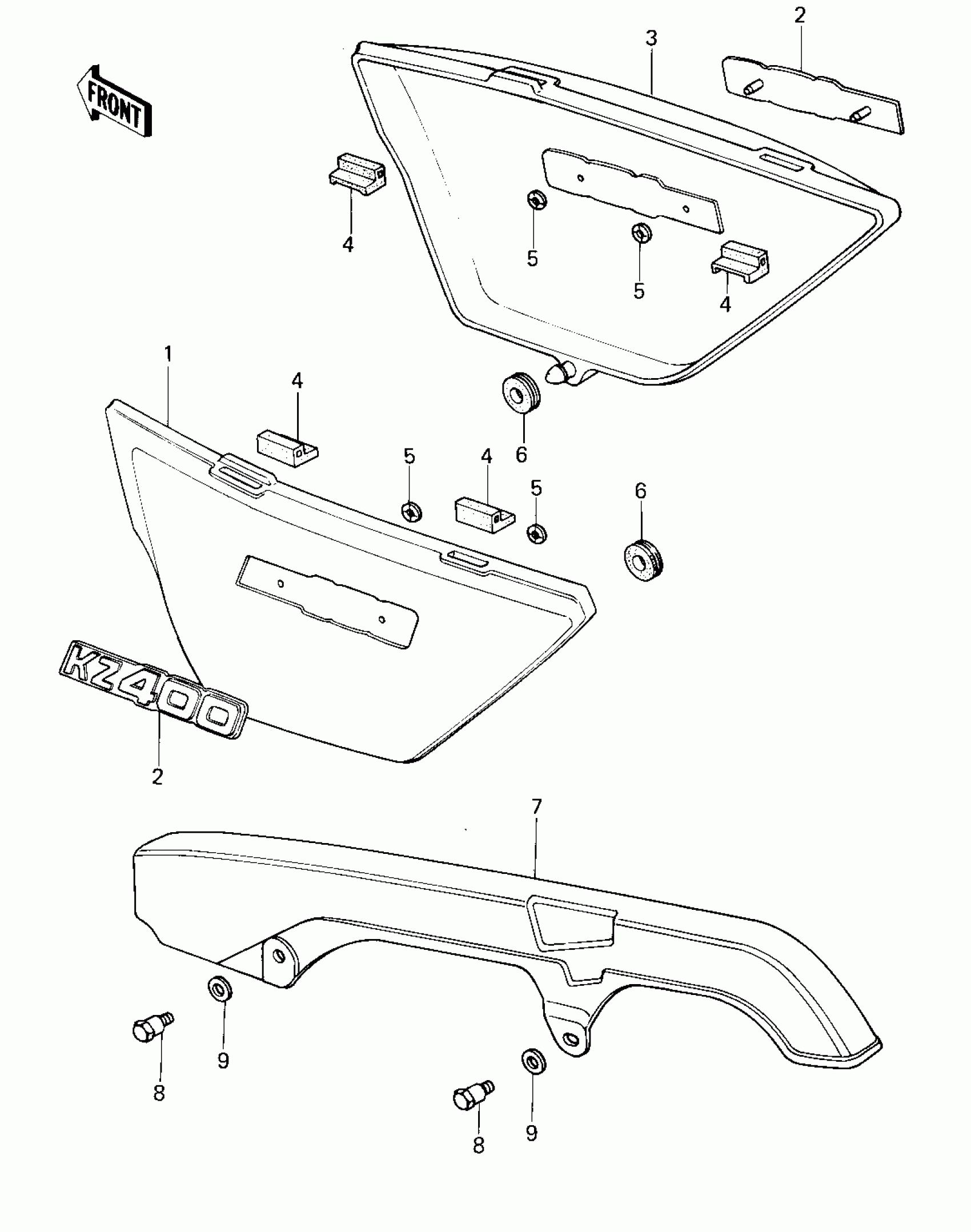

1978 Kawasaki KZ400-C1 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,SIDE,L.H.L.CPPR

36001-1057-A2

1

$113.20

In stock

2

EMBLEM,SIDE COVER

56018-267

1
Out of stock

3

COVER,SIDE,R.H.L.CPPR

36001-1058-A2

1

$70.05

In stock

4

1

$4.44

In stock

5

NUT,PUSH,3MM

92018-005

1

$2.25

In stock

6

GROMMET

92071-056

1

$3.39

In stock

7

CASE,CHAIN

36014-1002

1
Out of stock

8

BOLT,HEAX HEAD,6X14

92001-115

1
Out of stock

9

WASHER,8.5X20X1.6

92022-1561

1

$3.43

In stock
