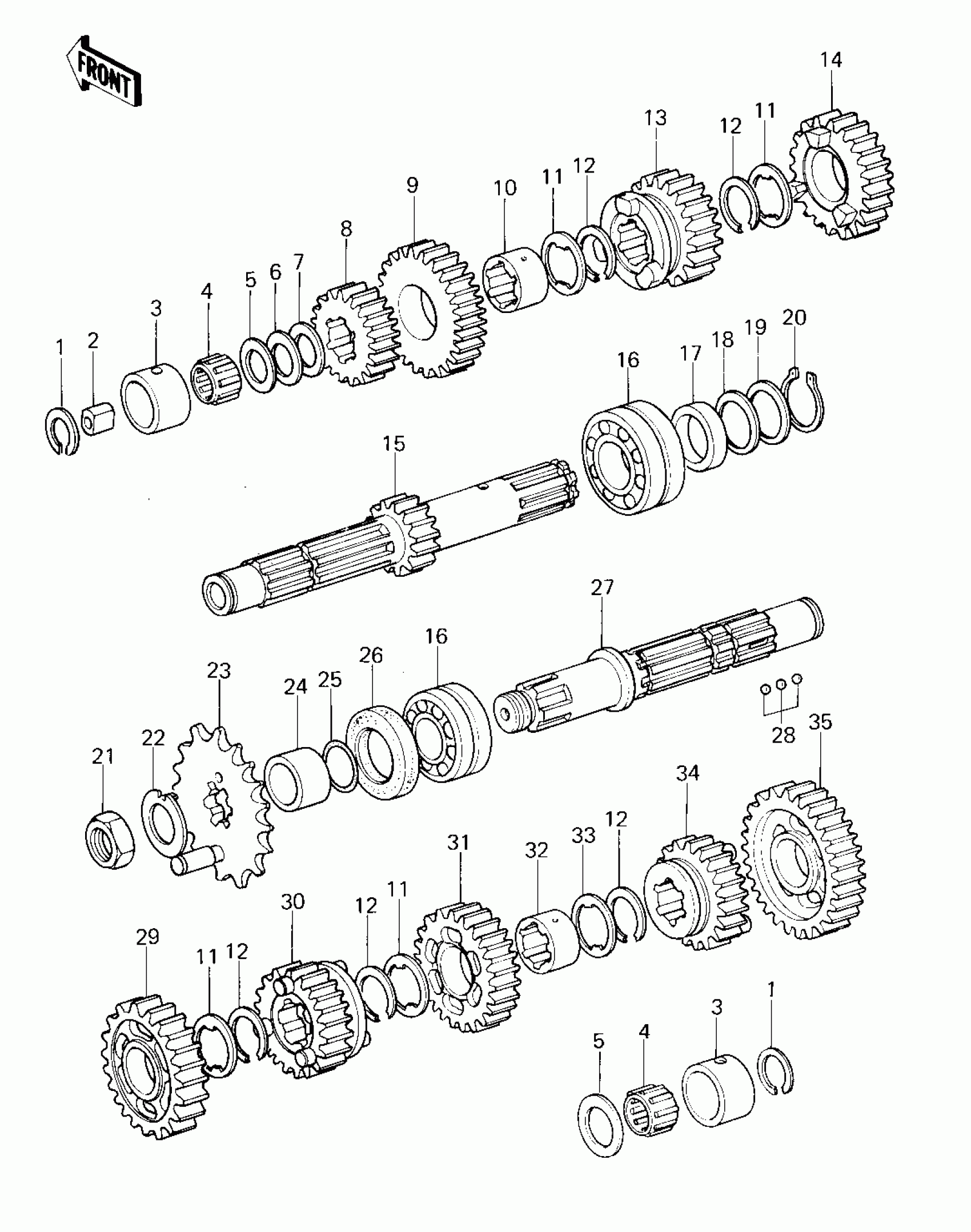

Kawasaki KZ400-C1 TRANSMISSION Diagram

#

Description
Price

1

RING-SNAP,20MM

92033-015

$3.25

2

BUSHING,DRIVE SHAFT

92028-155

Unavailable

3

RACE,OUT & DRV SHAFT

92048-1001

$14.64

4

BEARING-NEEDLE,20R2513P

92046-044

$21.78

5

WASHER,20.5X30X1,STEEL

92022-112

$6.75

6

WASHER,20.5X30X0.5,STEEL

92022-144

Unavailable

7

WASHER THRUST

92022-113

Unavailable

8

2ND GEAR,DRIVE SHAFT

13130-038

Unavailable

9

TOP GEAR,DRIVE SHAFT

13129-1006

Unavailable

10

BUSHING,INPUT TOP GEAR

92028-1552

$32.44

11

WASHER,TOOTHED,22.5X31X0.5

92024-038

$4.67

12

RING-SNAP,24MM

92033-026

$6.70

13

3RD GEAR,DRIVE SHAFT

13129-1002

Unavailable

14

4TH GEAR,DRIVE SHAFT

13129-1004

Unavailable

15

SHAFT,DRIVE SHAFT

13127-1001

Unavailable

16

BEARING,B,5205ANX4PX

92045-031

$68.94

17

COLLAR

92027-289

Unavailable

18

WASHER,25.3X32X0.5

92022-225

$4.18

19

WASHER,CLUTCH TRUST

92022-302

Unavailable

20

CIRCLIP-TYPE-C,24MM

480J2400

$4.65

21

NUT,20MM

92016-028

$7.54

22

WASHER,LOCK,20MM

92024-044

$10.10

23

ENGINE SPROCKET

13144-1003

Unavailable

24

COLLAR,ENG SPROCKET

92027-288

$40.09

25

RING-O

92055-035

$3.81

26

SEAL-OIL,SC325210

92050-024

$6.23

27

SHAFT,OUTPUT

13128-1002

Unavailable

28

BALL-STEEL,5/32

600A0500

$0.68

29

2ND GEAR,OUTPUT SHAFT

13131-045

Unavailable

30

TOP GEAR,OUTPUT SHAFT

13129-1007

Unavailable

31

3RD GEAR,OUTPUT SHAFT

13129-1003

Unavailable

32

BUSHING,OUTPUT 3RD GR

92028-1002

$45.12

33

WASHER,TOOTHED,25.5X32X1

92024-033

$8.03

34

4TH GEAR,OUTPUT SHAFT

13129-1005

Unavailable

35

LOW GEAR,OUTPUT SHAFT

13129-1001

Unavailable
