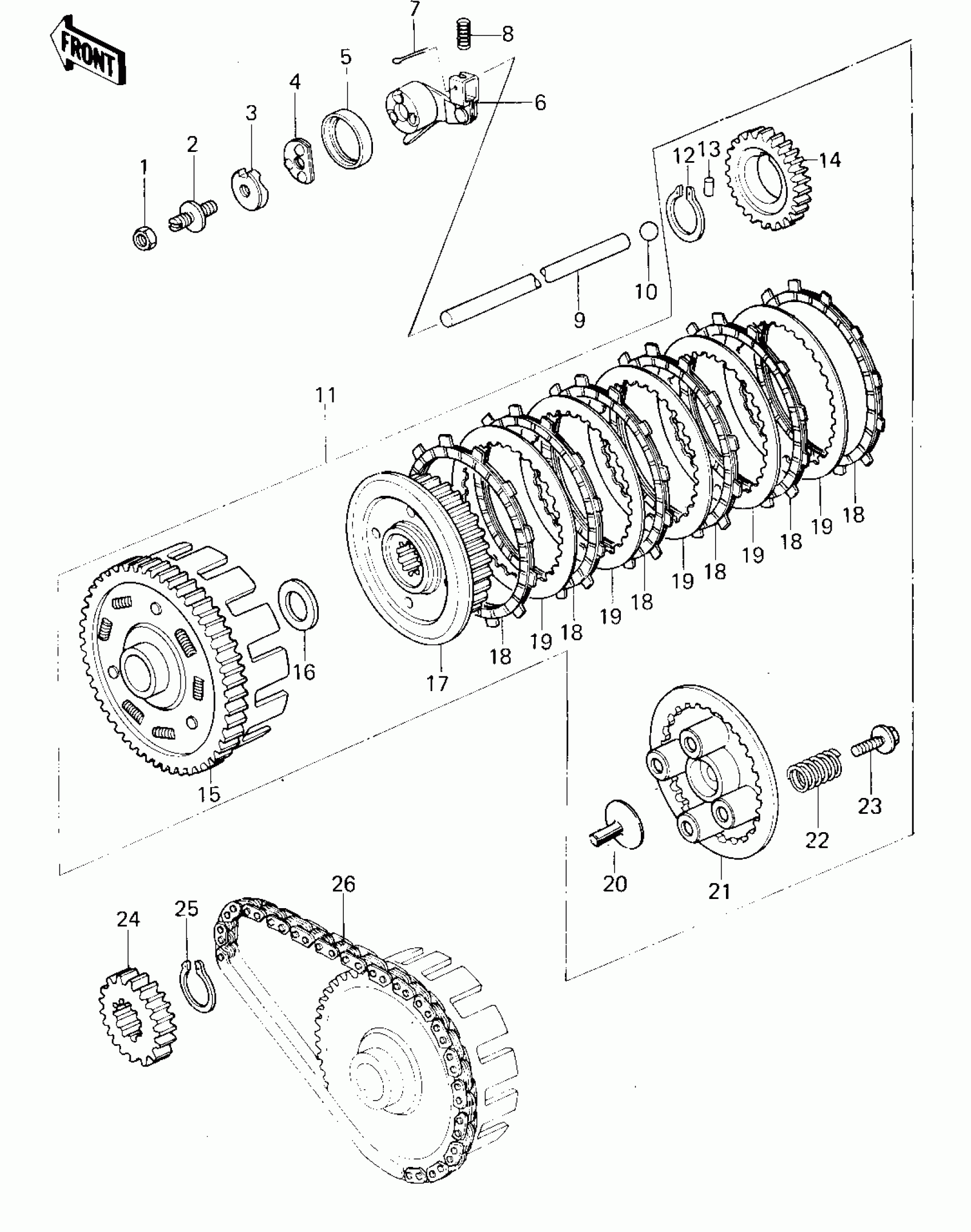

Kawasaki KZ400-C1 CLUTCH Diagram

#

Description
Price

1

NUT-HEX-SMALL,8MM

318B0800

$0.54

2

SCREW,8MM

92009-1009

Unavailable

3

CAM-RELEASE,CLUTCH

13119-1003

$15.92

4

BEARING,BALL,CLUTCH

92045-1001

$8.82

5

SEAL-OIL,CLUTCH RELEASE

92049-1003

$8.29

6

RELEASE, CLUTCH

13102-1004

Unavailable

7

PIN-COTTER,1.6X15

550D1615

$1.80

8

SPRING,CLUTCH RETURN

92081-1058

Unavailable

9

ROD,PUSH,CLUTCH

13116-1017

Unavailable

10

BALL-STEEL,3/8"

600A1200

$1.14

11

CLUTCH-ASSY

13081-1019

Unavailable

11

CLUTCH-ASSY

13081-1019

Unavailable

12

CIRCLIP, 38MM

480J3800

$4.75

13

PIN, DOWELL, 6X6

610A0606

$2.10

14

GEAR,OIL PUMP,34T

59051-1001

$50.29

15

HOUSING,CLUTCH

13095-1008

Unavailable

16

WASHER,CLUTCH THRUST

92022-288

$12.12

17

HUB,CLUTCH

13087-040

Unavailable

18

PLATE,FRICTION

13088-1001

Unavailable

19

PLATE-CLUTCH,T=2.0

13089-026

$9.73

20

PUSHER,CLTCH SPRG PLT

13116-029

Unavailable

21

PLATE,CLUTCH SPRING

13187-1003

Unavailable

22

SPRING,CLUTCH

92081-1033

$5.64

23

BOLT,FLANGED,6X18

92001-1066

$4.67

24

SPROCKET,PRIMARY

13121-030

Unavailable

25

CIRCLIP-TYPE-C,30MM

480J3000

$4.67

26

CHAIN,PRIMARY DRIVE

13122-005

Unavailable
