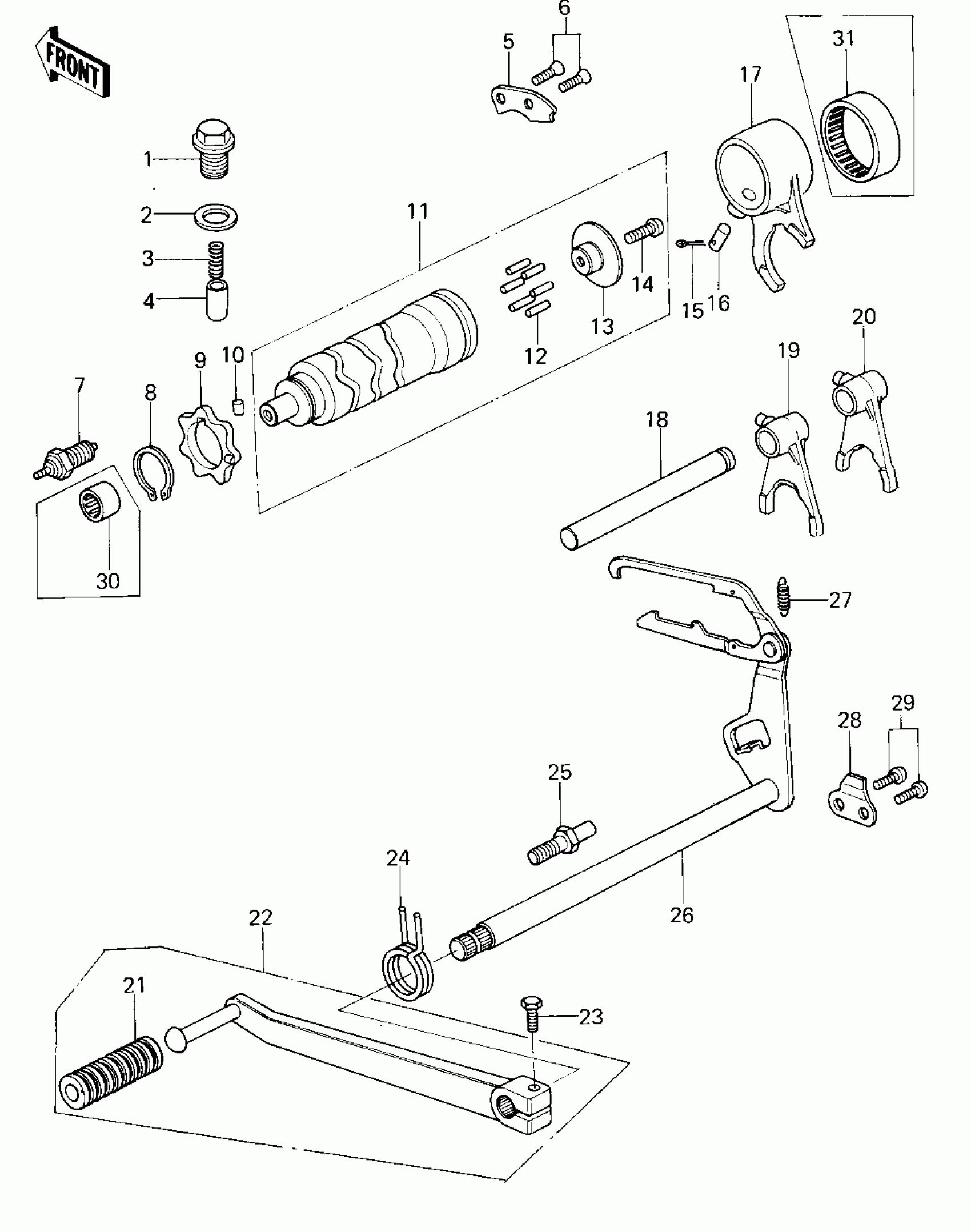

Kawasaki KZ400-C1 GEAR CHANGE MECHANISM Diagram

#

Description
Price

1

BOLT,NEUTRAL POSITION

92001-1037

$12.73

2

GASKET,15.5X22X1

11009-1008

$2.75

3

SPRING

92081-112

$5.37

4

PIN

92043-076

$11.22

5

PLATE,SIFT DRM POSITN

14014-1001

Unavailable

6

SCREW,CSK,6X16

92009-1007

Unavailable

7

SWITCH,NEUTRAL

13151-5002

Unavailable

8

CIRCLIP-TYPE-C,30MM

480J3000

$4.67

9

CAM-CHANGE DRUM

13145-1058

$22.71

10

ROLLER,4X6

610A0406

$3.29

11

DRUM ASSY,CHANGE

13239-1001

Unavailable

11

DRUM ASSY,CHANGE

13239-1012

Unavailable

12

PIN,DOWEL,4X15.8

92042-014

$0.46

13

PLATE,SHIFT DRUM PIN

13142-016

Unavailable

14

SCREW-PAN-CROS,6X14

220B0614

$1.14

15

PIN-COTTER,3.0X20

550D3020

$1.32

16

PIN,DOWEL,8X18

92042-021

$8.75

17

FORK,SHIFT,4TH&TOP

13140-1002

Unavailable

18

ROD,SHIFT

13209-022

Unavailable

19

FORK,SHIFT,LOW

13140-1001

Unavailable

20

SHIFT FORK,2ND 3RD

13140-067

Unavailable

21

DAMPER,CHANGE PEDAL

13157-004

Unavailable

22

PEDAL ASSY,GEAR SHIFT

13242-017

Unavailable

23

BOLT-UPSET,6X20

112G0620

Unavailable

24

SPRING,CHG PEDL RTN

92083-021

Unavailable

25

BOLT,RETURN SPRING

92001-1401

$4.17

26

LEVER COMP,CHNG SHAFT

13161-1001

Unavailable

27

SPRING,CHANGE LEVER

92081-076

$4.14

28

PLATE,GEAR SHIFT LEV

13169-011

Unavailable

29

SCREW-PAN-CROS,6X16

220B0616

Unavailable

30

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

31

BEARING-NEEDLE,37BTM4312

92046-051

$23.59
